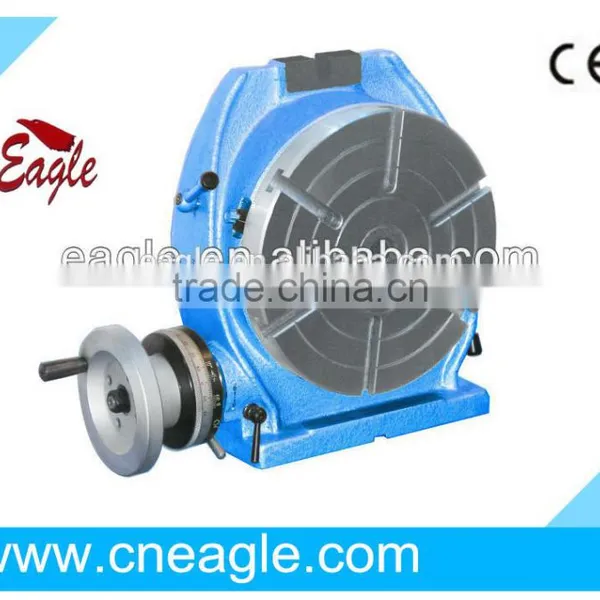

Eagle Vert./hor. Rotary Tables

Eagle Vert./hor. Rotary Tables thumbnail-1
Eagle Vert./hor. Rotary Tables photo-1
Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
TSL 160
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number TSL 160

Specifications

1. Vert./Hor. Rotary table
2. High quality, competitive price
3.Various types



Product Description



Type Size (mm/in) MT d Ratio Net Item No
weight
D H A B C E F kg/lbs
TSL160 160 85 196 242 125 10 12 No.3 25 1:90 23 531024
6.3 3.35 7.72 9.53 4.92 0.39 0.47 0.98 50.7
TSL200 200 100 236 285 150 12 14 No.3 30 1:90 30.5 531026
7.87 3.94 9.29 11.22 5.91 0.47 0.55 1.18 67.2
TSL250 250 110 286 328 170 12 14 No.3 30 1:90 44 531028
9.84 4.33 11.26 12.91 6.69 0.47 0.55 1.18 96.9
TSL320 320 120 360 410 210 14 18 No.4 40 1:90 75 531030
12.6 4.72 14.17 16.14 8.27 0.55 0.71 1.57 1165.4
TSL400 400 150 450 525 260 14 18 No.4 40 1:90 145 531032
15.75 5.91 17.72 20.67 10.24 0.55 0.71 1.57 319.4
ACCURACY
No. Item Tolerance (mm/in)
TSL160 TSL200
TSL250
TSL320 TSL400
1 Flatness of table surface (No allowing convex) 00:00.
11.81:0.0006
2 Axial run-out of table surface 0.15
0.0006
3 Parallelism between table surface and bottom surface 00:00.
111.81:0.0008
4 Radial run-out of center line of spindle taper hole (b: far form table face 100/4) a)0.010
0.0004
b)0.020
0.0008
5 Parallelism between center line of spindle and supporting face for vertical mounting 0.03
0.0012
6 Parallelism between center line of spindle and flank of locating key for vertical mounting 0.02
0.0008
7 Parallelism between conjunctive line of centers of table and tailstock or 0.02
0.0008
8 Parallelism between conjunctive line of centers of spindle and tailstock corresponding to locating flank of locating key for vertical mounting 0.02
0.0008
9 Dividing accuracy 60"
