Eagle Milling Machine Dividing Head

Eagle Milling Machine Dividing Head thumbnail-1
Eagle Milling Machine Dividing Head photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
UDH80~160B
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number UDH80~160B

Specifications

1. Universal dividing machine
2. Suitable for milling machines,grinding machines,drilling machines and planer etc







Product Description





Universal Dividing Head

1,The universal dividing head, Type UDH is one of the most important attachment for milling machine. With the help of this dividing head, the workpiece held between centers, or on a chuck can be rotate to any angle as desired and the periphery of a work piece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute, spur gear, spiral gear, spiral flute. Archimedean cam, helical flute and etc

2,The dividing head is equipped with a face plate that can be mounted onto the spindle nose. The work piece can be mounted on the face plate,thus,cutting can be carried out on 4-sides of a work piece

3,The universal dividing head, type UDH 100A, UDH 125A, UDH 160A is the same as UDH 80 of the structures, and the operation handle is setted on the left.

4,UDH 125B,  UDH 160B is designed for the consumers special needed, the shafting is improved to support heavy load.



Main specification

Items UDH 80 UDH 100 UDH 125 UDH 160
UDH 100A UDH 125A UDH 160A
  UDH 125B UDH 160B
Center height (mm/in) 80 100 125 160
3.15 3.94 4.92 6.3
Tilting angle of the spindle ≥ 95° ; ≥ 5°
Rotating angle of the spindle for one complete 9°
revolution of the dividing handle
Min. value of the vernier 10"
Worm gear ratio 1:40
Diameter of spindle register taper (mm/in) Φ36.541 Φ41.275 Φ53.975
Φ1.441 Φ1.63 Φ2.13
Spindle taper bore (Morse) MT NO.3 MT NO.4
Width of the locating key (mm/in) 14 18
0.55 0.71
Hole No. of hole plate First Face 24, 25, 28, 30, 34, 37, 38, 39, 41, 42, 43
Second Face 46, 47, 49, 51, 53, 54, 57, 58, 59, 62, 66
Module of change gears (mm/in) 1.5 2
0.06 0.08
Teeth No. of change gears 25, 25, 30, 35, 40, 50, 55, 60, 70, 80, 90, 100
Individual indexing error of the spindle for one 60" ±45"
complete revolution of dividing handle
Accumulative indexing error in any each of ±1'
the four quadrants
Max. bearing (kg) 80 100 130 130
Net weight (kg) 36 67(63) 110 (104) 130 (120)
Gross weight (kg) 45 79 (75) 126 (120) 149(139)
Case dimensions (mm) 542×403×220 616×465×265 635×530×310 710×535×342
Item No 521010 521012     521011 521014     521013     521015 521016   521017   521023

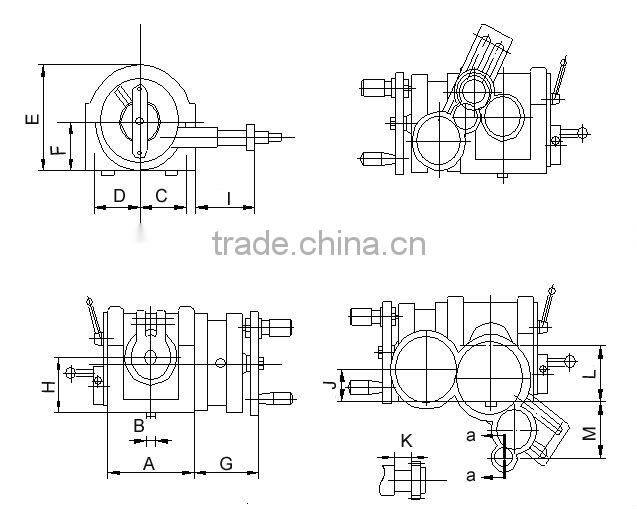

  Installation sketch and dimension



Eagle milling machine dividing head

Installation sketch and dimension:



  UDH 80 UDH 100 UDH 125 UDH 160
A 139 162 209 209
B 14 14 18 18
C 77 102 116 116
D 73 87 98 98
E 147 186 224 259
F 77 95 117 152
G 98 116 120 120
H 80 100 125 160
I 106 93 103 103
J 43 54.7 68.5 68.5
K 30 30 34.5 34.5
L 60 100 100 100
M 80 100 125 160

Accessories   Specially ordered
Tailstock   Face plate
Center
Carrier
Change gear bracket
Change gears Qty.12
Jack
Hole plate
Flange
3-jaw chuck
