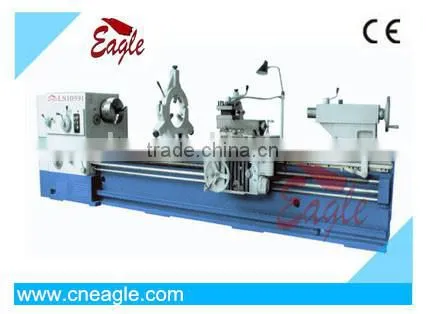

Big Bore Horizonta Lathe

Name: Big Bore Horizonta Lathe
Brand: eagle
SKU: 140923852
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Shandong, China

Brand Name eagle

Model Number LS10591

Specifications

1).CE standard
2).Max. swing over bed 910mm
3).Distance between centers 1000~3000mm
4).Removable gap

Bench lathe:LS10080

Feature:

The surface of the bedways is supersonic frequency.

Model	Unit	LS10591×1500	LS10591×2000	LS10591×3000
Max. swing over bed	mm	910
Max. swing over cross slide	mm	580
Max. swing over gap	mm	1100
Max. length of workpiece	mm	1500	2000	3000
Spindle nose		D-11
Spindle bore	mm	Φ104
Taper of bore	mm	Φ120mm 1:20
Number of speeds		18
Range of speeds	r.p.m	5.4-720
Metric Range/No		1~240mm/50
Inch Range/No		14~1t.p.i/26
D.P. range/No		0.5~1 D.P/26
Module Range/NO.		0.5-120mm/53
Number of longitudinal feeds		64
Range of longitudinal feeds 1 :1	mm/r	0.1~1.52
Range of longitudinal feeds 16:1	mm/r	1.6~24.3
Number of change gears	mm/r	0.06~0.912
Number of cross feeds		64
Range of cross feeds		Half of longitudinal feeds
External diameter	mm	100
Taper of bore		M.T.No.5
Max. Travel	mm	250
Max. cross displacement of tailstock	mm	15
Pitch of longitudinal ball screw	mm	12
Max. travel of top slide	mm	200
Max. swivel of middle tool post	mm	90
Max. travel of cross slide	mm	550
Max. size of tool shank (W×H)	mm	32×32
Power of main motor	kw	11
Rapid feed motor power	kw	1.1
Coolant pump power	w	90
Overall dimensions (L×W×H)	mm	3660×1450×1630	4155×1450×1630	4630×1450×1630
Net weight	kg	4950	5250	5900
Item NO.		115084	115085	115086
