Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > GMD 250/250B Manual Surface Grinder

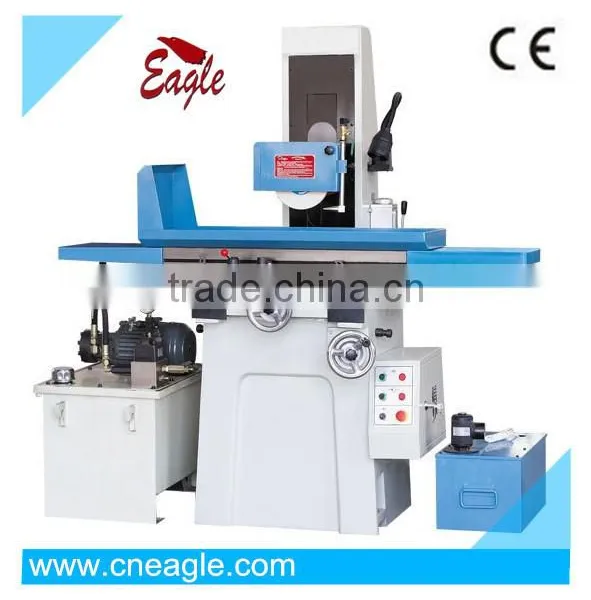

GMD 250/250B Manual Surface Grinder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
Used
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GMD 200/GMD 200B Manual Surface GrinderNegotiableMOQ: 1 Set -
GMD 180/GMD 180A Manual Surface GrinderNegotiableMOQ: 1 Set
-
GM150/GM150A/GM200 Manual Surface GrinderNegotiableMOQ: 1 Set
-
China Eagletools Precision Surface GrinderNegotiableMOQ: 1 Set
-
UNIVERSAL TOOL AND CUTTER GRINDER GW-1NegotiableMOQ: 1 Set
Condition
Used
Type
Surface Grinding Machine
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
eagle
Model Number
GMD 250/250B
Power(W)
1.5kw
Specifications
GMD 250/250B Manual Surface Grinder1.Table Size (L*W):540*250mm
2.Max. size to be Ground( L*W) :540*250mm
GMD 250/250B Manual Surface Grinder
| Manual Surface Grinder | ||||
| GMD:Manual transmissions on X,Y,Z axes | ||||
| GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis | ||||
| GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis | ||||
| GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes | ||||
| Model | Units | GMD 250 | GMD 250B | |
| Table Size (L×W) | mm | 540×250 | ||
| Max. size to be Ground ( L×W) |
mm | 540×250 | ||
| Number of T -Slot | mm | 1×14 | ||
| Distance From Table Surface To Spindle Center | mm | 450 | ||
| Wheel Size (dia.×width×bore ) | mm | 200×20×31.75 | ||
| Spindle Speeds | r/min | 2850 | ||
| Cross Feed on Table | Auto feed | mm/min | --------- | 0.1~7.5 |
| Rapid speed | mm/min | --------- | 50~500 | |
| Feed of handwheel | mm | 0.02/div 2.5/rev |
||
| Vertical Feed On Handwheel | mm | 0.01/div 1.25/rev |
||
| Longitudinal Speed of Table | m/min | ------ | 3-20 | |
| Spindle Motor | kw | 1.5 | ||
| Cooling Motor | w | 40 | ||
| Hydraulic Motor | kw | ------ | 1.5 | |
| Working Pressure | Mpa | ------ | 3 | |
| Gross/Net weight | kg | 967/867 | 1000/900 | |
| Machine Size (L×W×H) | mm | 1680×1220×1720 | ||
| Packing Size (L×W×H) | mm | 1120×1400×1940 | 1630×1250×1940 | |
| Item NO. | 121210 | 121212 | ||
| Standard accessories | ||||
| Tool box | ||||
| Balance stand and balance bar | ||||
| flange wrench | ||||
| screw drive | ||||
| Balance screw | ||||
| open-end wrench | ||||
| hexagonsocket wrench | ||||
| wheel dresser | ||||
| diamond | ||||
| Mechine cushions | ||||
| wheel balancing device | ||||
| chuck | ||||
