Home > Products > Grinding Machine > GMD 200/GMD 200B Manual Surface Grinder

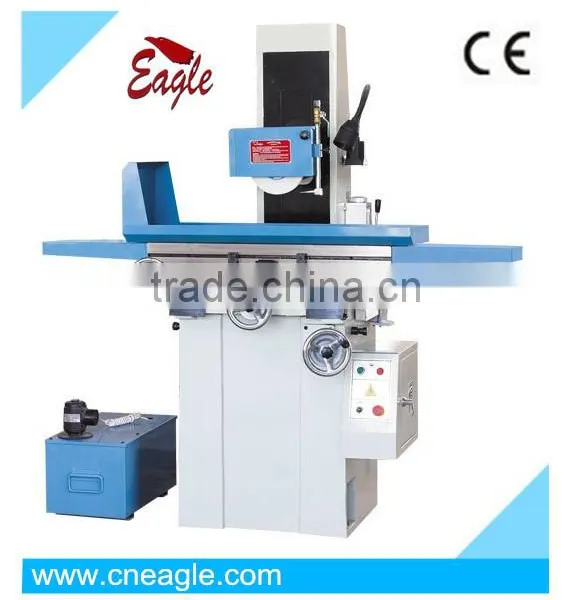

GMD 200/GMD 200B Manual Surface Grinder
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A
You May Like
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | Used | Type: | Surface Grinding Machine | CNC or Not: | Normal |
Place of Origin: | Shandong, China | Brand Name: | eagle | Model Number: | GMD 200/GMD 200B |
Power(W): | 1.1kw |
Product Description
Specifications
GMD 200/GMD 200B Manual Surface Grinder1.Table Size (L*W):480*200mm
2.Max. size to be Ground( L*W) :520*220mm
GMD 200/GMD 200B Manual Surface Grinder
Manual Surface Grinder | ||||
GMD:Manual transmissions on X,Y,Z axes | ||||
GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis | ||||
GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis | ||||
GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes | ||||
Model | Units | GMD 200 | GMD 200B | |
Table Size (L×W) | mm | 480×200 | ||
Max. size to be Ground ( L×W) | mm | 520×220 | ||
Number of T -Slot | mm | 1×14 | ||
Distance From Table Surface To Spindle Center | mm | 450 | ||
Wheel Size (dia.×width×bore ) | mm | 200×20×31.75 | ||
Spindle Speeds | r/min | 2850 | ||
Cross Feed on Table | Auto feed | mm/min | --------- | 0.1~7.5 |
Rapid speed | mm/min | --------- | ||
Feed of handwheel | mm | 0.02/div 2.5/rev | ||
Vertical Feed On Handwheel | mm | 0.01/div 1.25/rev | ||
Longitudinal Speed of Table | m/min | --------- | 3-20 | |
Spindle Motor | kw | 1.1 | ||
Cooling Motor | w | 40 | ||
Hydraulic Motor | kw | --------- | 1.5 | |
Working Pressure | Mpa | --------- | 3 | |
Gross/Net weight | kg | 800/700 | 850/750 | |
Machine Size (L×W×H) | mm | 1680×1140×1800 | ||
Packing Size (L×W×H) | mm | 1140×1240×1940 | 1630×1140×1940 | |
Item NO. | 121206 | 121208 | ||
Standard accessories | ||||
Tool box | ||||
Balance stand and balance bar | ||||
flange wrench | ||||
screw drive | ||||
Balance screw | ||||
open-end wrench | ||||
hexagonsocket wrench | ||||
wheel dresser | ||||
diamond | ||||
Mechine cushions | ||||
wheel balancing device | ||||
chuck |
