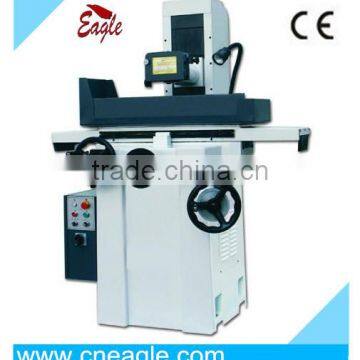

China Eagletools Precision Surface Grinder

Name: China Eagletools Precision Surface Grinder
Brand: eagle
SKU: 140923768
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

Type:

Other, Precision Surface Grinder

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Type Other, Precision Surface Grinder

CNC or Not Normal

Place of Origin Shandong, China

Brand Name eagle

Model Number china eagletools Precision Surface Grinder

Power(W) 1.5kw

Specifications

china eagletools Precision Surface Grinder
1.Max. width to be groud: 165&220mm
2.Max. length to be groud :470&520mm

china eagletools Precision Surface Grinder

Surface Grinder

Model		Unit	GM 150A	GM 200A
Max. width to be groud		mm	165	220
Max. length to be groud		mm	470	520
Max. height to be groud		mm	350	350
Tabel size		mm	150×460	200×520
Permanent magnetic chuck size (optional)		mm	150×400	200×450
Max.longitudinal travel of the table		mm	500	570
Max.cross travel of the table (mm)		mm	200	250
Max.distance from spindle center to table surface		mm	450	450
Vertical movement of hand feed	per rew.	mm	2	2
Vertical movement of hand feed	per div.	mm	0.005	0.005
Grinding wheel size (OD×W×ID)		mm	200×20×31.75	200×20×31.75
Spindle speed		r/min
Power of spindle head		kw	1.5	1.5
Max.load capacity(include permanent magnetic chuck)		kg	92	140
Machine weight		kg	1000	1120
Machine dimension (L×W×H)		mm	1330×1150×1711	1446×1391×1766
Package dimension (L×W×H)		mm	1670×1557×1930	1670×1700×1985
Item NO.			121011	121016

Standard accessories				Optional accessories
Wheel	1pc	Wheel dresser	1pc	Permanent magnet plate	1set
Wheel balance bar	1pc	Level wedge and screw	1set	Dust collector	1set
Hoisting set	4pcs	Tool box and special wrench	1set	Wheel balance stand	1set
Monkey spanner	1pc	Illumination lamp	1set	Cooling and dust collecting equipment	1set
Wheel chuck	1pc			Cooling equipment	1set
