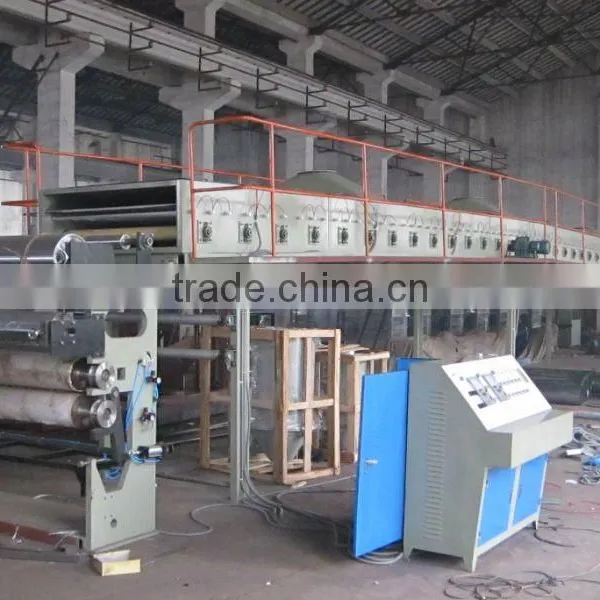

China Cheaper 1000mm to 2000mm Dry Laminating Machine

Specifications

Laminating machine
1.air shaft unwind and rewind
2.BOPP,fabric ,paper and so on
3.glue water
4.laminating machine

A.machine technique parameter

1.Web for laminating:BOPP,PET,NYLON,CPP,CPE,AL,PAPER AND SO ON

2 Glue water:water-solubility  glue water

3. Web layer:2 lays

4. Width for web:600-1200mm,Roller width:1280mm

5. Rewind diameter:600mm

6. Unwind diameter:600mm

7. Oven temp:50°C-100°C(Auto- control)

8. Laminating temp:30°C-100°C(Auto- control)

9. Total power:85kw

10. Dimension:8500×1700×2500mm

11. Total weigh:6500kg

B.machine structure

 Unwind system

1. No.1Unwind frame: singlehanded, Photo electricity EPC, Rectify range ±50mm,precision: ±0.5mm

2. No.2Unwind frame: singlehanded, EPC by manual

3. Tension: Magnetic powder, Auto control ,range 0-200N/M

4. Pneumatic roller: 3”, Unwind

Glue water coating system

1. Anilox roller length: 1300mm,165mm

2. Press roll: φ120mm nitride butadiene rubber, hard 70-75 degree;

3. Glue water Pan: Stainless steel Adjustable by handle

4. Blade: Three position control Remove type ,move range ±10mm

5. Press roll: Move by air cylinder Air pressure adjustable

6. Drive motor: Inverter control

7. Guide roller: Hard metal 1080mm, 100mm

Oven system

1. Oven length: 8500mm Three temp zone

2. Oven temp: 0-100°CDigital type

3. Infrared heating: Stainless steel heating Reflect by stainless steel board 60kw

4. Blower power: 1.5kw 3pcs

5. Guide roller motor: 1.5kw

6. windy system: Recycle

7. Oven structure: Keep temp

8. Guide roll move: Step belt or chain

laminating system

1. Laminating roll: 1280mm,320mm Surface hardening and tempering, plating gard chrome

2. Laminating roll: 1280mm,220mm Silicon rubber ,hard :80 degree

3. Roll heating: Electric 8kw ,digital control

4. Remove motor: 5.5kw Inverter control

5. Rolls move: Air cylinder

Rewind system

1.Rewind diameter: 600mm

2.Pneumatic roll: 76mm

3.Tension control: Torque motor

4.EPC: By manual
