Overloading cow leather processing drum
- 20000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
supply leather tannery Overloading Wooden drum for Soaking/Liming/Tanning
-
supply Overloading Wooden Drum Soaking/Liming/Tanning
-
supply tanning dyeing soaking wooden drum
-
supply tannery leather processing wooden drum
-
new model leather process PP drum manufacturing
-
cow cattle buffalo 3 roller continues through feed leather sammying machine
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | DUNCHENG | |
| Model Number | cow leather processing drum | Type | Other, cow leather processing drum | |
| Voltage | 380v | Power(W) | 30kw | |
| Dimension(L*W*H) | 3x3m | Weight | 8t | |
| Certification | ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

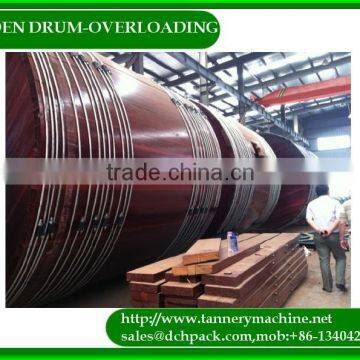

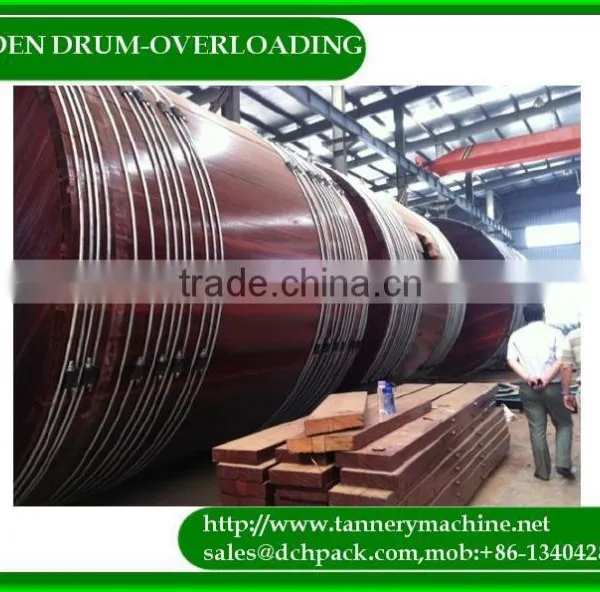

Leather wooden drum key point
aking ,liming,tanning, retanning ,dyeing
2.40-45% space for use
3.EKKI wooden
4.stainless steel door
Normal drum key point
aking ,liming,tanning, retanning ,dyeing
2.40-45% space for use
3.imported Africa IKKI original nature grow tree
4.dry as nature beside sea
5.original wooden diameter enough big for ensure all drum material keep completely group
6.drum running as shaft droved by motor and gear box
7.water recycle by Italy special technical
pletly running shaft
9.stainless steel door
Normal drum Specification :
D(cm) | 200 | 220 | 220 | 240 | 250 | 250 | 300 | 300 |
L(cm) | 200 | 200 | 220 | 210 | 200 | 220 | 280 | 300 |
Speed(rpm) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 5-7 | 5-7 | 5-7 |
Door size(mm) | 480x600 | 480x600 | 480x600 | 480x600 | 480x600 | 480x600 | 700x700 | 700x700 |
Total Space(m3) | 4.7 | 5.7 | 6.4 | 7.3 | 8.4 | 9.7 | 16.2 | 17.3 |
Max loading space(m3) | 2.1 | 2.6 | 2.9 | 3.3 | 3.8 | 4.4 | 7.3 | 7.8 |
Power (kw) | 4 | 4 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Normal drum parts brand and quality:
Inverter | TAIWAN national brand |
Gear box | China national brand |
motor | China national brand |
Electric and all running control | China national brand |
Normal drum warrantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
