Supply Tanning Dyeing Soaking Wooden Drum

FOB Price

US$ 12,500 - 24,000 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Place of Origin	Jiangsu, China	Brand Name	DUNCHENG
Model Number	DCH	Type	Other, drum
Voltage	380v	Power(W)	15kw
Dimension(LWH)	3.5x3.5m	Weight	11t
Certification	ce	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

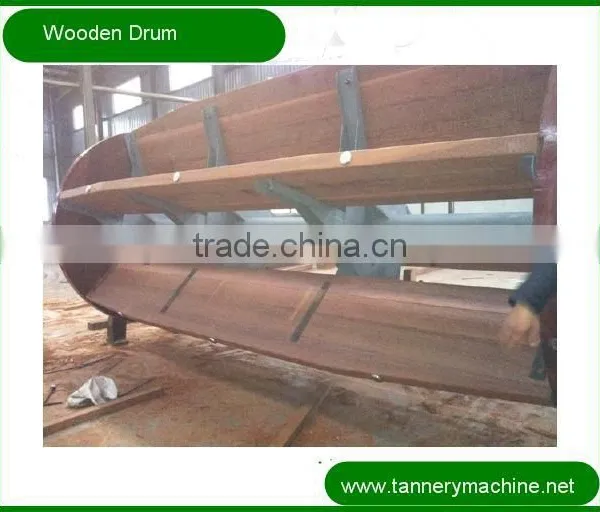

soaking wooden drum
1.retanning or dyeing
2.special for sheep goat small leather
3.EKKI wooden
4.best quality lowest price

Product Description

overloading drum key point

aking ,liming,tanning, retanning ,dyeing

2.80% space for use

3.Big capacity ,specially for cow

4.imported Africa IKKI original nature grow tree

5.dry as nature beside sea

6.original wooden diameter enough big for ensure all drum material keep completely group

7.drum running as shaft droved by motor and gear box

8.water recycle by Italy special technical

pletly running shaft

10.stainless steel door

11.inside only paddle

12.inside special treatment ensure smooth

overloading drum Specification :

Model	Useful	Total space (LTS)	Loading weight (KG)	Speed(RPM)	Power (KW)
D4.2x4.5m	Liming or tanning	52500	18000	Stepless speed within 2 rpm	37
D4x4m	Liming or tanning	42600	15000	Stepless speed within 2 rpm	30
D3.5x3.5m	Liming or tanning	28300	8000	Stepless speed within 3 rpm	22
D3.5x3.5m	Retaining or dyeing	28300	4000	Stepless speed within 6 rpm	22
D3x2.8m	Liming or tanning	17000	5000	Stepless speed within 3 rpm	15
D3x2.8m	Retaining or dyeing	17000	2000	Stepless speed within 8 rpm	15

overloading drum parts brand and quality:

Inverter	TAIWAN national brand
Gear box	China national brand
motor	China national brand
Electric and all running control	China national brand

overloading drum warrantee time :

one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
