Tannery drum
- SHANGHAI
- T/T
You May Like
-
paddle
-
paddle for tannery machine
-
paddle for leather process machine
-
soaking limming tanning overloading normal leather wooden drum
-
Italy quality leather splitting machine sheep cow cattle wetblue lime or dry leather splitting machine
-
china leather splitting machine for split various wet and liming skin
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | DUNCHENG | |
| Model Number | DCH | Type | Other, drum | |
| Voltage | 380v | Power(W) | 15kw | |
| Dimension(L*W*H) | 3x3m | Weight | 8t | |
| Certification | ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

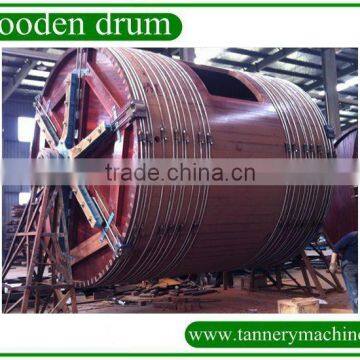

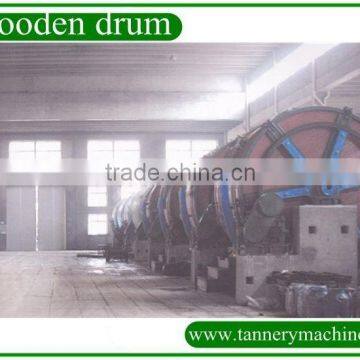

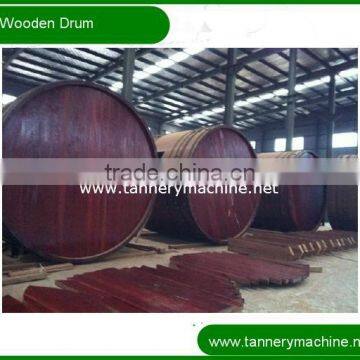

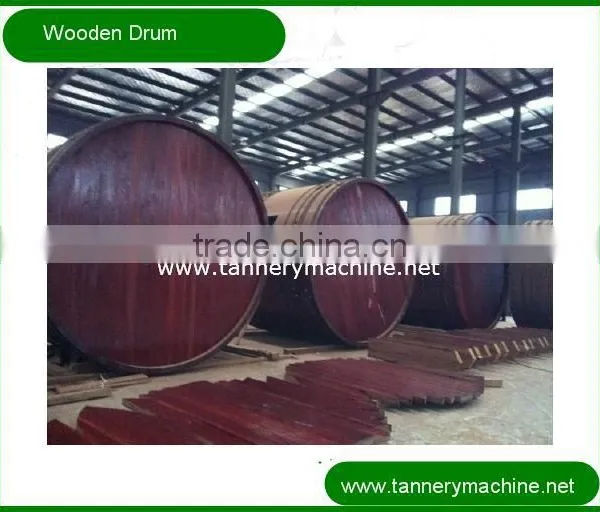

Tannery drum1. hanging wooden drum
2.tanning soaking liming and dyeing
3.imported EKKI wooden material
overloading drum key point
aking ,liming,tanning, retanning ,dyeing
2.80% space for use
3.Big capacity ,specially for cow
4.imported Africa IKKI original nature grow tree
5.dry as nature beside sea
6.original wooden diameter enough big for ensure all drum material keep completely group
7.drum running as shaft droved by motor and gear box
8.water recycle by Italy special technical
pletly running shaft
10.stainless steel door
11.inside only paddle
12.inside special treatment ensure smooth
overloading drum Specification :
Model | Useful | Total space (LTS) | Loading weight (KG) | Speed(RPM) | Power (KW) |
D4.2x4.5m | Liming or tanning | 52500 | 18000 | Stepless speed within 2 rpm | 37 |
D4x4m | Liming or tanning | 42600 | 15000 | 30 | |
D3.5x3.5m | Liming or tanning | 28300 | 8000 | Stepless speed within 3 rpm | 22 |
Retaining or dyeing | 4000 | Stepless speed within 6 rpm | 22 | ||
D3x2.8m | Liming or tanning | 17000 | 5000 | Stepless speed within 3 rpm | 15 |
Retaining or dyeing | 2000 | Stepless speed within 8 rpm | 15 |
overloading drum parts brand and quality:
Inverter | TAIWAN national brand |
Gear box | China national brand |
motor | China national brand |
Electric and all running control | China national brand |
overloading drum warrantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
