paddle

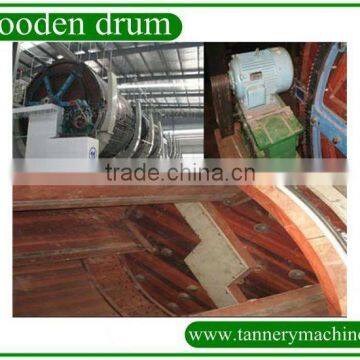

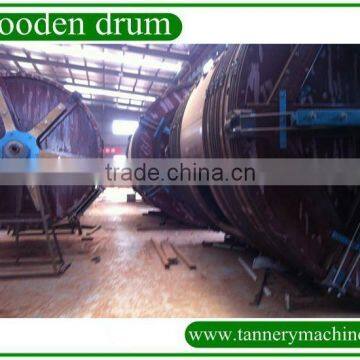

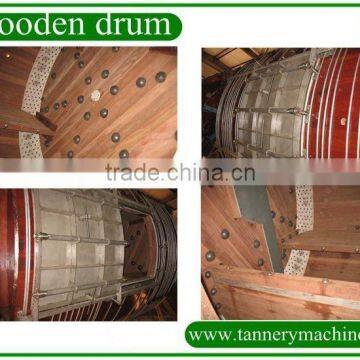

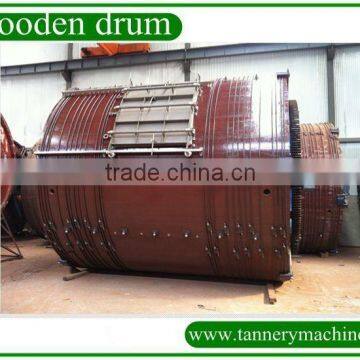

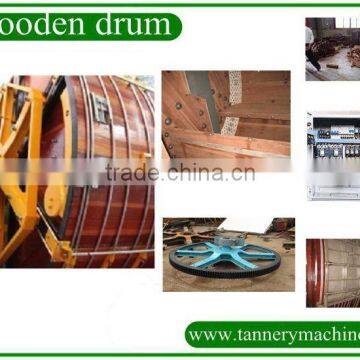

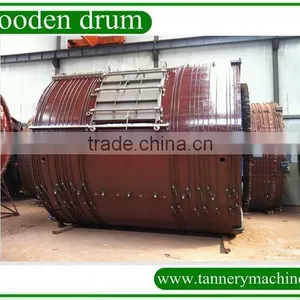

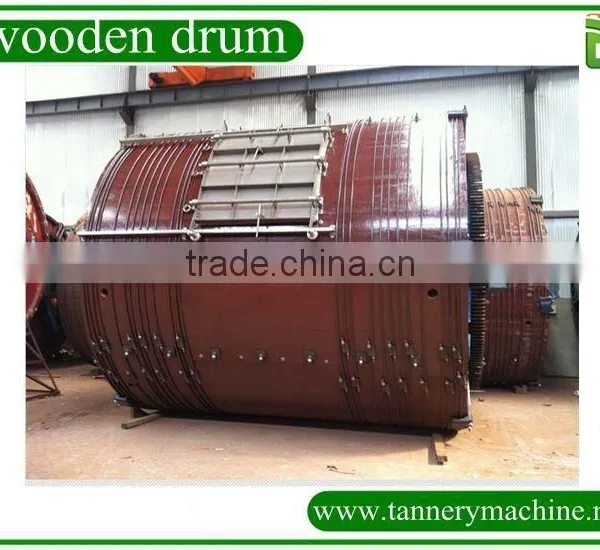

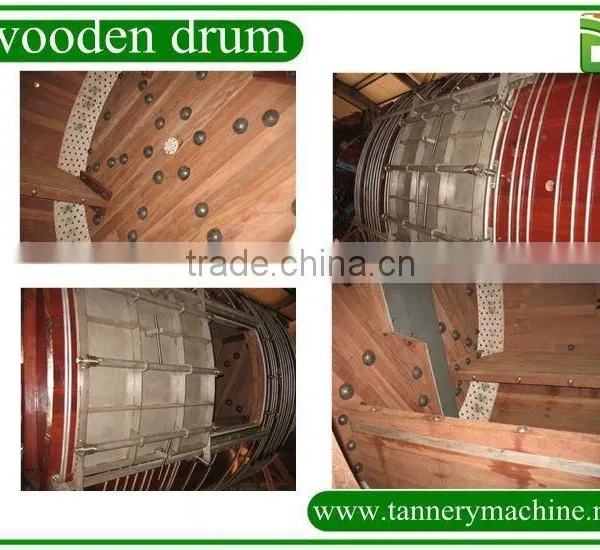

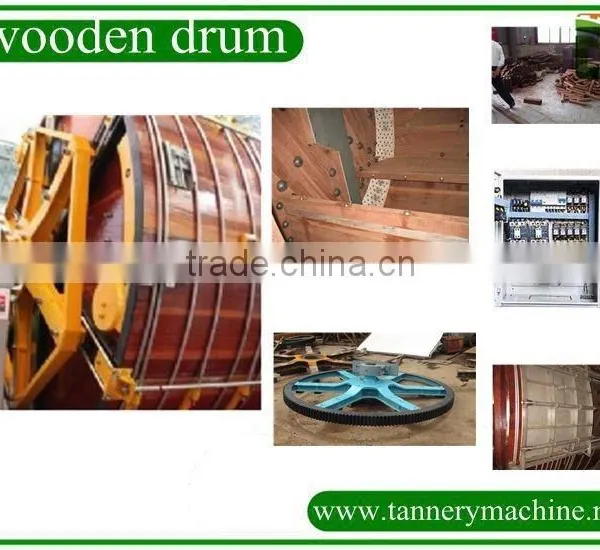

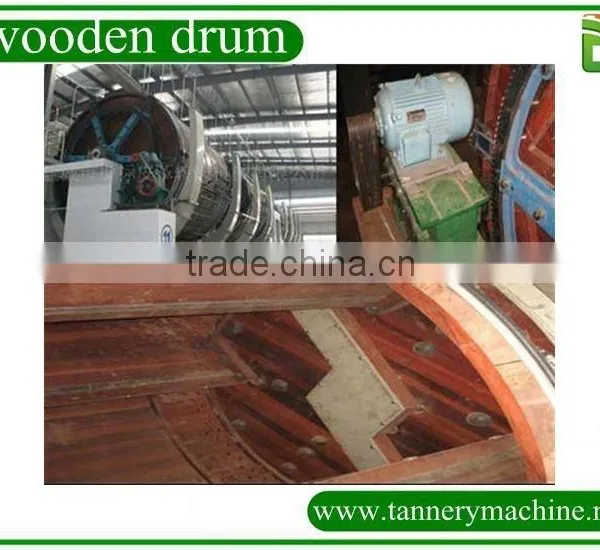

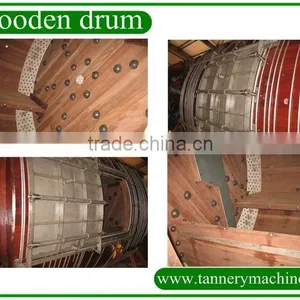

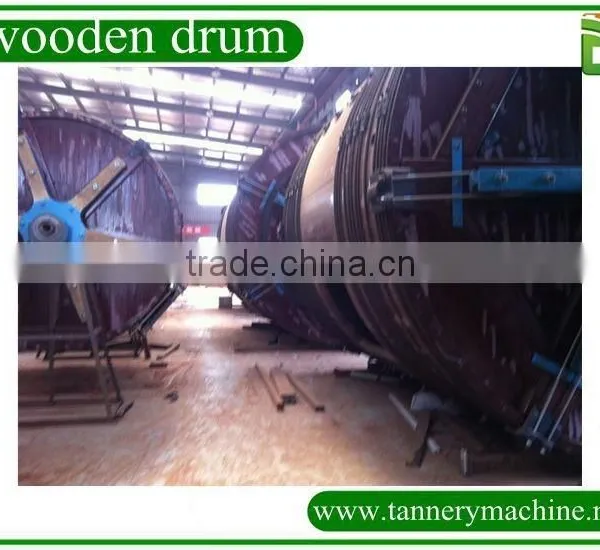

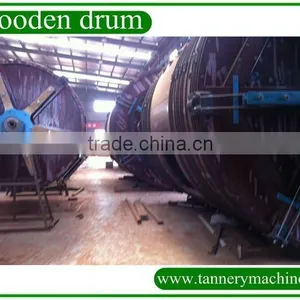

Hanging wooden drum is widely used in leather making industry for wet operations such as deg reasing, tanning, soaking, and dyeing of leathers of pork, ox, and goat. Also, it is suitable for dry operations such as milling, carding and rolling of napped leather, clothes and gloves leather, etc.
Technical parameters
specifications and series | D | 200 | 220 | 220 | 240 | 250 | 250 | 300 | 300 |
L | 200 | 200 | 220 | 210 | 210 | 220 | 280 | 300 | |
rotation speed of drum | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 5~7 | 5~7 | 5~7 | |
loading door’s specification (LXW)mm | 480×600 | 480×600 | 480×600 | 480×600 | 480×600 | 480×600 | 700×700 | 700×700 | |
total volume(m3) | 4.7 | 5.7 | 6.4 | 7.3 | 8.4 | 9.7 | 16.2 | 17.3 | |
Max. loading volume(m3) | 2.1 | 2.6 | 2.9 | 3.3 | 3.8 | 4.4 | 7.3 | 7.8 | |
motor(KW) | 4 | 4 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
specifications and series | D | 320 | 320 | 350 | 350 | 400 | 400 | 450 | 450 |
L | 280 | 300 | 300 | 350 | 350 | 400 | 400 | 400 | |
rotation speed of drum | 5~7 | 5~7 | 3~6 | 3~6 | 2~4 | 2~4 | 2~3 | 2~3 | |
loading door’s specification (LXW)mm | 800×800 | 800×800 | 800×900 | 900×900 | 1000×1000 | 1000×1000 | 1100×1100 | 1100×1100 | |
total volume(m3) | 18.5 | 20.0 | 24.1 | 28.5 | 38.1 | 43.8 | 52.3 | 59.5 | |
Max. loading volume(m3) | 8.3 | 9.0 | 10.9 | 12.8 | 17.1 | 19.7 | 23.5 | 26.8 | |
motor(KW) | 15 | 15 | 18.5 | 22 | 30 | 30 | 37 | 45 | |
paddle guarantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
paddle
paddle
paddle
