paddle for leather process machine
aking liming
2.imported wooden
3.big capacit small cost
Main technical parameters

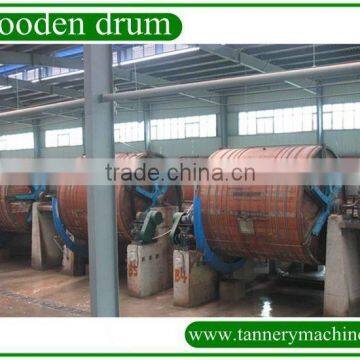

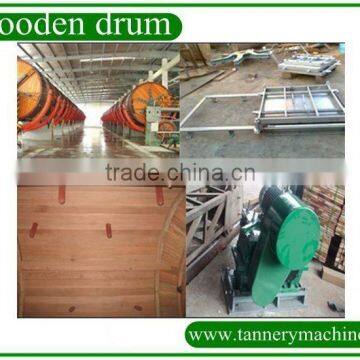

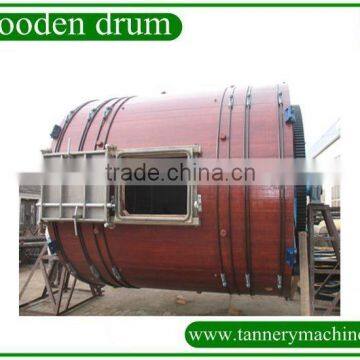

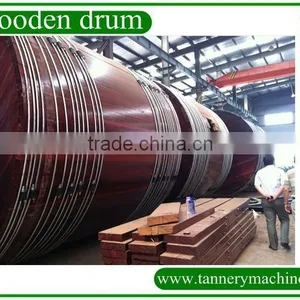

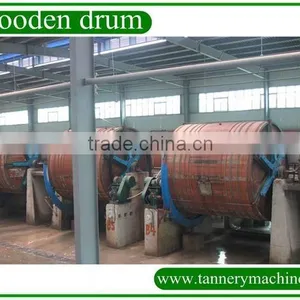

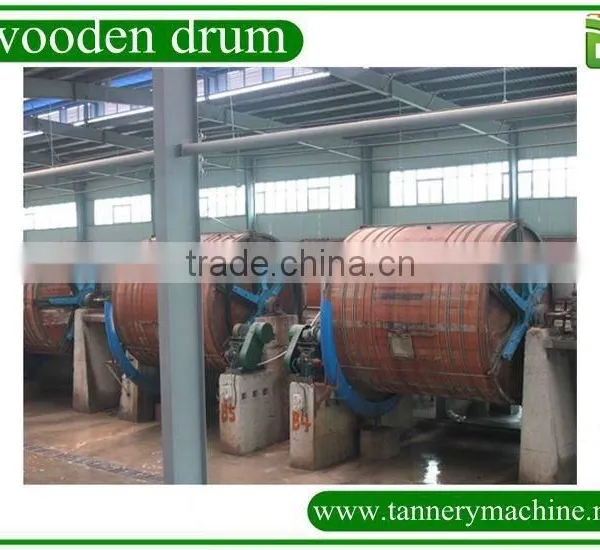

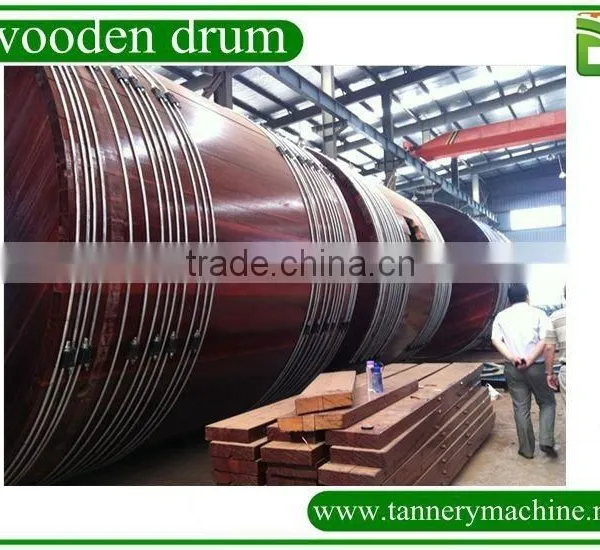

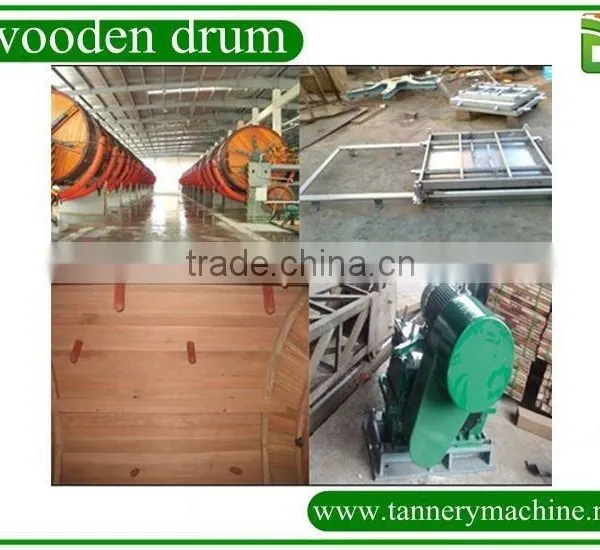

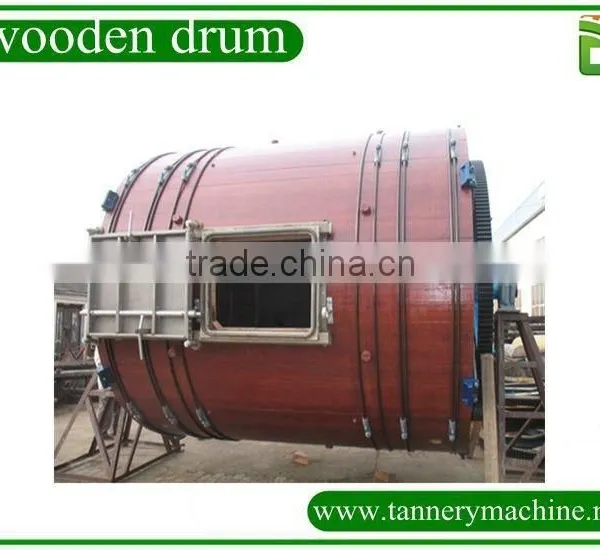

Hanging wooden drum is widely used in leather making industry for wet operations such as degreasing, tanning, soaking, and dyeing of leathers of pork, ox, and goat. Also, it is suitable for dry operations such as milling, carding and rolling of napped leather, clothes and gloves leather, etc.
Technical parameters
specifications and series |
D |
200 |
220 |
220 |
240 |
250 |
250 |
300 |
300 |
L |
200 |
200 |
220 |
210 |
210 |
220 |
280 |
300 |
|
rotation speed of drum |
8~12 |
8~12 |
8~12 |
8~12 |
8~12 |
5~7 |
5~7 |
5~7 |
|
loading door’s specification (LXW)mm |
480×600 |
480×600 |
480×600 |
480×600 |
480×600 |
480×600 |
700×700 |
700×700 |
|
total volume(m3) |
4.7 |
5.7 |
6.4 |
7.3 |
8.4 |
9.7 |
16.2 |
17.3 |
|
Max. loading volume(m3) |
2.1 |
2.6 |
2.9 |
3.3 |
3.8 |
4.4 |
7.3 |
7.8 |
|
motor(KW) |
4 |
4 |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
specifications and series |
D |
320 |
320 |
350 |
350 |
400 |
400 |
450 |
450 |
L |
280 |
300 |
300 |
350 |
350 |
400 |
400 |
400 |
|
rotation speed of drum |
5~7 |
5~7 |
3~6 |
3~6 |
2~4 |
2~4 |
2~3 |
2~3 |
|
loading door’s specification (LXW)mm |
800×800 |
800×800 |
800×900 |
900×900 |
1000×1000 |
1000×1000 |
1100×1100 |
1100×1100 |
|
total volume(m3) |
18.5 |
20.0 |
24.1 |
28.5 |
38.1 |
43.8 |
52.3 |
59.5 |
|
Max. loading volume(m3) |
8.3 |
9.0 |
10.9 |
12.8 |
17.1 |
19.7 |
23.5 |
26.8 |
|
motor(KW) |
15 |
15 |
18.5 |
22 |
30 |
30 |
37 |
45 |
|
paddle for leather process machine guarantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
paddle for leather process machine
paddle for leather process machine
paddle for leather process machine
