150A 48V AC to DC Charging Power Supply

Name: 150A 48V AC to DC Charging Power Supply
Brand: DORIK
SKU: 140913522
Availability: InStock

Ningbo DORIK Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

DORIK

Model Number:

DR-150A-48V

Payment & Shipping

Payment Methods:

Port of Shipment:

any china port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name DORIK

Model Number DR-150A-48V

Input Voltage AC 220V

Output Voltage 48V

Output Power 7200W

Output Frequency 20Khz

Output Current 150A

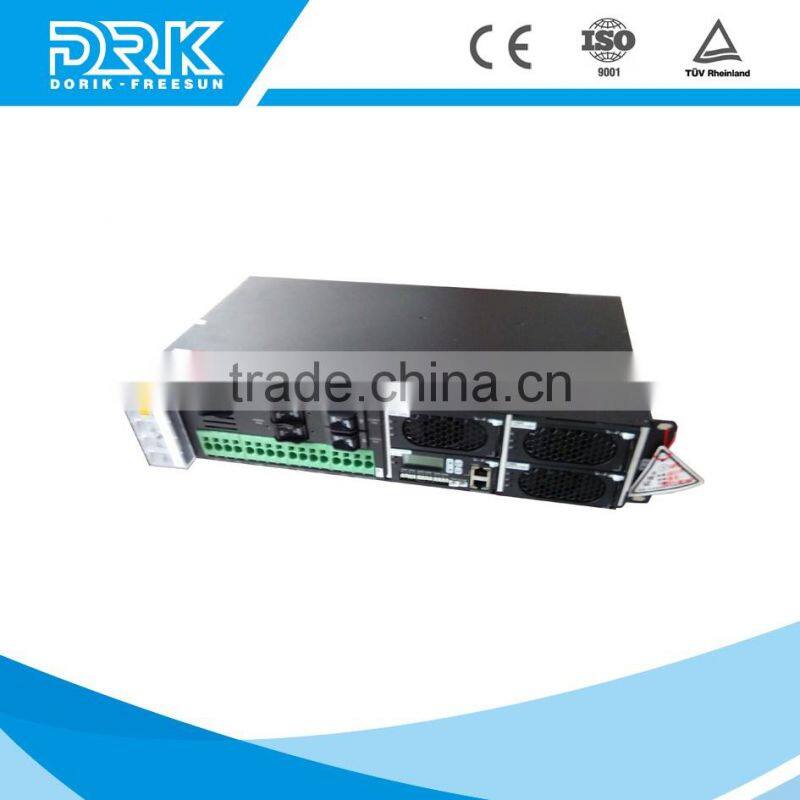

150A 48V AC to DC charging power supply

We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.

Advantage:

1) Small, light and high efficiency

2) High frequency pulse current output

3) Flexible use, simple operation

4) Complete protection function

Product Overviews

Product Parameters

Model No	DR-220V-48V 150AS
Output Current	150A
Output Voltage	48V
Charging Current	<50A
Feeding Current	<150A
AC Input Voltage	220V(support generator wave input)
AC Input Frequency	40-75HZ(support generator wave input)
Power Factor	Full Load≥0.98
Equalized Charging Output Voltage	56.2V
Floating Charging Output Voltage	53.6V
Voltage Protection Value	Low-voltage 41.8V;High-voltage 60V
Adjustable Range	±10V
Efficiency	≥90%
Dynamic Response Rate	20~80% load ,recovery time≤200ms
Telephone Weighted Noise	<3mV(range of 40MHZ)
Wide Band Noise Voltage	<50mv(3.4KHZ~150KHZ)
Wide Band Noise Voltage	<20mv(150KHZ~300KHZ)
MTBF	≥ 100000 hour
Environment Temperature	-25°C~55°C
Altitude	<=1500M
Size(mm)	482×420×133
Weight (kg)	32
Protection	input over and under voltage, input phase loss, output over-voltage, output over current, output short circuit, water pressure, overheat and driving protection
