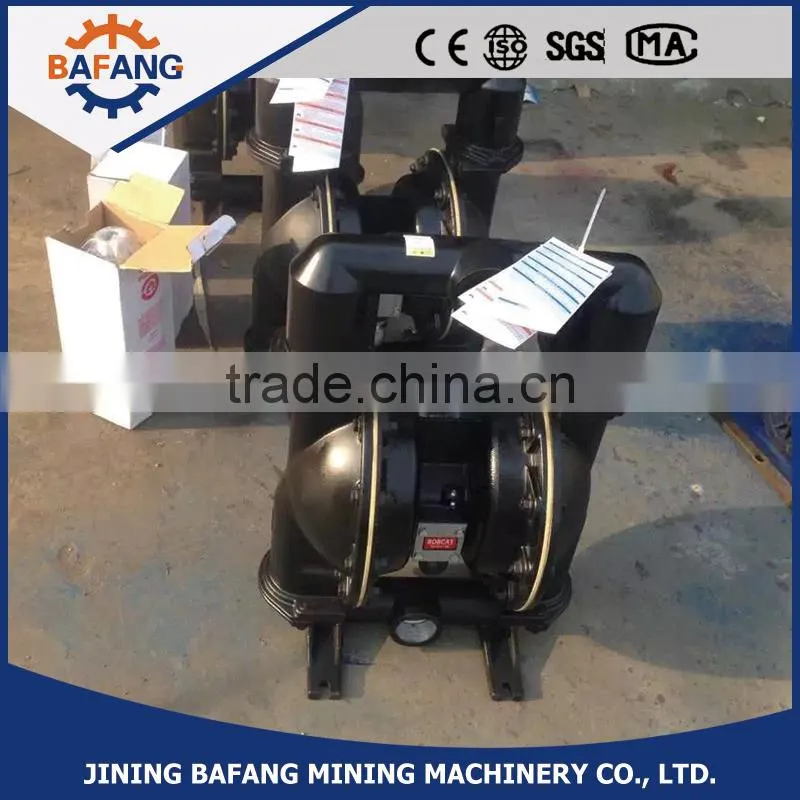

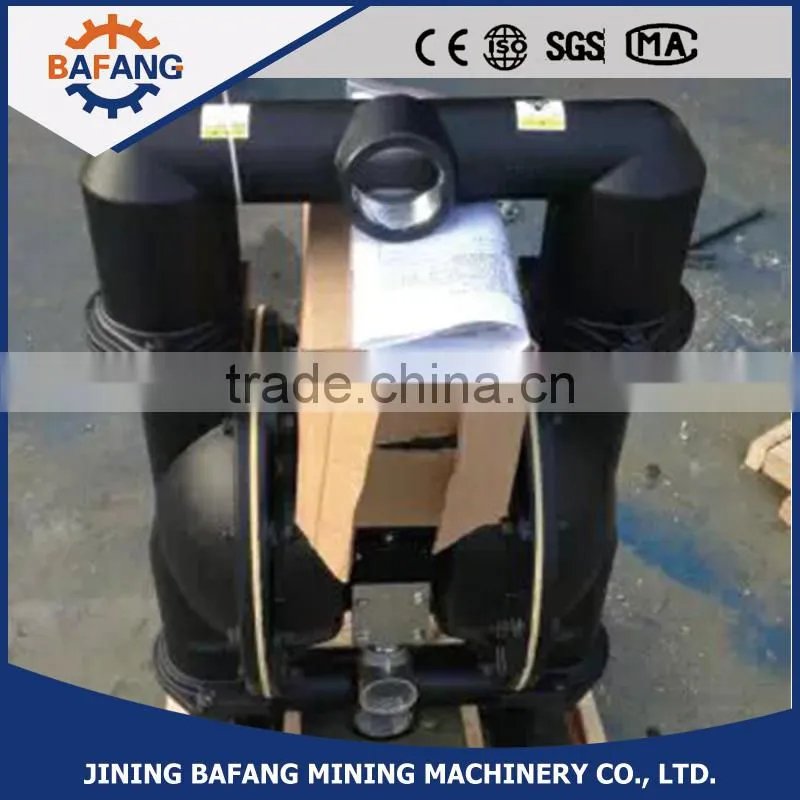

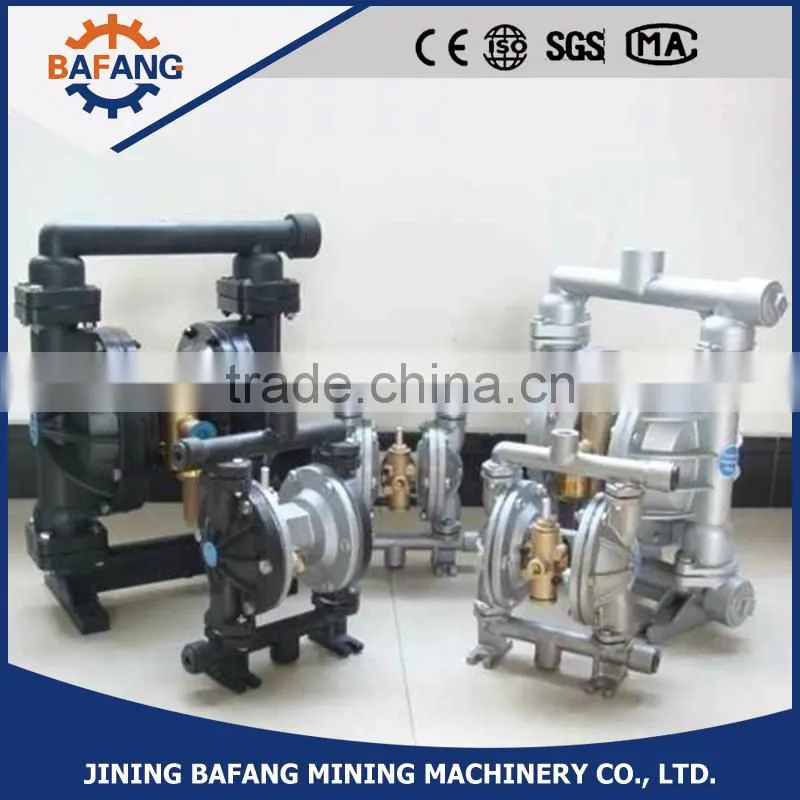

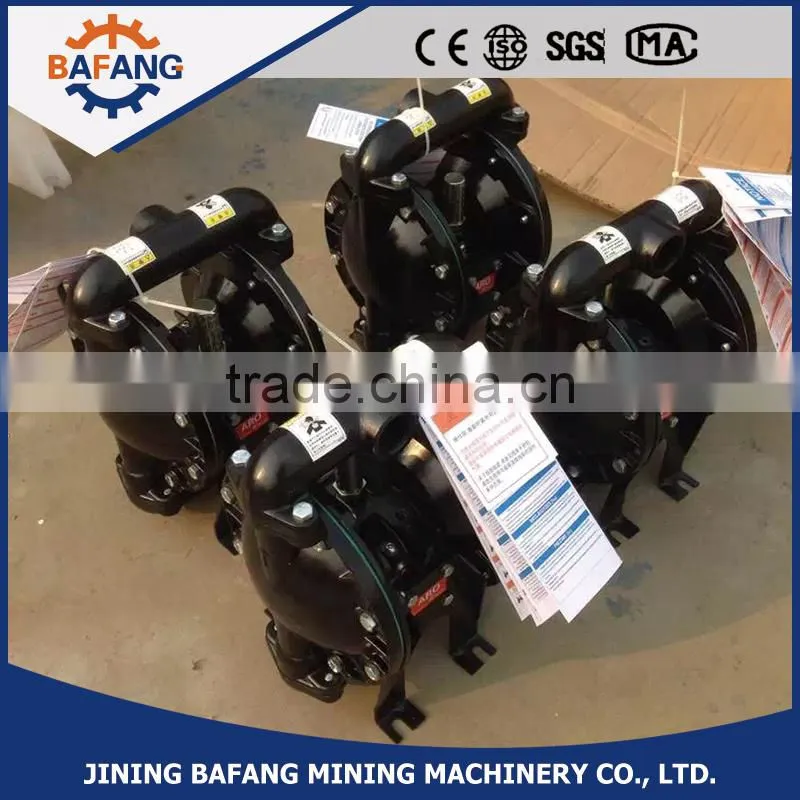

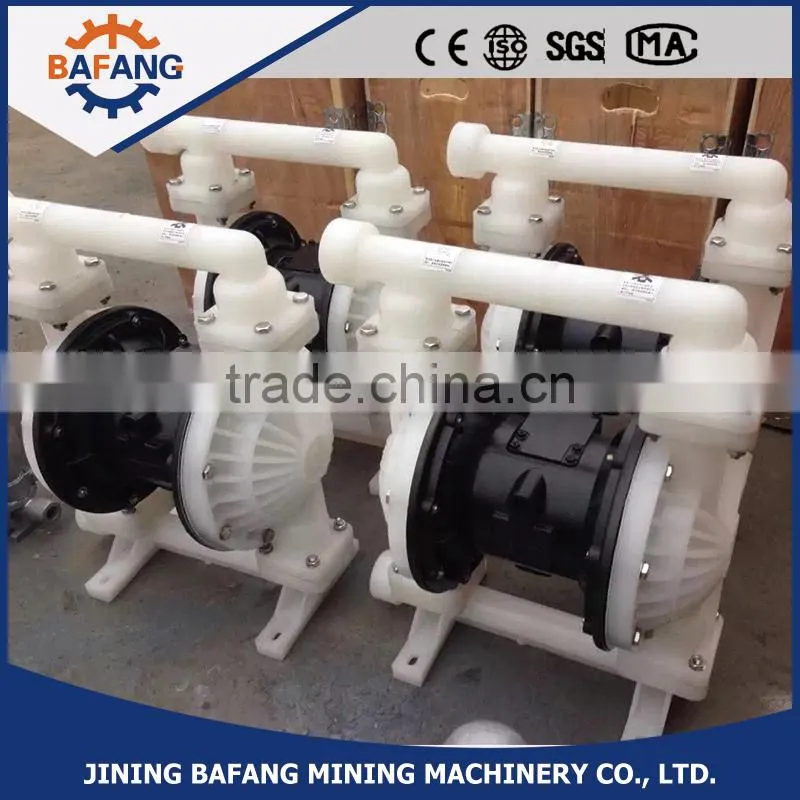

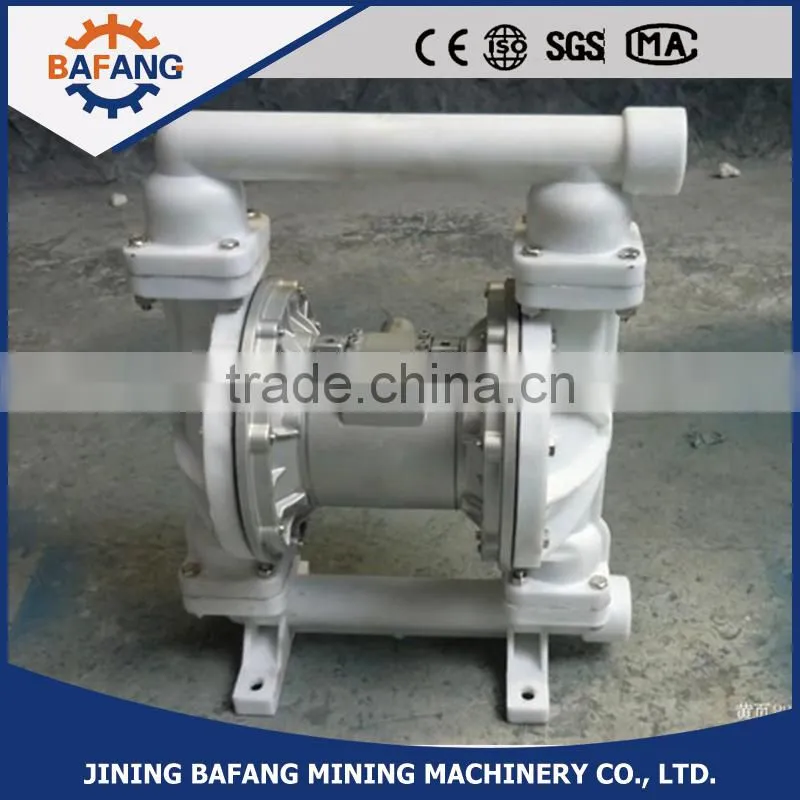

QBY-15 air operated double diaphragm pump
- 500 Piece / Pieces per Month
- qingdao
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shandong, China | Model Number: | QBY-15 | Structure: | Diaphragm Pump |
Usage: | Air Pump | Power: | Pneumatic | Standard or Nonstandard: | Standard |
Fuel: | Gasoline | Pressure: | High Pressure |
Product Description
Specifications
1, pneumatic pump
2,Viscosity 10000 kPa
3,ISO9001:2000
diaphragm pump; double diaphragm pump; widen diaphragm pump; vacuum pump; diaphragm vacuum pump; air operated diaphragm pump; pneumatic pump;sand pump ; pneumatic
membrance pump;
Technical Data
Model | Flow | Head | Pressure | Suction Head | Max allowed by particle | Max supply pressure | Max Air Consumption |
QBY- 10 | 0.8 | 50 | 6 | 5 | 1 | 7 | 0.3 |
QBY-15 | 1 | 50 | 6 | 5 | 1 | 7 | 0.3 |
QBY-25 | 2.4 | 50 | 6 | 7 | 2.5 | 7 | 0.6 |
QBY-40 | 8 | 50 | 6 | 7 | 4.5 | 7 | 0.6 |
QBY-50 | 12 | 50 | 6 | 7 | 8 | 7 | 0.9 |
QBY-65 | 16 | 50 | 6 | 7 | 8 | 7 | 0.9 |
QBY-80 | 24 | 50 | 6 | 7 | 10 | 7 | 1.5 |
QBY-100 | 30 | 50 | 6 | 7 | 10 | 7 | 1.5 |
