QB152 - manual grout pump

QB152 - portable grouting pump

Specifications

1, grouting pump
2, we have over 20 years experience.
3, fast delivey.
4,good quality and low

Product Introduction

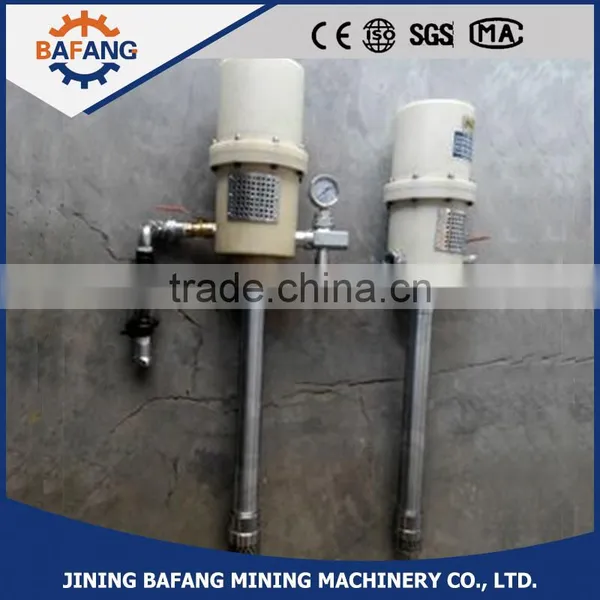

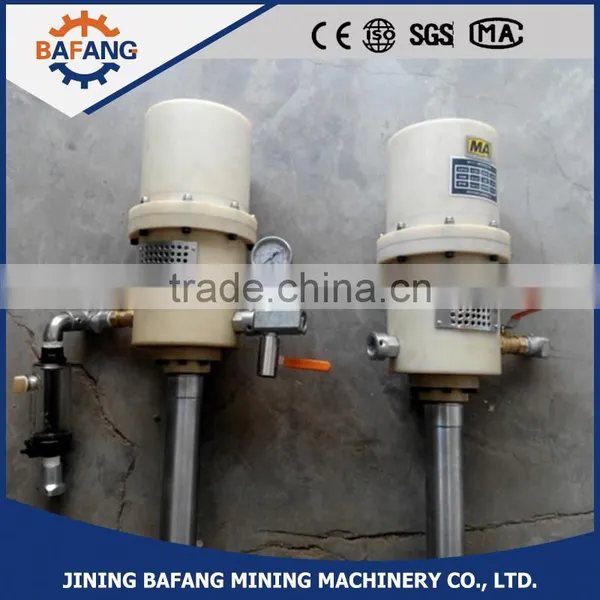

 QB152 portable grouting pump is mainly used in mines, tunnels, water, underground, construction, bridge construction, for grouting, filling gaps, broken rock grouting, anchor grouting; also used to repair roads, railway embankment boiling for local defects, as well as soft ground treatment; exclude underground hazard in flood.

QB152 portable grouting pump is small size, light weight, reliable, flammable, explosive, temperature and humidity changes in the larger places are safe to use. This pump is suitable for cement grouting.

QB152 portable grouting pump is consisted of pump cylinder, cylinder larger piston, valve assembly, cylinder head, intake control switch and a drop quick connectors and other components.

Main Parameter

1,air pressure:0.4-0.63Mpa;

2,piston stroke:100mm;

3,plasma pressure:3.2Mpa;

4,plasma volume:30L/min;

5,quality:16kg;

6,air consumption: less than or equal to 0.28 cbm/ min;

7,reciprocating time:less than or equal to 150 times/min;

8,Trought air pipe dia:3/4
