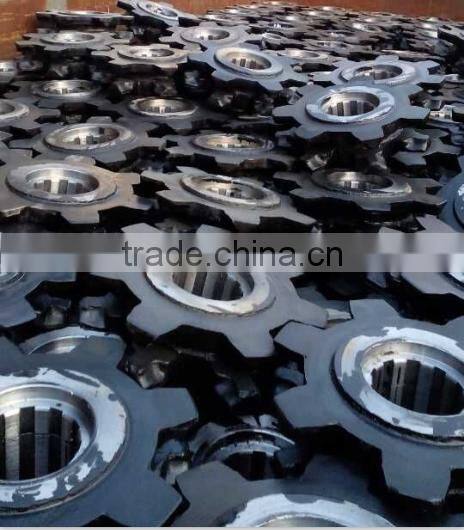

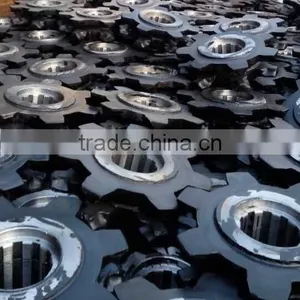

40 t scraping machine sprocket

description

    40 t scraping plate chain, sprocket and consists of sprocket, half cylinder.Article 6 the M20 bolts used form a whole.Chain wheel is made of high quality alloy steel forging or casting, meshing tooth surface hardening treatment.

     The service life of forging sprocket for over 2 times of the cast steel sprocket, the drive sprocket and gear reducer shaft with spline 4 connected to the fourth spline shaft front end flat key and cylinder connections.

     The two sprockets rotate direction.Transfer torque to the blind shaft sprocket.In use should be regularly check whether six M20 bolts fastening and reliable.

     The company is mining transportation equipment scraping machine sprocket professional suppliers, not only machine sprocket commonly used models of mining transportation equipment in stock, but also according to customer request custom mining transportation equipment.

parameter

rules within the pitch of section in wide tooth number for note LN606025.322.236 ~ 18

installed roller diameter aperture can be produced according to user requirements

LN66.566.526.522.236~18

LN68682522.236~18

LN76.276.230306~18

LN10010038.5366~15

LN12512532256~15

LN16016027326~15

Note:

     It can be customized to other specifications of the sprocket.

Widely applied to as transmission chain conveyer device (scraper conveyor, chain hoist, etc.), and the conveyor sprocket tooth profile is different with general transmission chain, in the selection of time should be consistent with the conveyor chain.

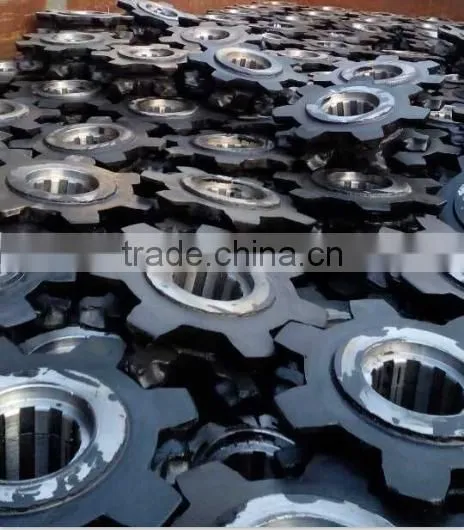

detailed picture
