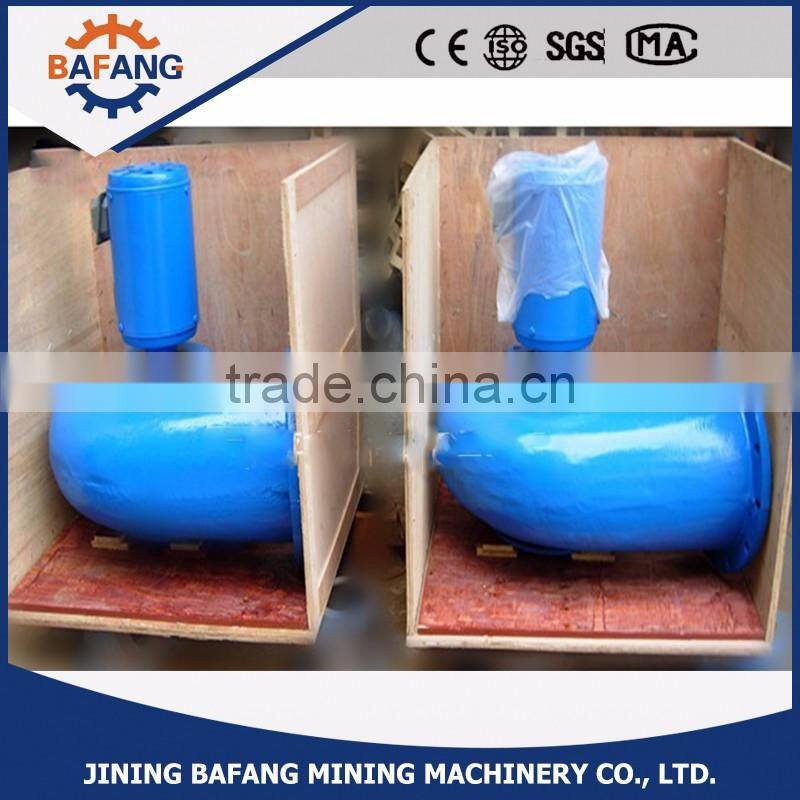

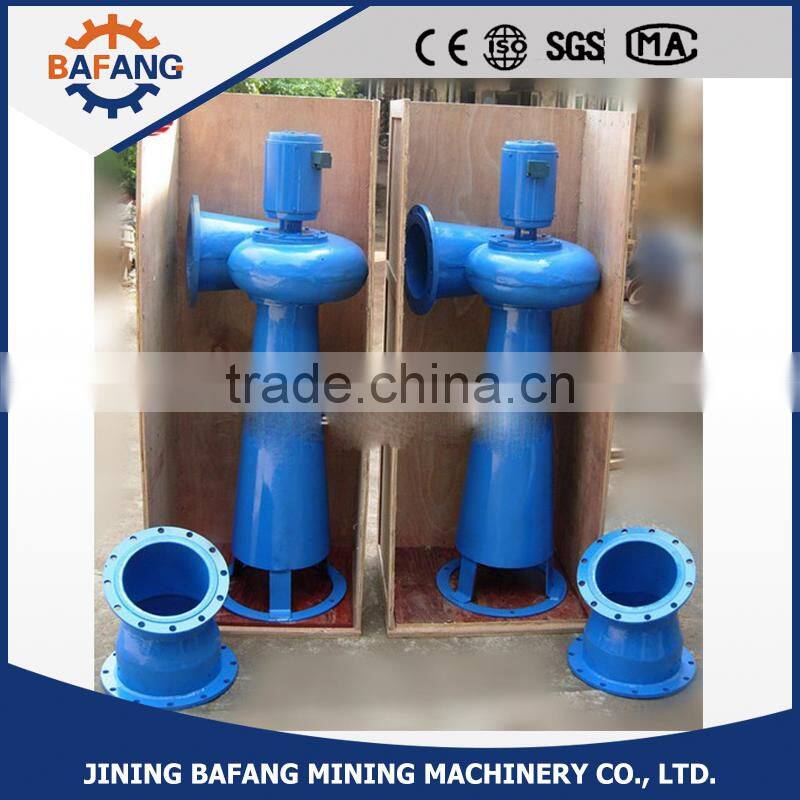

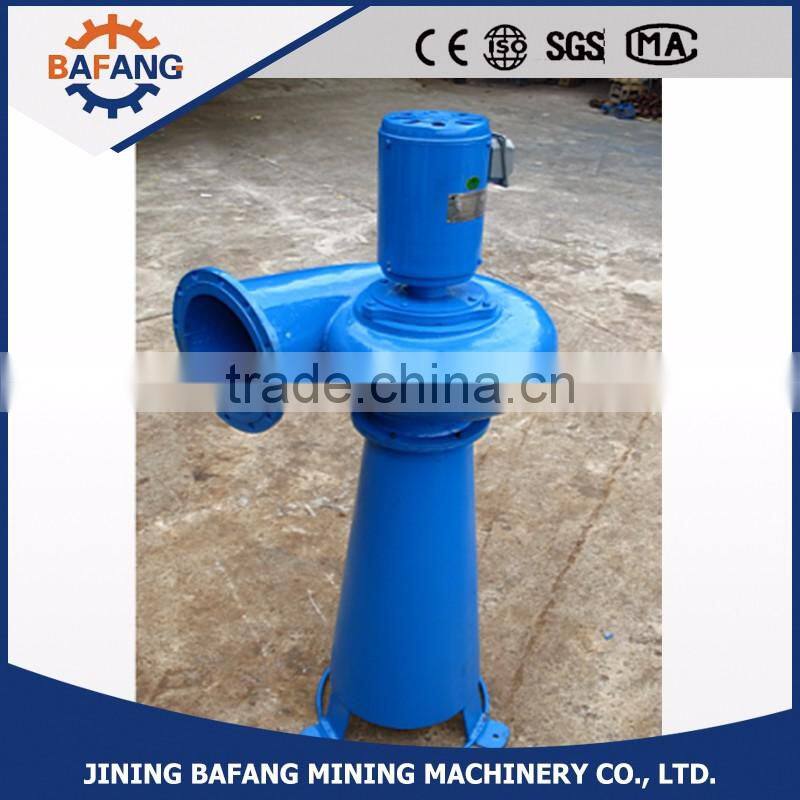

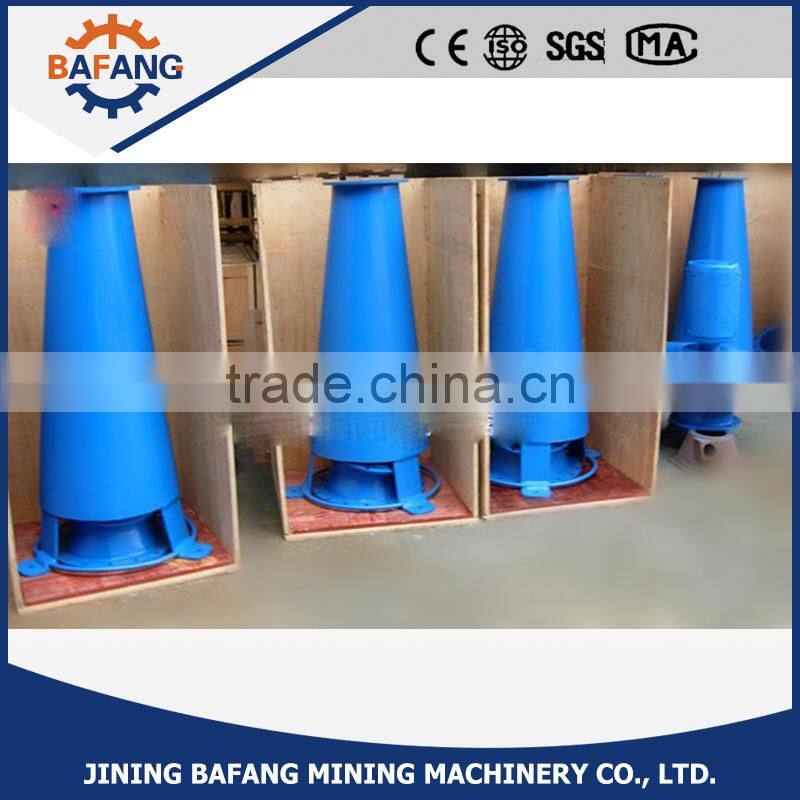

Water-power Generator

Model

A001

Type

Volute axial flow water turbine generator

Power

300W-10KW

Material

FRP/Steel plate/Copper wire

Frequency

50Hz / 60Hz

Voltage

110V/220V/380V

Transfer speed

1000(min)

Phase

Single phase

Insulation grade

E

Water height

1~10m

Flow

0.017m³/s~1.66m³/s

Power

(KW)

Water height(m)

Flow

(m³/s)

Rotate speed

(R/M)

Voltage

(V)

Frequency

(Hz)

0.3

1.5-4

0.045-0.017

1000

220

50

0.6

2-4

0.068-0.034

1000

220

50

1.0

2.5-6

0.085-0.035

1000

220

50

1.5

2.7-8

0.114-0.0382

1000

220

50

2.0

3-10

0.128-0.0385

1000/1500

220

50

3.0

3-12

0.185-0.0464

1000/1500

220

50

5.0

3.5-15

0.251-0.0586

1000/1500

220/380

50

8.0

4-16

0.352-0.088

1000/1500

220/380

50

10

5-18

0.34-0.094

1000/1500

380

50

12

5-18

0.395—0.10

1000/1500

380

50

15

5-18

0.47—0.132

1000/1500

380

50

Power

(W)

Net weight

(KG)

Weight of wooden box(KG)

Dimension

(CM)

300

47

70

43×48×108

600

52

76

43×48×111

1000

78

98

43×48×136

1500

85

132

51×57×136

2000

158

216

71×62×167

3000

163

221

71×62×169

5000

238

283

82×78×88

8000

246

291

82×78×88

10000

340

360

141×113×93
