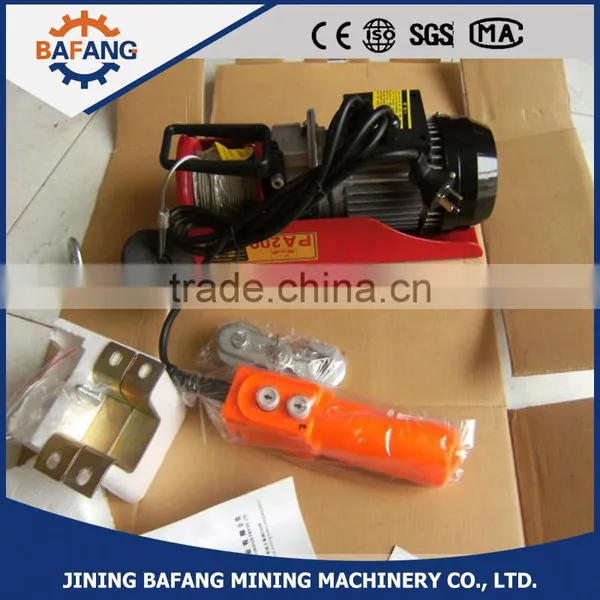

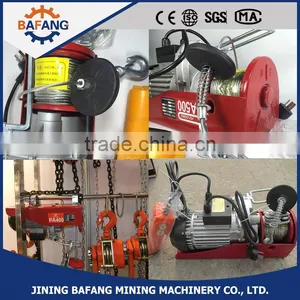

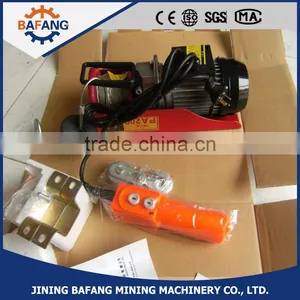

PA200 Electric Hoist Mini Electric Wire Rope Hoist

FOB Price

US$ 1 - 10 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	BF	Model Number	PA200
Usage	Construction Hoist	Power Source	Electric
Sling Type	Wire Rope	Maximum Lifting Weight	100-200kg
Maximum Lifting Height	6-12m	Lift Speed	5-10m/min
Certification	ISO	Warranty	1 Year, 1 year
After-sales Service Provided	Engineers available to service machinery overseas

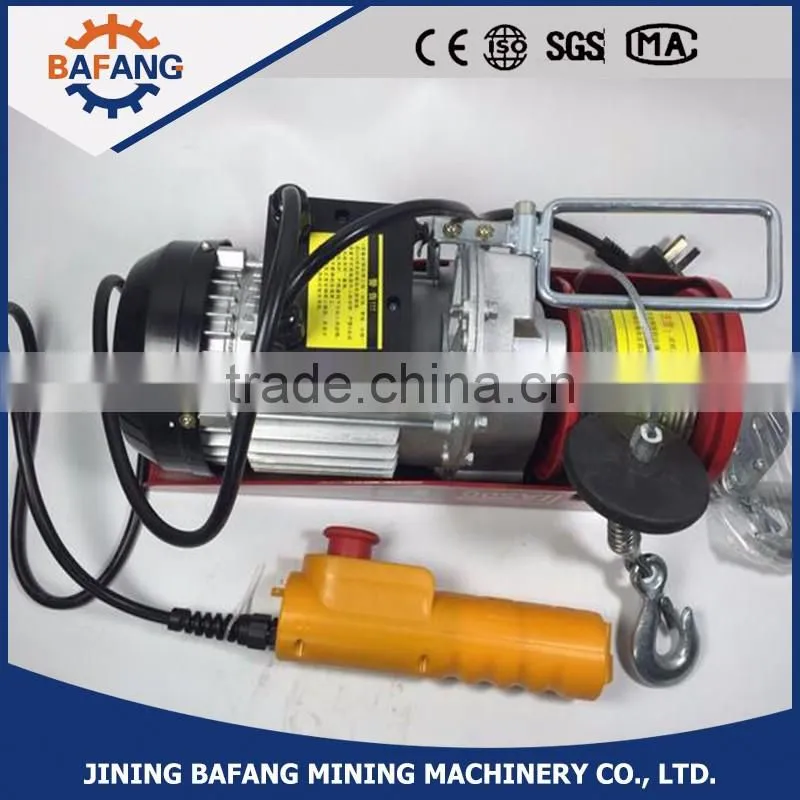

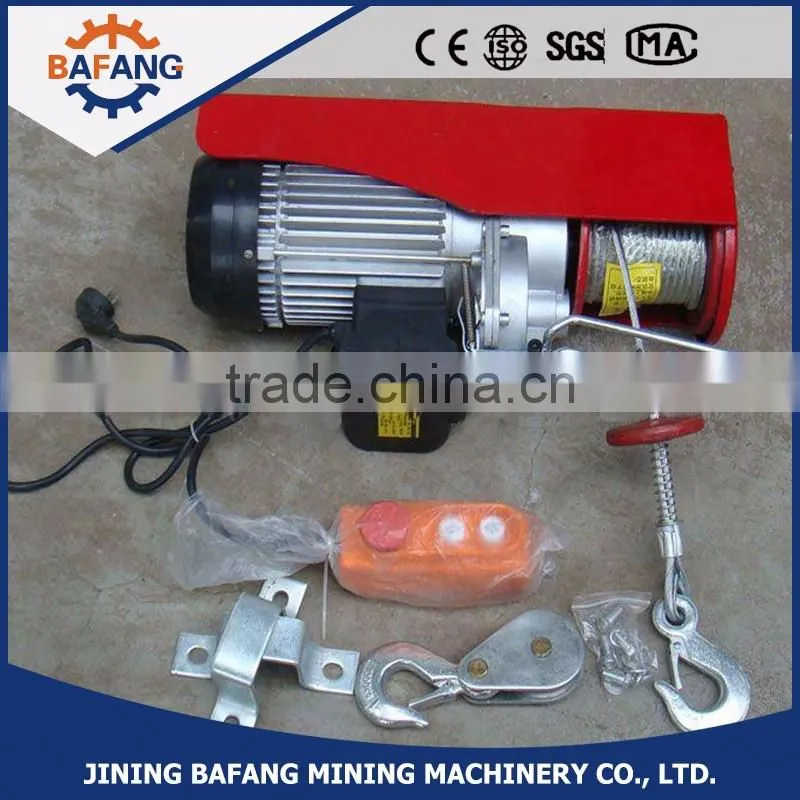

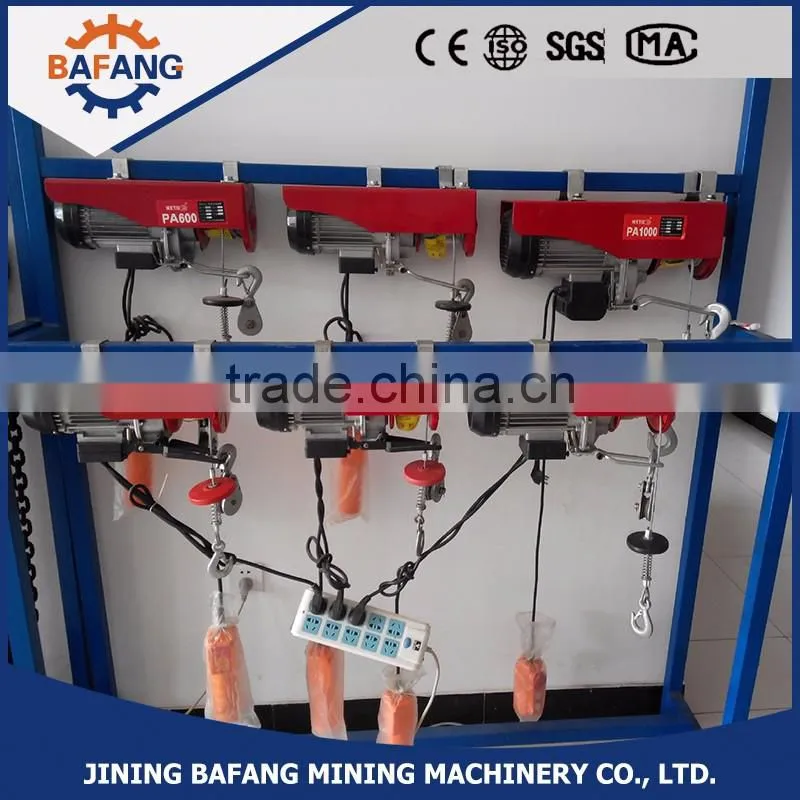

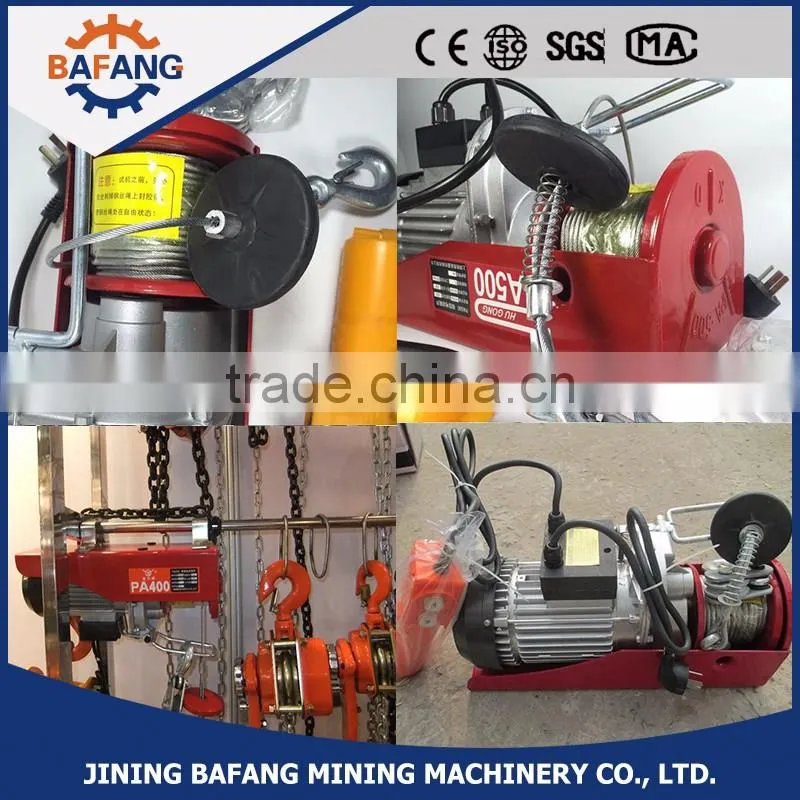

PA200 electric hoist mini electric wire rope hoist

Main Specification:

• The emergency stop switch

• Upper limit function

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

• Work Duty: S3-25%-10min

• Rated Volt: 220/230V ~ 50Hz

• Rated Current: 2.0A

• Input Power: 550W

• Lifting Weight: 100kg (Single-line), 200kg (Double-line)

• Lifting Height: 12m (Single-line), 6m (Double-line)

• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)

• Diameter of wire rope: 3.0mm

• Tensile strength of wire rope ≥ 1870N/mm2

Main Parameter:
