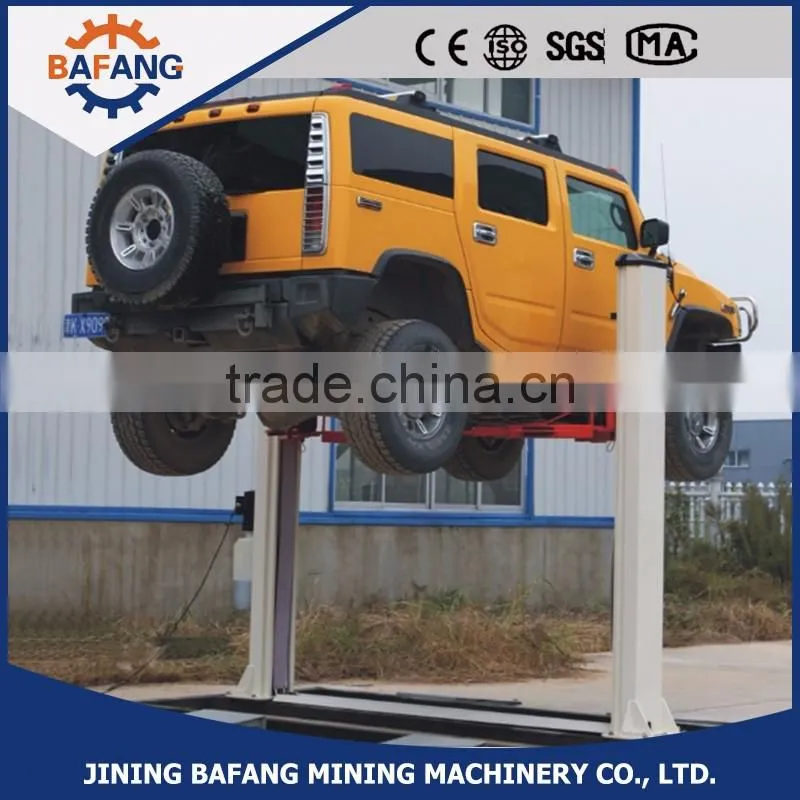

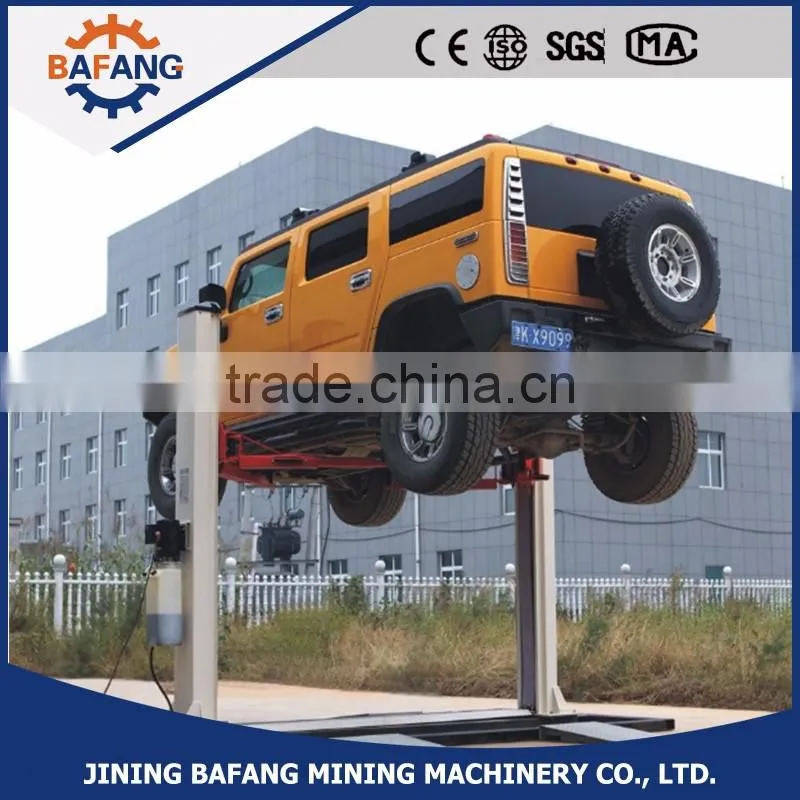

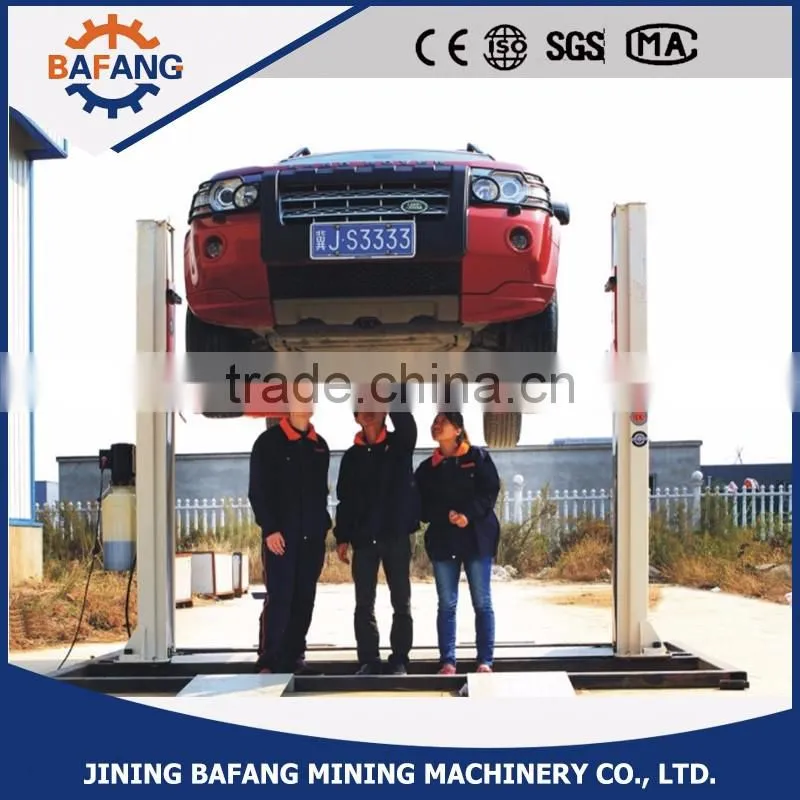

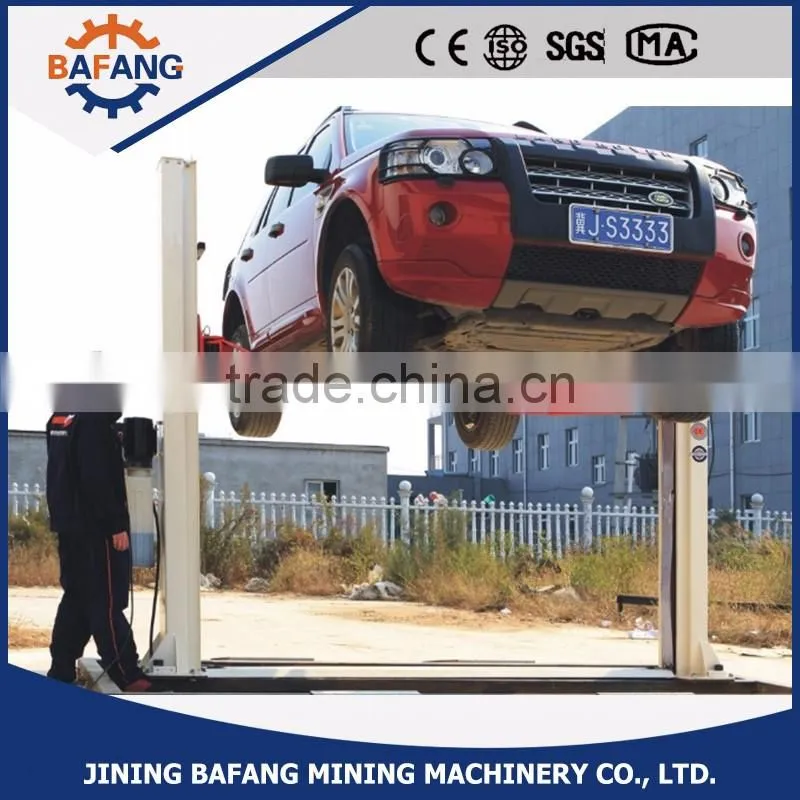

2 post car lift car hoist hydraulic car lift

2 post car lift car hoist hydraulic car lift

Main features:

1.Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to move synchronously.
2.Manual lock release mechanism on both sides
3.Carraige travels in the column through slide blocks.

Parameter:

Lifting height:1803mm

Min height:92mm

Rise time:≤50s

Down time:≥20s≤50s

Through width:2400mm

Overall width:3614.12mm

Overall height:2857mm

Motor power:2.2kw

Motor voltage:3 phase 380v or single phase 220v

Net weight: 550kg

Packaging size:2800mm*500mm*750mm
