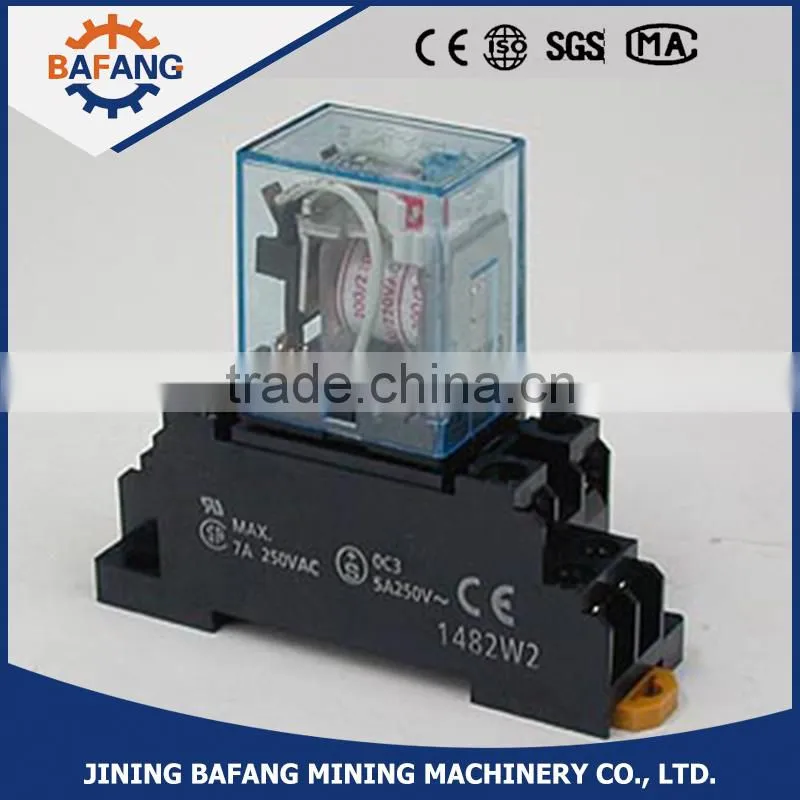

Relay JZX-18FF/024-2Z1D 24VDC 5A 8Pin Power Relay Intermediate relay
Product Details | |||
Brand Name |
Shaman |
Item No. |
JZ7-44 |
Color |
Black |
MOQ |
100 pcs |
Packing |
60 PCS in one carton. |
||
Important Information | |||
Send sample |
Yes |
||
Delivery time |
Within 30 days. |
||
Payment terms |
T/T 30% deposit, the balance before the shipment. | ||
Introduction:
AC Contactor Relay is mainly used for AC 50Hz (can be used after derived 60Hz), rated working voltage up to 380V or 220V DC rated voltage to the control circuit to control a variety of electromagnetic coils, so that the signal or signals at the same time expanding passed to the con-trol elements.
Specification: 24V 36V 110V 220V 380V
JZ7 Relay Construction Features:
- Relay structure: open type, air electromagnetic type. Shell made of heat fixation plastic, and moving organizations use directly operated type.
- Auxiliary contact use double breakpoint and bridge structure.
- Installation: screw tightening.
Main technical parameters:
Relay contact combinations have three types:
Model |
JZ7-44 |
JZ7-62 |
JZ7-80 |
Number of normally opened contacts |
4 |
6 |
8 |
Number of normally closed contacts |
4 |
2 |
0 |
The voltages of coil operating attracted by relays:
AC 50Hz,12,24,36,110,127,220,380V
The basic parameters of the relay
Rated isolation voltage UiV |
Convention althermal current |
The rated current under the different rated voltage |
capacity control |
|||||
|
Making
|
Breaking | |||||||
690 |
5 |
AC-15 |
||||||
120V |
127V |
220V |
240V |
380V |
3600VA |
360VA |
||
3 |
2.83 |
1.64 |
1.5 |
0.95 |
||||
DC-13 |
||||||||
110V |
125V |
220V |
/ |
/ |
||||
