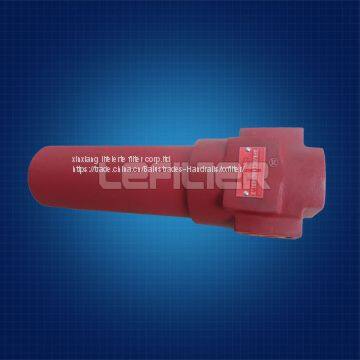

Hydac Df140g Hydraulic Oil Filter Housing

Hyadc oil filter----Technical Data:

1. Construction materials:
    Head---ductile iron
    Bowl---steel
    Housing(1320)---steel
    Cap(660 & 1320 ver. 2)---ductile iron
2. Flow capacity: 30 ~ 1320 L/min
3. Max operating pressure: 6000 psi (420 bar)
4. Fluid temp. range: -30 to 121 ºC

Hydac oil filter----Applications
In hydraulic,lubrication system,this kind of filter can be used to filtrate solid particles,colloidal substances and other pollutants in the working medium,in addition,they can effiectively control the pollution degrees of the working medium to ensure the normal operation of the system.
Hydac oil filter----Advantages
1.Greater system availablity from reliable filtration

2.Long element service life through highest dirt holding capacities

3.Higher operational dependablity through outstanding cleanliness classes

4.Reduced maintenance coststhrough long replacement intervals

5.Low disposal costs through weight reduction

6.Greater safety through high differential pressure stability

7.Lower price than original and the same specifications and fuction as origina

R - Return line elements
R elements are used in return inline filters, e.g. in the series RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD.
FEATURES:
Filter finenesses: 1 to 200 µm
Filter materials: glass fiber, solid plastic, wire mesh, paper, metal fleece, water-absorbent material
Absolute or nominal filtration, depending on the filter material
Permissible differential pressures: 20 bar
Operating temperature: up to 100°C
Compatible with all conventional operating media
With bypass valve (optionally without)
Our products through the following test:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing


Why choose us?
1. Manufacturer, the best price for you...
2. OEM is accpted. We can manufacture the products according to your requirement.
3. Free samples. We are honored to offer you samples, you just need to pay the freight.
4. Quality Guarantee: Our products are tested and checked one by one before shipment.
5. Short delivery time: 2--10 working days (based on the quantity)
6. First-class service:
         Technical advisory for any time.
         Answer all your questions about the products patiently .
         Provide you newest goods transport conditions until you receive the products.
         If any quality problem , we will supply you the new replaced ones.
