Explosion-proof fan Fans for coal mine
- NingBo
- Credit Card
You May Like
-
Performer 18V LITHIUM cordless drill
-
18v cordless electric drill
-
BBJ coal mine explosion-proof audible and visual alarm warning light /lamp
-
Large decibels warning alarm BBJ sound and light alarm
-
electric dynamic static torque sensor transducer
-
Micro dynamic torque sensor for measuring force rotary torque
Product Details
| Condition | New | Type | Other, coal mine | |
| Power Type | Electric | Place of Origin | Shandong, China | |
| Brand Name | Bafang | Model Number | FBD | |
| Usage | Coal | Voltage | 380/660V | |
| Power(W) | 2.2-132KW | Dimension(L*W*H) | 2575*875*1290mm | |
| Weight | 1000kg | Certification | ISO9001 | |
| Warranty | 2 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

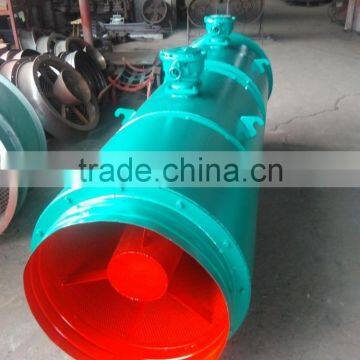

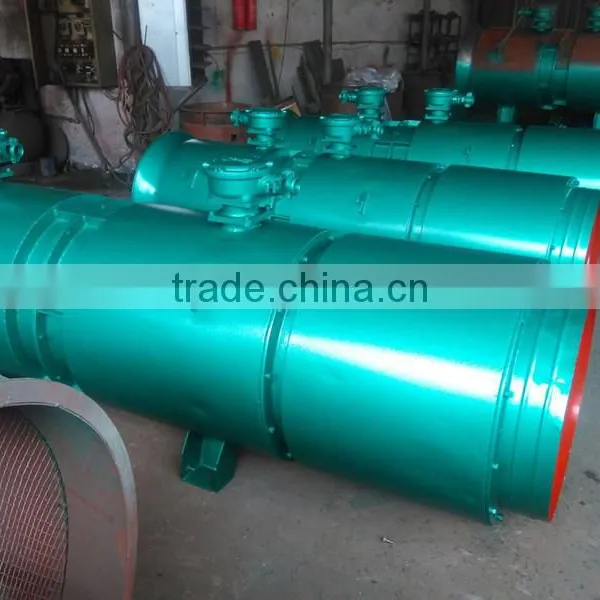

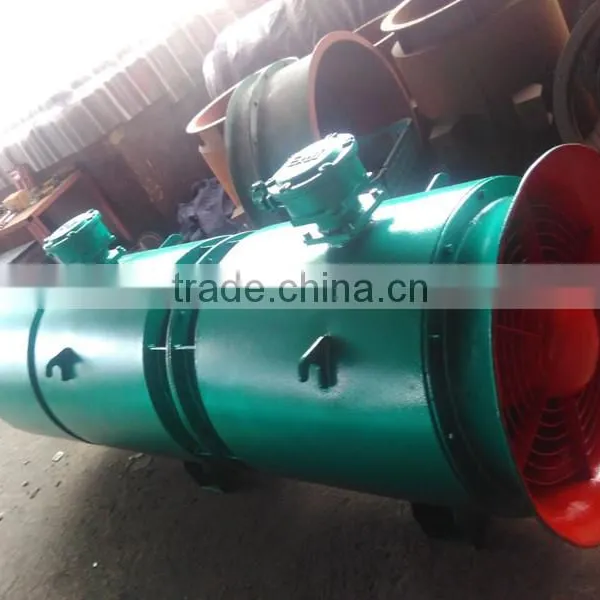

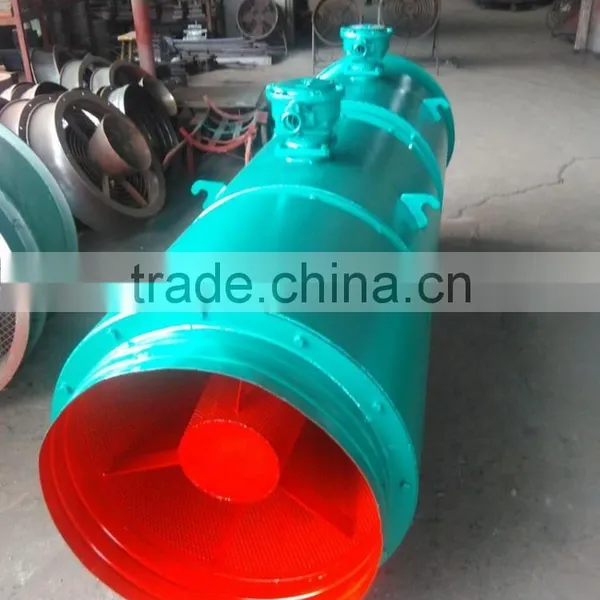

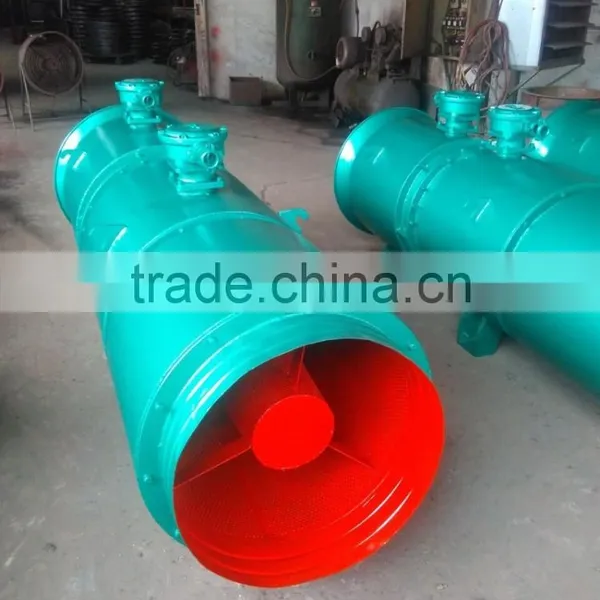

FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine
· Application: Best choise ventilation fan for under mining coal, deep tunnel/ metal mining/ engineering tunnel
· Function: far distance ventilation, big power ventilation, low noisy, high efficiency, energy-saving, various style available
· Temperature range:-20°C~+40°C
FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine Feature
1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. It's in low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to imp-rove the pressure in pipe;
4. The enclosure material can be armor plate or fiber flass reinforced plastic;
5. Wiring with cable.
The technical parameter of FBD series coal mine explosion-proof press-in type contra-rotating local ventilation fan:
No. | Rotate speed(r/min) | Air volume(m3/min) | Total pressure(Pa) | Motel type | Matched powerkW | Rated voltage(V) | Rated current/motor(A) |
No.4.0 | 2900 | 136~89 | 256~2050 | YBF90L-2 | 2×2.2 | 380/660 | 4.85/2.79 |
150~100 | 325~2500 | YBF100L-2 | 2×3 | 380/660 | 6.4/3.7 | ||
165~109 | 375~3040 | YBF112M-2 | 2×4 | 380/660 | 8.1/4.7 | ||
No.5.0 | 2900 | 217~145 | 275~2060 | YBF112M-2 | 2×4 | 380/660 | 8.1/4.7 |
240~161 | 325~2540 | YBF132S1-2 | 2×5.5 | 380/660/1140 | 11.1/6.4/3.7 | ||
266~178 | 400~3155 | YBF132S2-2 | 2×7.5 | 380/660/1140 | 14.8/8.66/4.97 | ||
No.5.6 | 2900 | 286~188 | 275~2850 | YBF132S2-2 | 2×7.5 | 380/660/1140 | 14.8/8.66/4.97 |
324~215 | 375~3690 | YBF160M1-2 | 2×11 | 380/660/1140 | 21.6/12.6/7.2 | ||
358~238 | 440~4560 | YBF160M2-2 | 2×15 | 380/660/1140 | 28.8/17.0/9.6 | ||
No.6.3 | 2900 | 410~237 | 400~4775 | YBF160M2-2 | 2×15 | 380/660/1140 | 28.8/17.0/9.6 |
442~256 | 460~5475 | YBF160L-2 | 2×18.5 | 380/660/1140 | 35.5/20.5/11.8 | ||
468~274 | 525~6125 | YBF180M-2 | 2×22 | 380/660/1140 | 41.0/24.4/13.67 | ||
518~318 | 640~7310 | YBF200L1-2 | 2×30 | 380/660/1140 | 56.9/32.9/18.5 | ||
No.7.1 | 2900 | 608~352 | 523~6228 | YBF200L1-2 | 2×30 | 380/660/1140 | 56.9/32.9/18.5 |
652~377 | 602~7163 | YBF200L2-2 | 2×37 | 380/660/1140 | 67.9/40.3/22.6 | ||
696~402 | 686~8161 | YBF225M-2 | 2×45 | 380/660/1140 | 82.1/48.4/27.4 | ||
No.8.0 | 2900 | 817~473 | 605~7200 | YBF225M-2 | 2×45 | 380/660/1140 | 82.1/48.4/27.4 |
874~506 | 692~8230 | YBF250M-2 | 2×55 | 380/660/1140 | 102.6/59.3/34.3 | ||
970~560 | 850~9950 | YBF2-280S-2 | 2×75 | 380/660/1140 | 134/77/44.2 | ||
No.9.0 | 1450 | 831~480 | 394~4710 | YBF200-4 | 2×30 | 380/660/1140 | 56.8/32.8/19.0 |
890~520 | 450~5120 | YBF2-225S-4 | 2×37 | 380/660/1140 | 70.0/40.0/23.2 | ||
950~550 | 520~6170 | YBF2-225M-4 | 2×45 | 380/660/1140 | 85.0/50.0/29.0 |
