Electric dynamic static torque sensor transducer
Introduction
1, motor, rotating power equipment such as engines, internal combustion engine output torque and power of detection;
2, fan, water pump, gear box, torque wrench, torque and power of detection;
3, railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of inspection measurement;
4, can be used in the wastewater treatment system in torque and power of detection;
5, can be used in the manufacture of viscometer;
6, can be used in the process industry and process industry.
detailed picture
Technical parameter
The amount of process range: 0 - 10000 N m
The amount of constant rotating speed: the highest 3000 rpm. (more high speed please inform)
Torsional moment of precision: < 0.5 or 0.3 or 0.1% F - S (optional)
Frequency response: rate 100 s
Non line: < + 0.08% F S
Heavy complex: < + 0.06% F S
Later lag: < 0.05% F - S
Zero point drift: < 0.2% F - S
Long period of stability: < + 0.3% F S
Lose out resistance: 1000 Omega + 5 Omega
The vast edge resistance: >500M.
Static state overload: 120% 150% 200% (optional)
The with temperature: - 20 ~ 50 degrees
Storage: storage temperature - 45 ~ 70 degrees
Power source: piezoelectric 24VDC or + 15VDC,
The total current consumption: < 130mA
The letter number output: 4-20mA, 1-5V, 5KHZ - 15KHZ (frequency) or customer specified
Rated torque : 10KHZ ± 5kHZ ( positive and negative bidirectional measurements )
Signal duty cycle : (50 ± 10)%
Speed Pulse: 60 pulses / revolution or 120 pulses / revolution
Protection degree : IP65

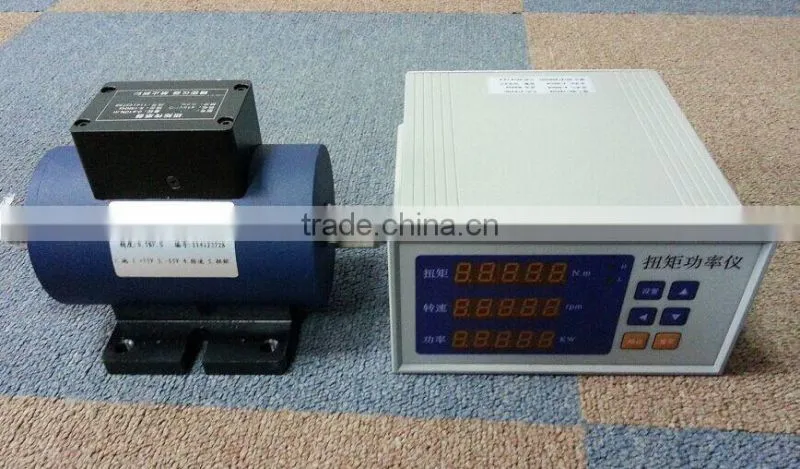

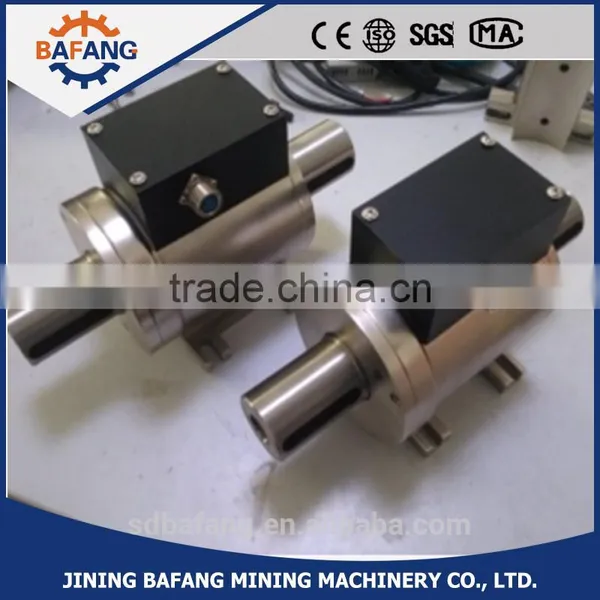

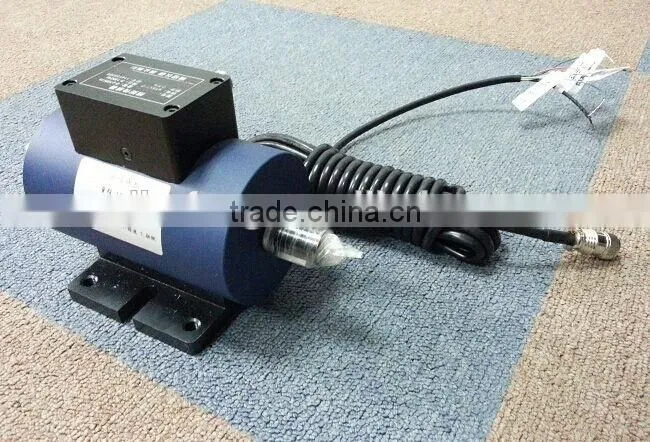

Dynamic torque sensor

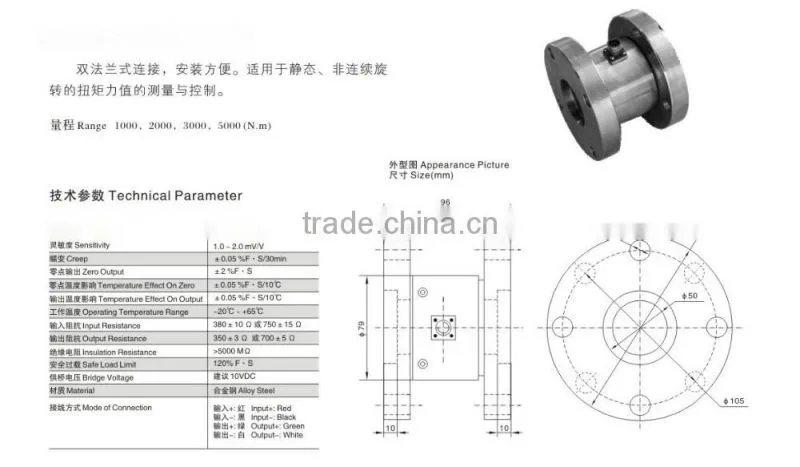

The static torque sensor
