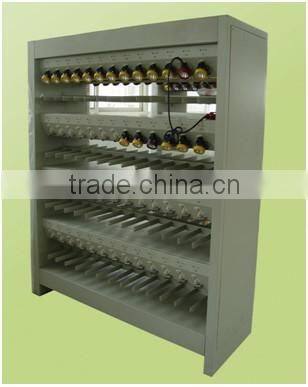

LED Lamp Charger, Miner Cap Lamp Charging Rack

Specifications

Charging rack for cap lamp
1. for LED lamp with Li battery
2. Modular structure
3. automatic control
4. molded housing



Feature

1. for LED lamp with Li battery
2. modular structure
3. automatic control
4. molded housing



Introduction

This is a special rack charger for LED miner’s cap lamp with lithium battery.



First, the building block type makes it convenient to be transported, assembled and repaired.



Second, there is automatic managing system for charging process and individually charging for each lamp, makes it possible to avoid the electric-network fluctuation and over-loading.



Third, the charging circuits are quake-proof, dust-proof and moisture-proof due to its molded housing.



Last there is both the high-voltage and low-voltage layers and is safe and reliable to use with a steady performance and durable structure.



Main specification

Item		Specification
Input Voltage		(110~250)V/(50~60)Hz
Output Voltage		DC 7V±0.5V
Charging Capacity per Flat		20 lamps
Peak Load		20 lamps / flat ×4
Dimensions	Charging Flats	1160×380×357mm  /22kg
	Base	1160×380×406mm  /60kg



Overall size of this 80 units miner's cap lamp charging rack:

L*W*H: 1160*380*1834mm

Weight: 150kg



1.Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2.Delivery:

Based on order quantity, normally it takes 7-20 days for production.

3.Shipping

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4.Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5.After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
