hot sell LED underground mining light lamp

FOB Price

US$ 20 - 40 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	led	Place of Origin	Shandong, China
Brand Name	bafang	Model Number	KL5LM
Usage	Industrial	Power Source	Rechargeable Battery
Battery Type	Lithium Ion
Certification	CE, GS	IP Rating	IP65
Lamp Body Material	Stainless Steel	Warranty(Year)	1
Lamp Power(W)	2.3

Product Description

Product Introduction

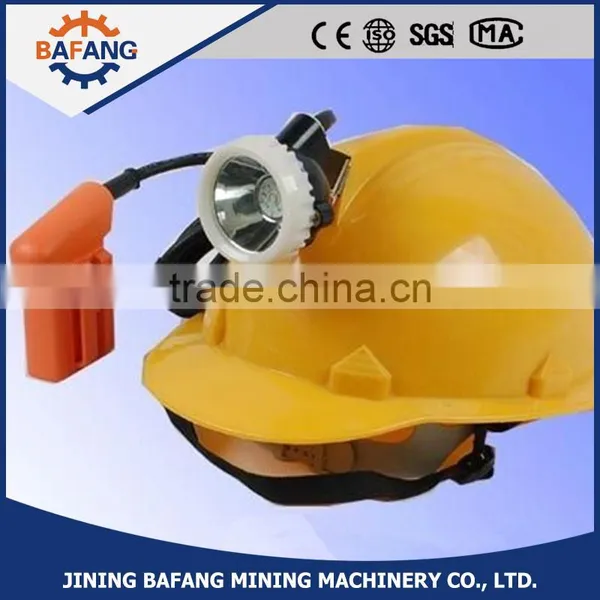

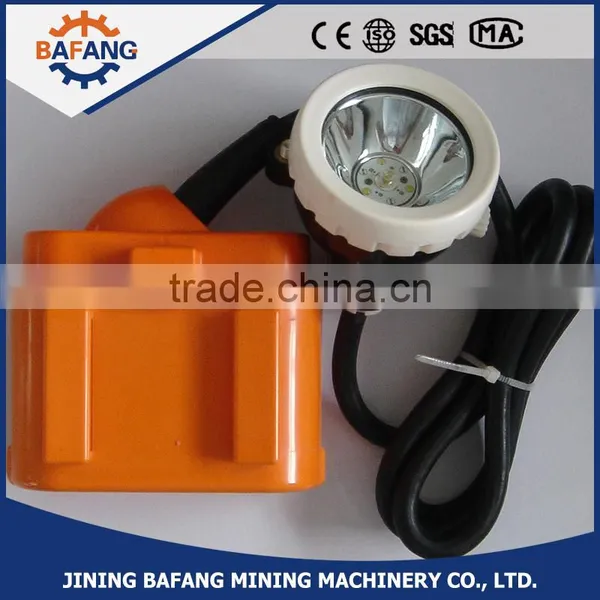

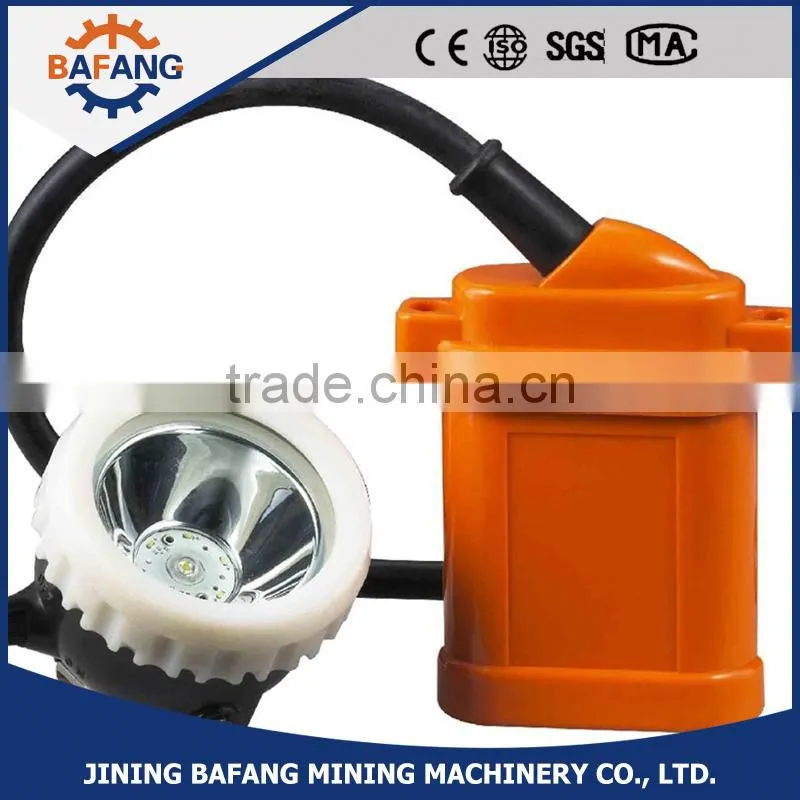

The kind of mine cap lamp is a new type of environmental-friendly lamp, which is adopted the most advanced 1w LED made by Lumileds Lighting Company and lithium batteries. This kind of miner's lamp can be applied in flammable and explosive environment such as coal mines, chemical industry, oil and road transportation, also can be applied in other mobile lighting places. The kind of miner's lamp got flameproof certificate ratified by National Coal Mining Machinery Quality Supervision and Testing Center.

The kind of mining cap lampis designed based on GB7857-2003 General requirements for safety of miners lampand MT927-2004KL miners lamp, which have characteristics of small size, light weight, long service life, free of maintenance, environmental protection.

safety:contained in a sealed battery case.the product has a short-circuit protection.LED light head lamp and anti-static housing which makes it explosion-proof.
economy:used a environmentally friendly lithium battery as a power sourse.The bulb is an energy saving,high power lumiled with a service life of over 50,000 hours.the battery can be charged for more than 500 cycle times.

portability:small in size,light in weight,humanized design,simple charging,easy operation.

The type of our company's mine safety cap lamp:

KS4LM KS5LM (lead-acid battery)

KL2LM KL2.5LM KL3LM KL4LM KL5LM KL6LM KL7LM KL8LM

KL10LM(lithium batteries)

KJ3.5LM KJ4LM KJ5LM KJ6LM KJ8LM(nickel-metal hydride battery )

Main Parameter

Item No.	Specification
Item No.	Specification
KL2.5LM Head lamp	Battery capacity:2500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:3000-4000lux discharge time:13-15h Battery life:≥500 cycles Discharge current:150-180mah Weight:180g Characteristics:charge the battery in charging rack
KL2.5LM Head Lamp	Battery capacity:2500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at1m:3000lux Discharge time:15h Battery life:≥500 cycles Discharge current:180-200mah Weight:170g


KL2.5LM Head lamp	Battery capacity:2500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:3000-3500lux discharge time:15h Battery life:≥500 cycles Discharge current:150-180mah Weight:130-140g
KL2.5LM Cap lamp	Battery capacity:2500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:3000-3800lux discharge time:15h Battery life:≥500 cycles Discharge current:150-180mah Weight:400g
KL4.5LM miner lamp	Battery capacity:4500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:3500-5000lux discharge time:13-15h Battery life:≥500 cycles Discharge current:300-350mah Weight:260g
KL4LM miner lamp	Battery capacity:4000mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:>3500lux discharge time:23-25h Battery life:≥600 cycles Discharge current:220-250mah Weight:500g
KL5LM miner lamp	Battery capacity:5500mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:10000-11000lux discharge time:>18h Battery life:≥600 cycles Discharge current:350mah Weight:500g
KL5M-C miner lamp	Battery capacity:5000mah Rated voltage:3.7v Charging voltage:4.2v Max Illumination at 1m:10000-11000lux discharge time:>13h Battery life:≥600 cycles Discharge current:350mah Weight:260g
