Product description

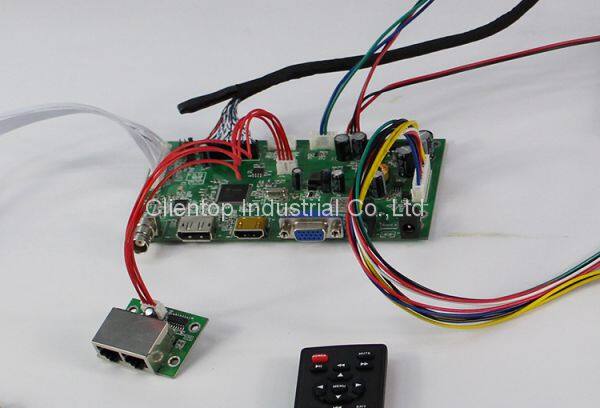

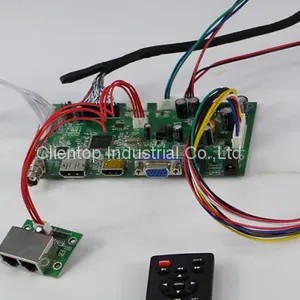

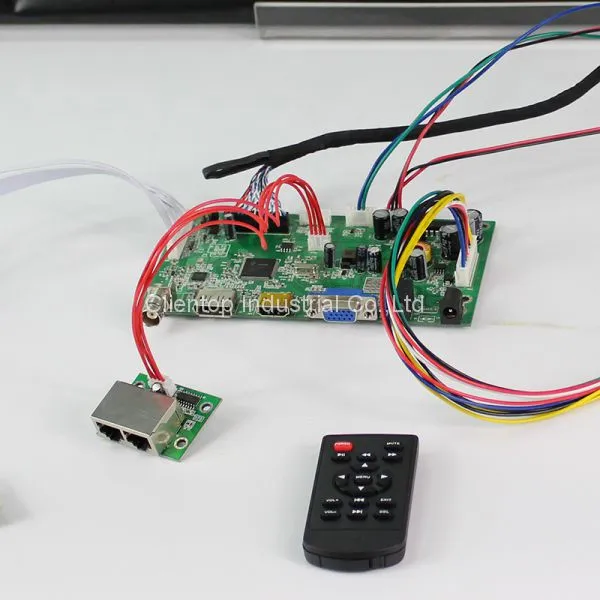

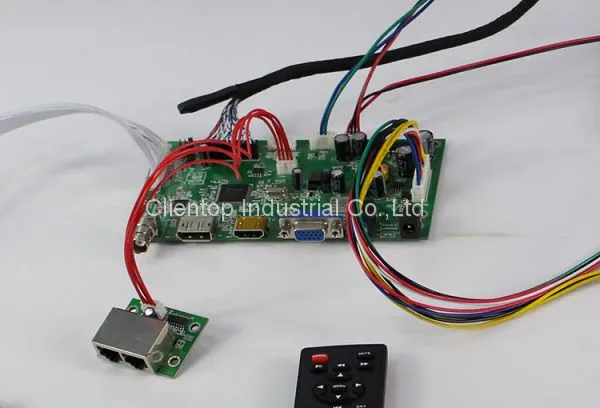

The driver board is designed for connecting TFT LCD PANE,main chip is NT68661.It conclude great video decoding function.Support to output high quality definition pictures.Provide VGA,DVI interface,support input signal within 1080P.Support WUXGA(1920×1080@60HZ)high definition signal input .Provide better output quality and support high definition line-by-line video decoding
AND Iit's panel can be adjusted by serial port via ID CONTROL SYSTEM
Input signal interfaces | PC | |||
Color | 24bit | |||
HSYNC | 30-80KHZ | |||
VSYNC | 50-75HZ | |||
AHD | ||||
DP | Color | 24bit | ||
HSYNV | 30-80KHZ | |||
VSYNC | 50-75HZ | |||
HDMI
| ||||
Color | 24bit | |||
HSYNV | 30-80KHZ | |||
VSYNC | 50-75HZ | |||
Output | PANEL interface | LVDS30Pin/2.0 | ||
Speaker interface | 4Pin2.0white socket | |||
Power | Input power | DC12v | ||
Power to panel | 3.3V/5V/12V | |||
Power mode | Working mode,low consumption mode | |||
Power manage | Standby consumption<1W | |||
Other | ||||
Keys | MENU,POWER,SELECT,CH+,CH-,UP,DOWN | |||
OSD language | Chinese and English,etc.multi-language | |||
Size
PCB size:
PCB thickness and the highest part:18MM
PCB length:120MM
PCB width:65MM
PCB screw hole:3.5MM
