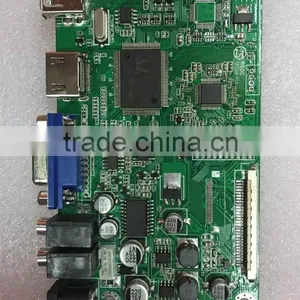

Help CenterLCD Controller Board for Edp Interface LCD Panel
Related Products
-
Controller Board,driver Board,AD Board for Edp Interface LCD Panel,1366*768/1920*1080US$ 1 - 2MOQ: 1 Piece -
LCD Controller Board With VGA+HDMI+USBUS$ 1 - 2MOQ: 1 Piece
-
Real 4K Resolution (3840x2160)@60hz Support LVDS&V-by-one Interface TFTUS$ 1 - 2MOQ: 1 Piece
-
DVI-D and VGA Signal Input LCD A.D BoardUS$ 1 - 2MOQ: 1 Piece
-
LCD Controller Board/LCD Driver Board, 3840*2160,Support 4K2K/2D/3D PR Output.US$ 1 - 2MOQ: 1 Piece
NDTX-R60C is used to match the TFT EDP panel of the LCD Driver board,The resolution support 1366*768/
1920*1080 ,24bit color,15 to 250KHz line frequency,45to 80Hz field frequency signal,can be automatically
detect simultaneously and support DCR (dynamic contrast),external audio output,can use the
buttons to adjust the volume.
1.Keyboard plate and light interface
NO. |
interface definition |
Function description |
1 |
KO |
Button interface K0 |
2 |
LED R |
Right light |
3 |
LED G |
Green light |
4 |
GND |
Ground |
5 |
K1 |
Button interface K1 |
6 |
K2 |
Button interface K2 |
7 |
K3 |
Button interface K3 |
8 |
K4 |
Button interface K4 |
9 |
K5 |
Button interface K5 |
10 |
K6 |
Button interface K6 |
2.EDP Drive-screen interface
NO. |
interface definition |
Function description |
1 |
NC |
NC Connection |
2 |
GND |
High Speed Ground |
3 |
Lane1_N |
Complement Signal-Lane 1 |
4 |
Lane1_P |
True Signal-Main Lane 1 |
5 |
GND |
True Speed Ground |
6 |
Lane0_N |
Complement Signal-Lane 0 |
7 |
Lane0_P |
True Sinal-Main Lane 0 |
8 |
GND |
High Speed Ground |
9 |
AUX_P |
True Signal-Aldxllary Channel |
10 |
AUX_N |
Complement Signal-Aldxllary Channel |
11 |
GND |
High Speed Ground |
12 |
VCC |
LCD Logic And Driver Power |
13 |
VCC |
LCD Logic And Driver Power |
14 |
NC |
NC Connection |
15 |
GND |
LCM Ground |
16 |
GND |
LCM Ground |
17 |
HPD |
HDP Signal Pin |
18 |
GND |
LCM Ground |
19 |
GND |
LCM Ground |
20 |
GND |
LCM Ground |
21 |
GND |
LCM Ground |
22 |
LED_EN |
LED BlackLight On/Off |
23 |
PWM |
System PWM Signal Input For Dimming |
24 |
NC |
No Connection |
25 |
NC |
No Connection |
26 |
VLED |
LED BackLight Power |
27 |
VLED |
LED BackLight Power |
28 |
VLED |
LED BackLight Power |
29 |
VLED |
LED BackLight Power |
30 |
NC |
No Connection |
3.Speaker interface
NO. |
interface definition |
Function description |
1 |
LO |
Left sound channel output |
2 |
GND |
Ground |
3 |
GND |
Ground |
4 |
RO |
Right sond chanel output |
4.Inverter interface
NO. |
interface definition |
Function description |
1 |
GND |
Ground |
2 |
GND |
Ground |
3 |
ADJ |
Backlight control |
4 |
EN |
Backlight switch |
5 |
12V |
12V voltage |
6 |
12V |
12V voltage |
5. USB 4PIN interface
NO. |
interface definition |
Function description |
1 |
GND |
Ground |
2 |
DP |
DP signal |
3 |
DM |
DM signal |
4 |
5V |
5V power output |
6. 3.3V interface
NO. |
interface definition |
Function description |
1 |
3.3V |
3.3V power output |
2 |
3.3V |
3.3V power output |
