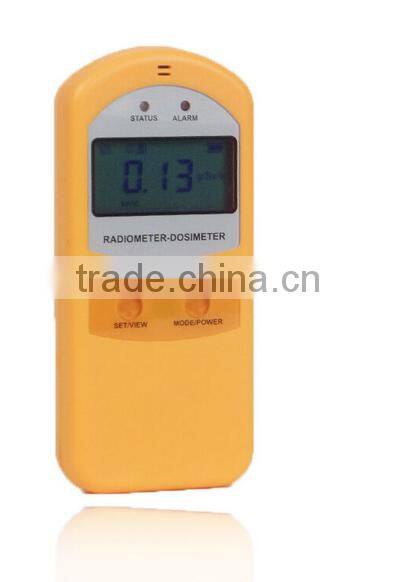

RAD-35 beta and gamma radiometer dosimeter

RAD-35 is a portable gamma radiation measuring instrument. Build in a high sensitive gamm beta Geiger-Muller counter. With fast response, wide measuring range characteristics.Using for measuring X-ray ,gamma and beta radiation. It’s  a multipurpose radiation dose rate measuring instrument.

Purpose for use

Measurement of gamma radiation ambient dose equivalent rate;

Measurement of gamma radiation ambient dose equivalent;

Measurement of surface beta-particles flux density;

Measurement of ambient dose equivalent accumulation time;

Real time measurement (clock).

Nuclear facilities around environmental radiation detection

The soil surface radiation pollution detection

Agricultural radiation pollution detection

Ore, building materials radioactive detection

Personal dose monitoring alarm

 Industrial X, gamma NDT radiation detection

Radiation medical treatment place radiation detection

Cobalt source, electronic accelerator irradiation place radiation detection

Radioactive radiation laboratory detection

-Measurement ranges:
  dose equivalent rate (137Cs): 0.01 μSv/h~10mSv/h
  dose equivalent (137Cs): 0.01uSv~9999Sv
-Energy ranges
  X and Gamma radiation: 40Kev~3.0Mev
Beta radiation : 0.5~3.0MeV
- Energy dependence: ≤±25%(relative to 137Cs)
- Relative errors : ≤±10%(in  20uSv/h)
- Dose rate and dose alarm threshold value: full range can be adjusted
- Protective alarm response time: not more than 3 seconds (in 10 uSv/h)
-Display unit
Dose rate : uSv/h,mSv/h,Sv/h automatic conversion
Dose : uSv , mSv ,Sv automatic conversion
-Battery : One AAA battery
- Operating temperature range : -20°C~+50°C

- Weight and Dimensions: 120g  ,125×55×26 mm
