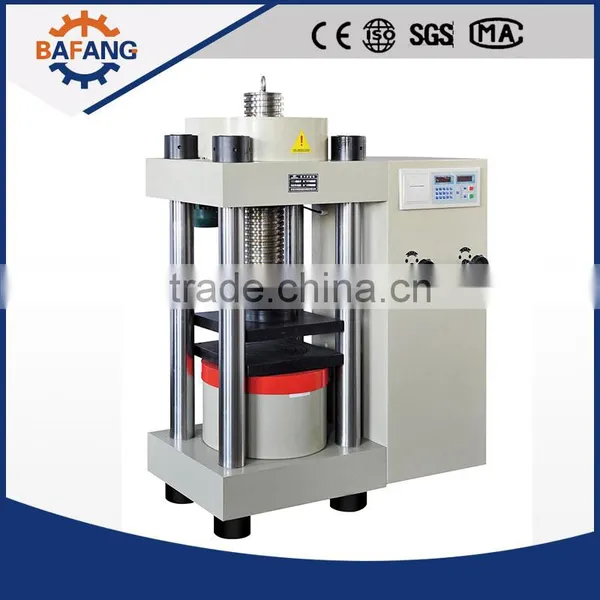

1000-3000kN laboratory test equipment for pressure test cement compression testing machine
1.Introduction:
Hydraulic Power concrete compressive strength tester is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test,also used to test the compressive performance of other materials.
2.Spatial adjustment method: Electric lift
3.Main performance technical specifications:
Model | Hydraulic Power Concrete Compressive Strength Tester | |
Max load | 2000KN | 3000KN |
Test force measuring range | 4%-100%FS | |
Test Force showed the relative error | ≤indicating value±1% | <±1% |
Test Force Resolution | 0.03KN | 0.03KN |
Hydraulic pump rated pressure | 40MPa | |
Upper and lower bearing plate size | 320*260mm | 500*500mm |
Maximum distance between the upper and lower plate | 330mm | 500mm |
Piston diameter | φ250mm | φ310mm |
Piston stroke | 50mm | 100mm |
Motor Power | 0.77 kW | 1.1kW |
Outside dimension (l*w*h) | 640×720×1500 mm | 780×720×1950 mm |
Weight | 2000kg | 2500kg |
For more detailed specifications please feel free to contact with us
