Application

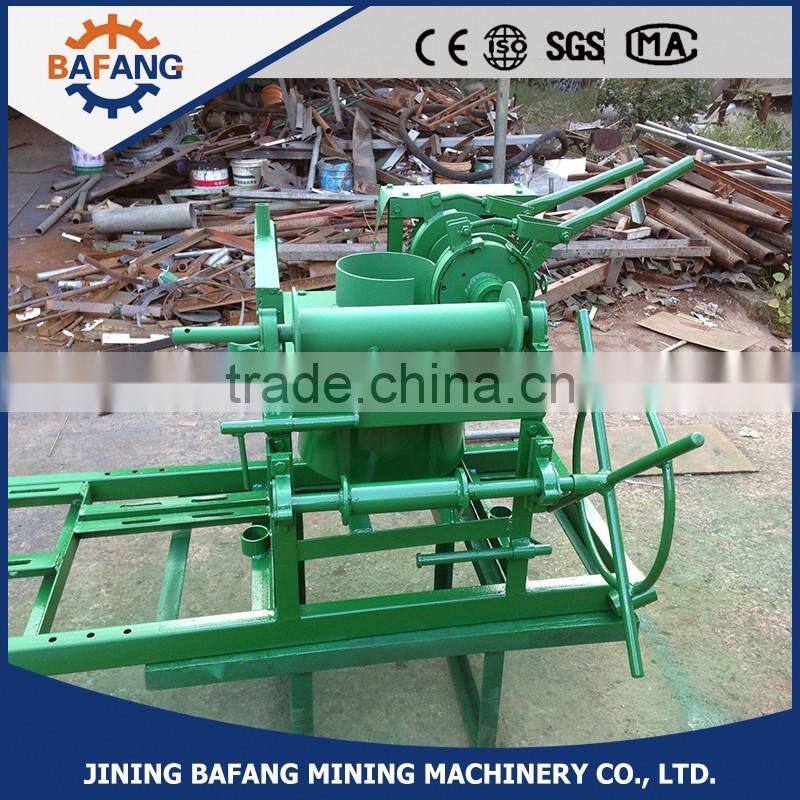

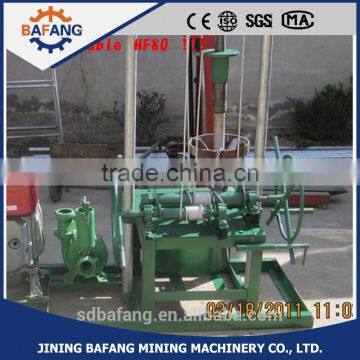

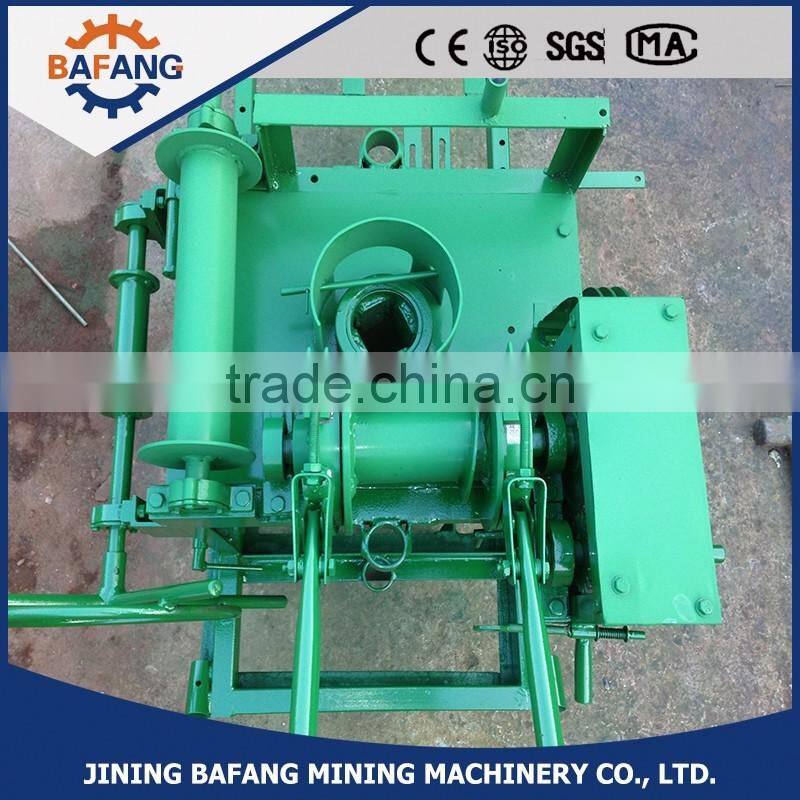

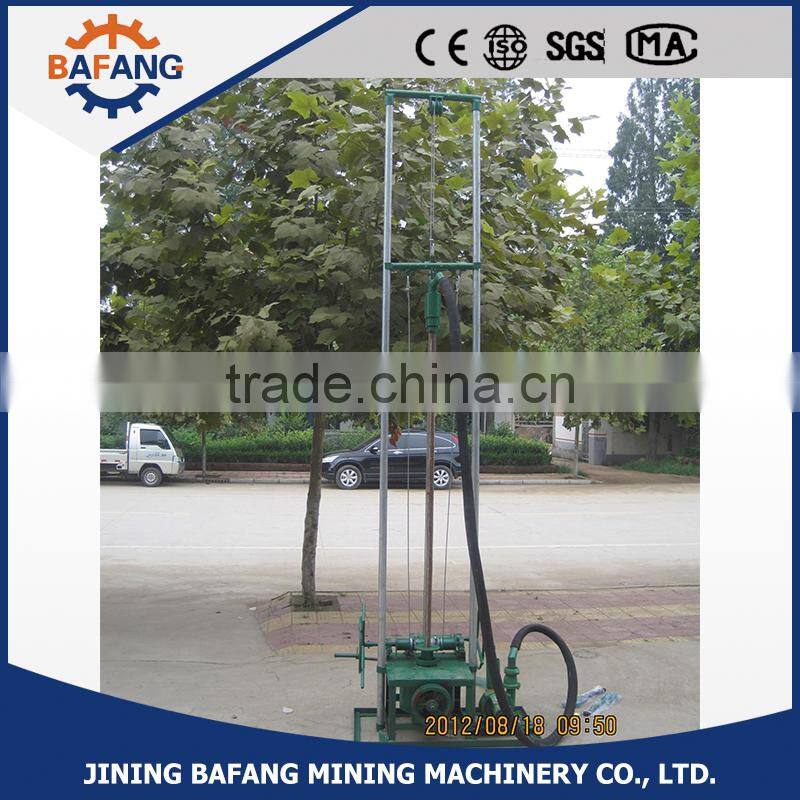

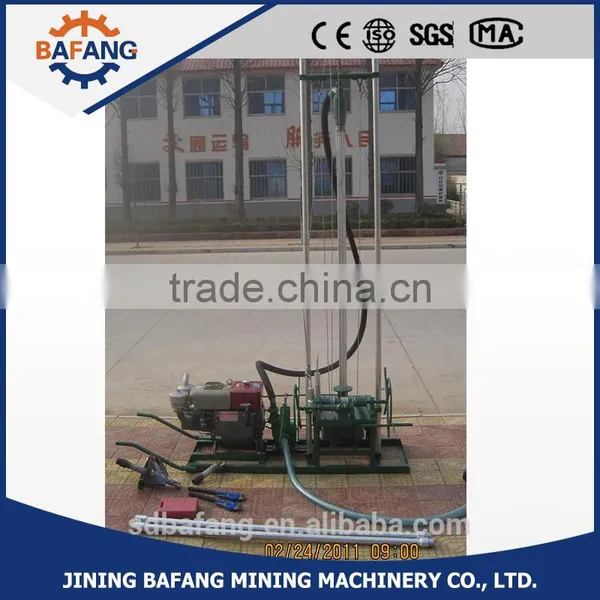

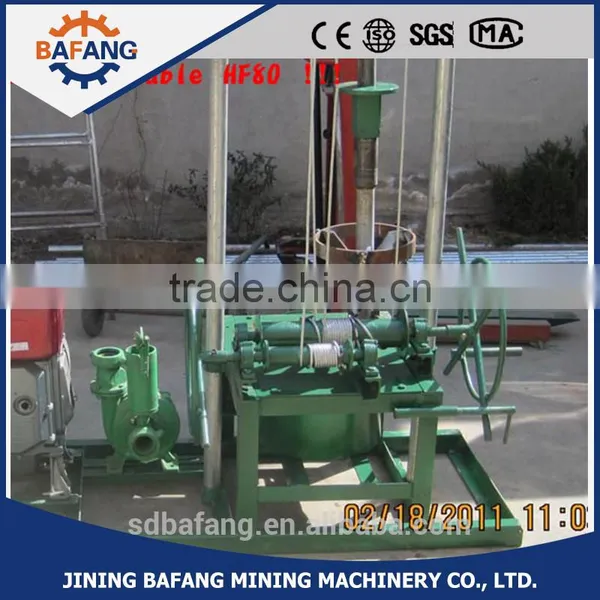

ZT300(HF80) portable water well driling rig mainly used for farm irrigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.

Features and Advantages

1. Light weight. The main engine is only weighted 0.135tons.

2. Easy to operate. Needing little experience to operate.

3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.

4. Carbide tipped drill. Can drill through hard stratum, except for thick rock layer.

5. Reducing labor intensity. Equipped with lifting mechanism.

6. High efficiency. In plain area, the drilling speed could reach 20 meters depth per hour.

7. Economical. It can be called the most economical water well drilling machine.

Technical parameter:

Drilling depth 60-80m

Drilling diameter 70-300mm

Power Engine 15HP

Overall dimension of the main engine (LXWXH) 1100X600X500mm

Weight (main engine) 135kg

Total Package 2300x860x860mm

Total weight 650KG

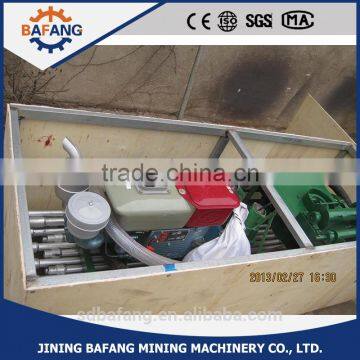

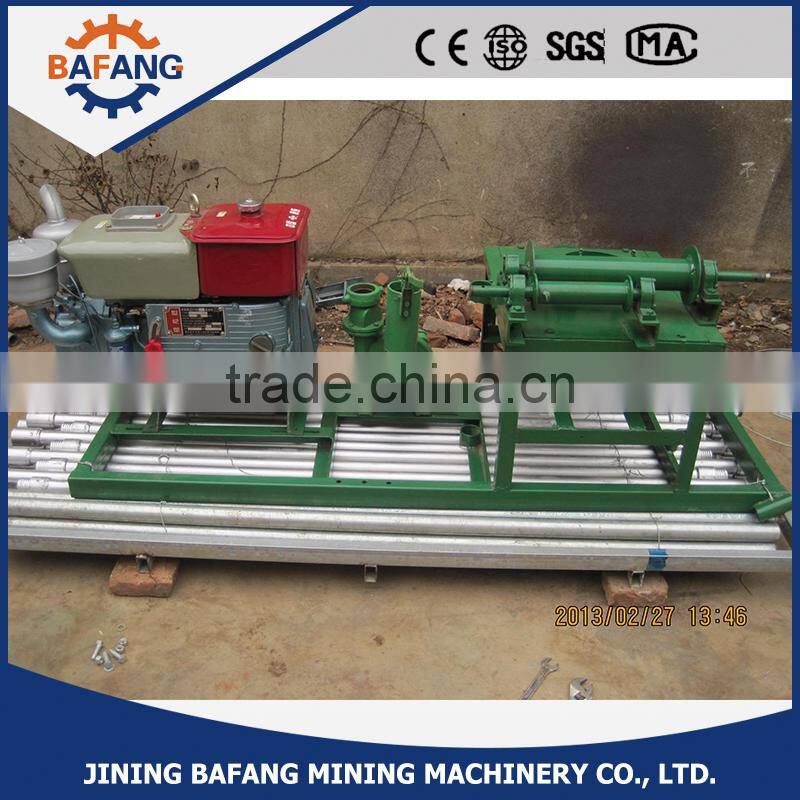

Equipment accessories:

1. Main drilling rods 2.5m/pc: 1pc

2. Drilling rods 2m/pc: 14pcs

3. Drilling rods 1m/pc: 1pc

4. If the open drilling diameter is less than 100mm, then we supply 2pcs drilling bits

5. Water pump

6. 12Hp diesel motor

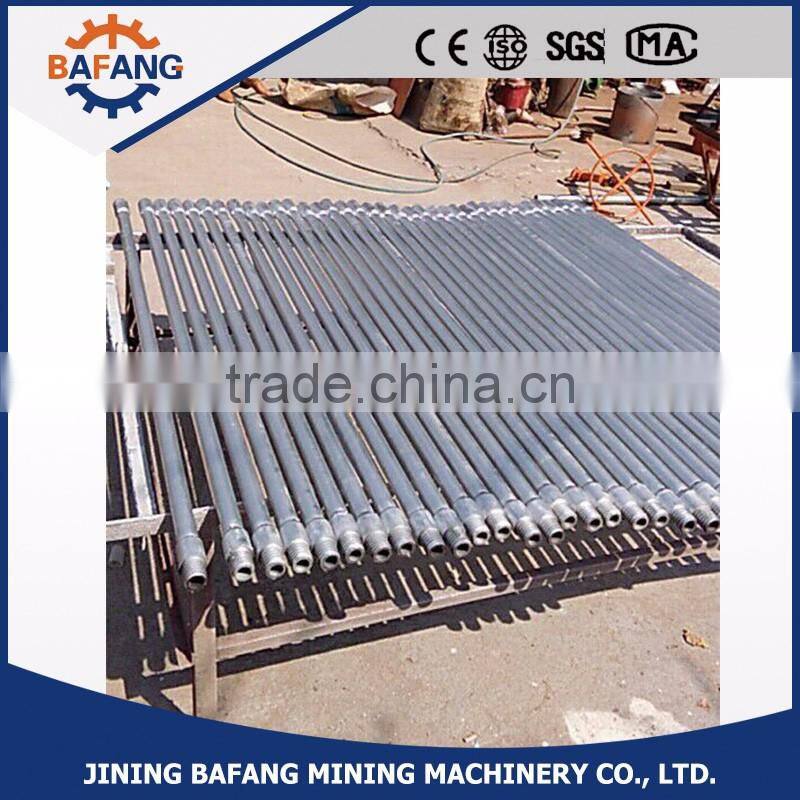

Drill rod

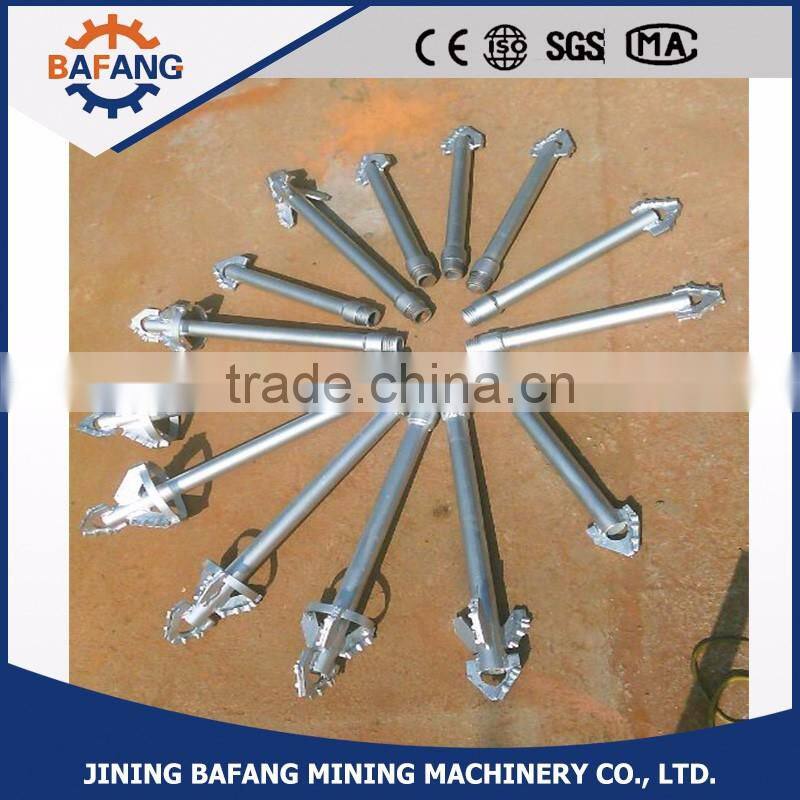

Drill bits
