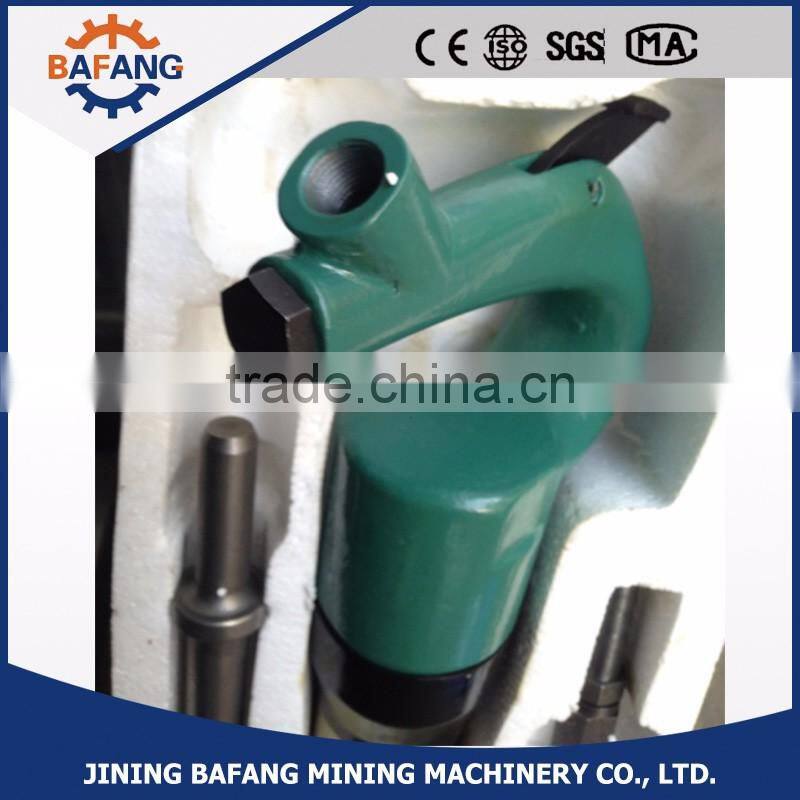

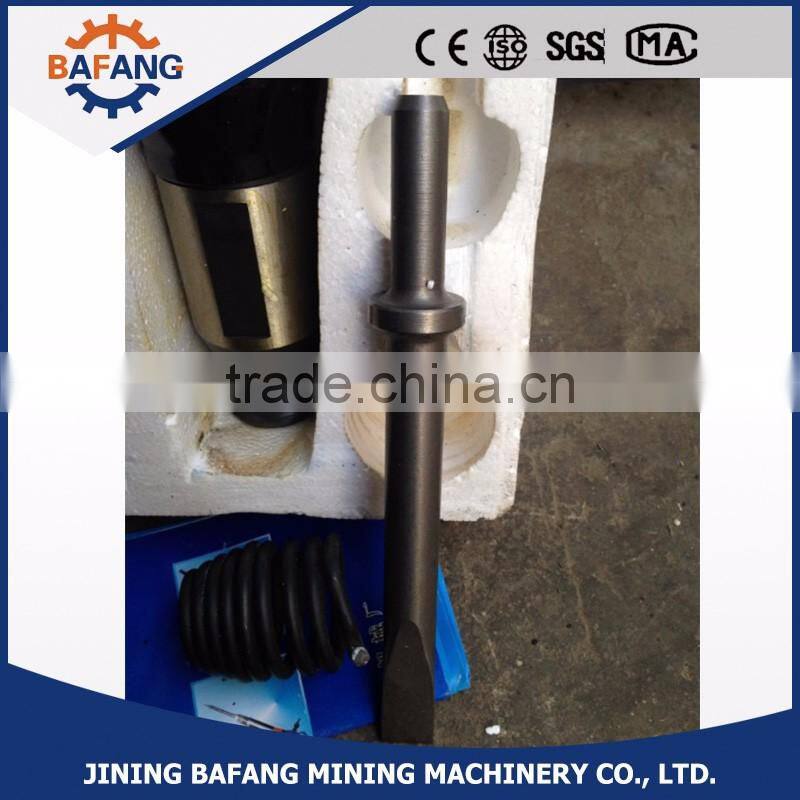

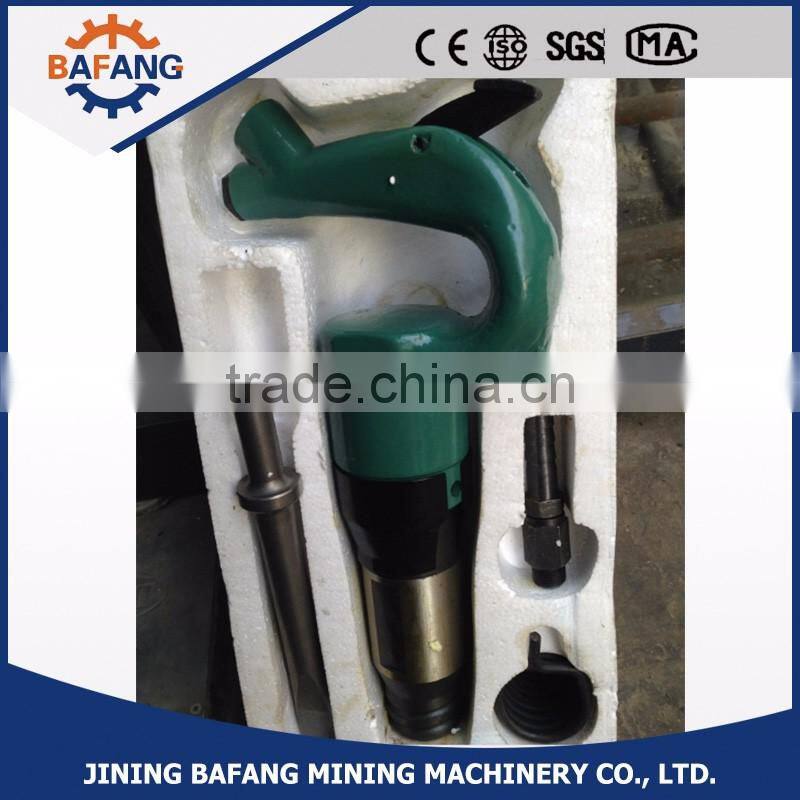

Deburr tool air pick C4/C6 pneumatic chipping hammer

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	bafang
Model Number	C6		Type	Air Hammer

Deburr tool air pick C4/C6 pneumatic chipping hammer

Applicaton

For chipping of all metal component in the industry of boiler, shipbuilding, metallurgy, especially for chipping of irregular or narrow surface.

To clean sand, chip burr, pour riser for all kind of cast.

To chip all kind of metal welding seam.

To split break, dig for all kind of construction stone.

It applies to infrastructure construction and bridge shoveling and cutting and the welding in traffic engineering

Used for hacking,breaking and chiseling large stone materials.

Used in breaking brick walls and concrete walls.

Parameter

Model	C4	C6	C7	CZ2
Overall Length	325mm	365mm	530mm	270mm
Inner diameter of hose	Φ 13mm	Φ 13mm	Φ 16mm	Φ 10mm
Cylinder diameter	30mm	30mm	36mm	25mm
Air consumption	≤18 L/S	≤21 L/S	≤23 L/S	≤ 7 L/S
Weight	4 KG	6KG	7.8KG	2KG
Specification of drill shank	Φ 175×60	Φ 175×60	Φ 24×70
Impact frequency	≥40 HZ	≥32 HZ	≥16 HZ	≥65 HZ
Impact energy	≥8 J	≥10 J	≥35 J	≥ 2 J
