Fully Automatic Paper Cake Tray Forming Machine

Product Introduction

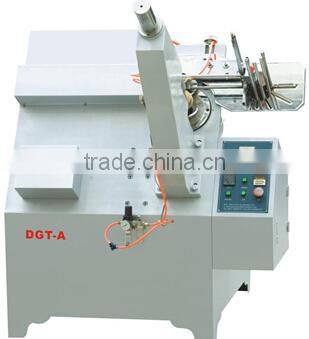

Fully automatic Paper Cake Tray Forming Machine

1.DGT Automatic Paper Cake Cup Forming Machine adopts the advanced technology introduce from Italy through digestion,integration,and self-innovation.It is the first-class level in technology at home and in the international track.

2.It employs the new technology like manipulator clipper pneumatic in controlling the paper,automatic separating paper,mould punching-forming in heat and topping.

3.It can make paper trays for cakes and aluminuim foil trays for cakes with different specifications through exchanging the moulds.

4.It is characterized by compact construction,easy to operation,higher production efficiency and regular performance.

HS. Code: 8441309000

Raw Paper Size : Φ50--Φ120 mm (open paper) (mold exchangeable);

Raw Material : Anti-oil paper(Greaseproof paper), aluminium foil paper or other;

Suitable paper weight : 15gsm--80 gsm;

Rated Productivity : 20--40 beat/minute, 15--35 pcs/beat;

Total Power : 2.5 KW (motor1.5kw, heating 1kw);

Power Source : 220V 50Hz or other required;

Total Weight : 500 Kg;

Package Size (L x W x H) : 1580 x 1480 x 1800 mm;

Working Air Source : Air Pressure: 0.6Mpa, Air Out-put : 0.3 m³/minute

Need to buy An air compressor.

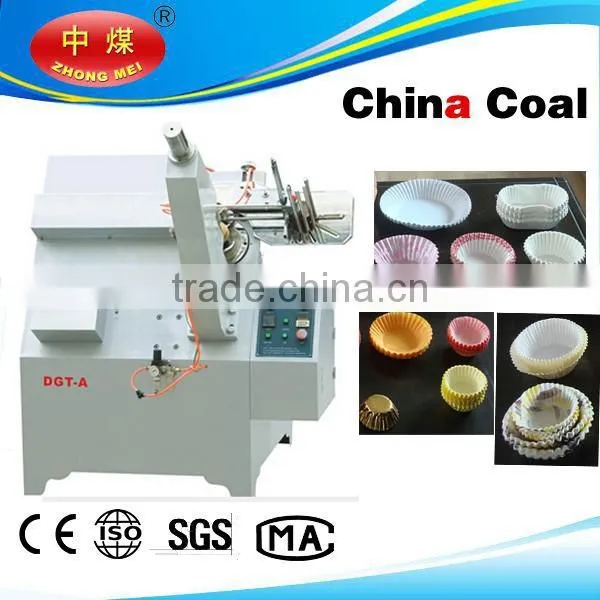

Figure Photos
