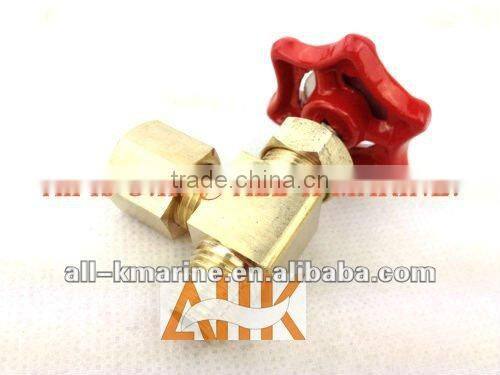

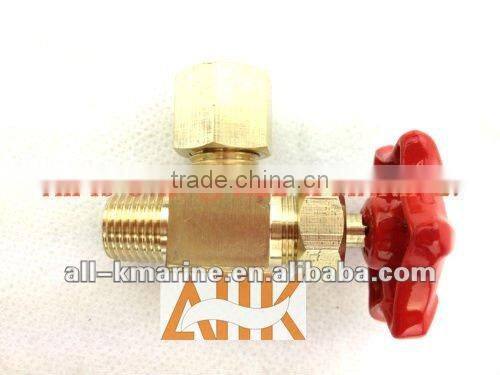

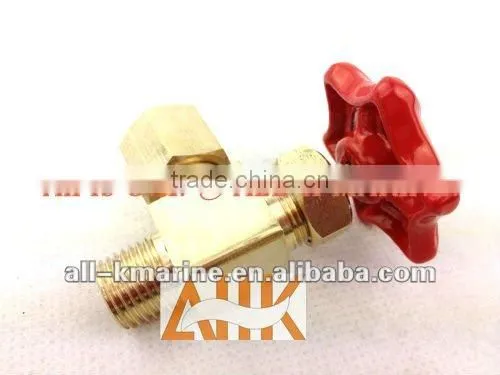

Brass Needle Angle Valves With Ring Joint Nut at Qutlet

Specifications

Brass Needle Angle Valves with Ring Joint Nut at Outlet
1.IMPA:75216-752121
2.For controllig flow of liquids or gases requirin

Brass Needle Angle Valves with Ring Joint Nut at Outlet

IMPA CODE:752116-21



1.Ring joint nut at outlet

2.For controlling flow of liquids or gases requiring close regulating.

3.Made of brass rods and brass except for the gland of "O" ring.



CODE	Nominal Size	For Tupe OD "D" mm	Thread D1	Thread D2	Length L mm	Height M² mm
752116	6x1/8	6	PF 1/4	PT 1/8	55	27
752117	6x1/4	6	PF 1/4	PT 1/4	58	27
752118	8x1/4	8	PF 3/8	PT 1/4	65	28
752119	10x3/8	10	PF 3/8	PT 3/8	73	34
752120	12x1/2	12	PF 1/2	PT 1/2	76	39
752121	14x1/2	14	PF 1/2	PT 1/2	76	40







Other models available upon request.
