Home > Industrial Equipment & Components > Valve > Ball Valve > Stainless Steel Screwed End Ball Valves

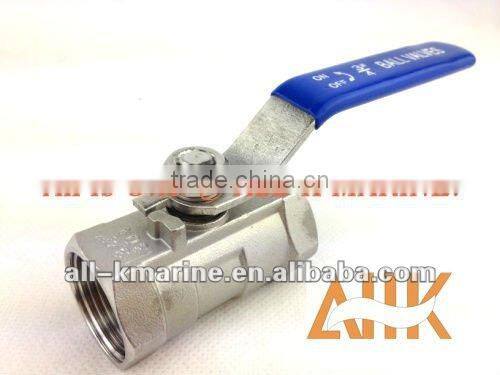

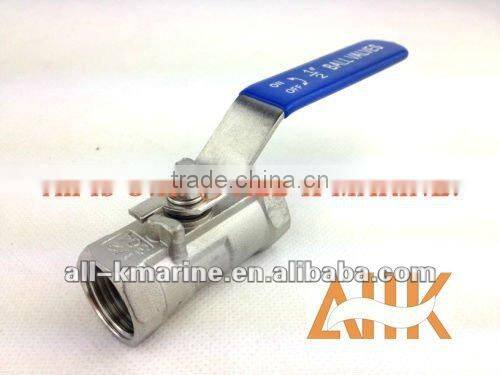

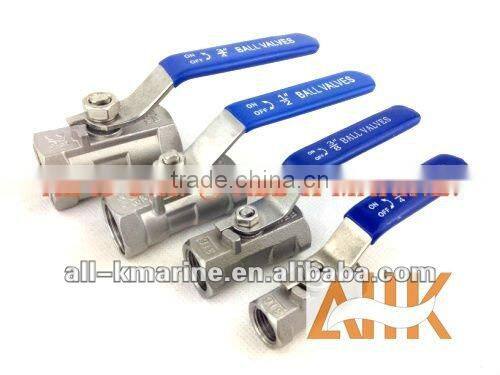

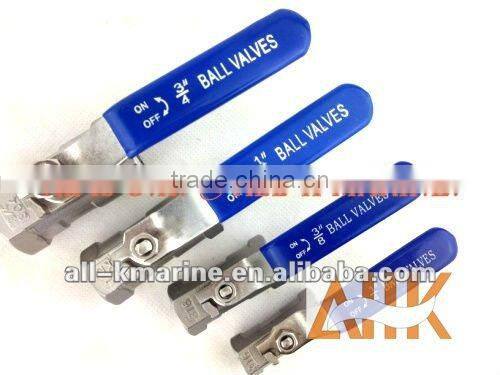

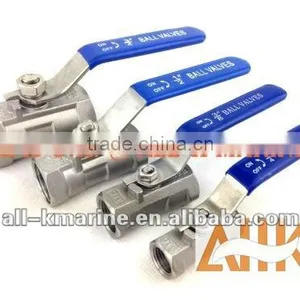

Stainless Steel Screwed End Ball Valves
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or other port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brass Needle Valves Threaded,Both Female EndsNegotiableMOQ: 1 Piece -
Brass Needle Valves Threaded,Female Ends,3/8,IMPA:752153NegotiableMOQ: 1 Piece
-
Brass Needle Valves Threaded,Female Ends,1/4,IMPA:752152NegotiableMOQ: 1 Piece
-
Brass Needle Valves Threaded,Female Ends,1/8,IMPA:752151NegotiableMOQ: 1 Piece
-
Butterfly ValvesNegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Oil
Port Size
PT 1/4- PT 2
Place of Origin
Zhejiang, China
Model Number
752411-752418
Brand Name
All-K or OEM
Specifications
Stainless Steel Screwed End Ball Valves1.Material: Stainless Steel 304,316
2.Size:PT 1/4-PT 2
3.Max working pressure:3.29mpa
Stainless Steel Screw End Ball Valves
IMPA CODE:752411-18
| Service Fluid | Oil, gas and corrosive chemical liquid |
| Max. working pressure | 3.29 Mpa [40kgf/cm2] |
| CODE | Size | Dimension mm |
||||
| d | L | L1 | L2 | H | ||
| 752411 | PT 1/4 | 5 | 40 | 19 | 60 | 31 |
| 752412 | PT 3/8 | 7.5 | 44.5 | 21.7 | 80 | 40 |
| 752413 | PT 1/2 | 9 | 54.5 | 26.5 | 80 | 42 |
| 752414 | PT 3/4 | 12.5 | 61 | 30 | 100 | 51 |
| 752415 | PT 1 | 16 | 68.5 | 34.5 | 100 | 54 |
| 752416 | PT 1-1/4 | 21 | 78 | 39 | 150 | 66 |
| 752417 | PT 1-1/2 | 24 | 82 | 41 | 150 | 69 |
| 752418 | PT 2 | 32 | 100 | 50 | 150 | 75 |
