No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar

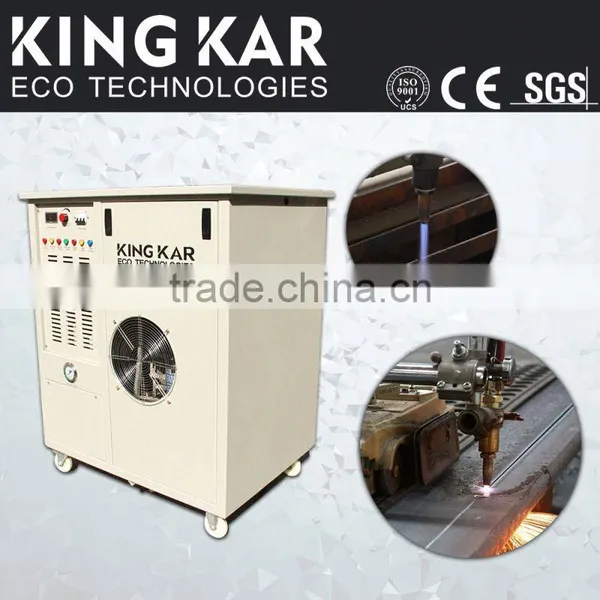

No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-1

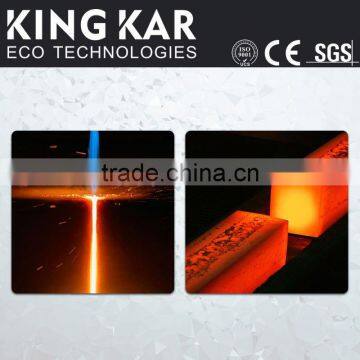

No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-2

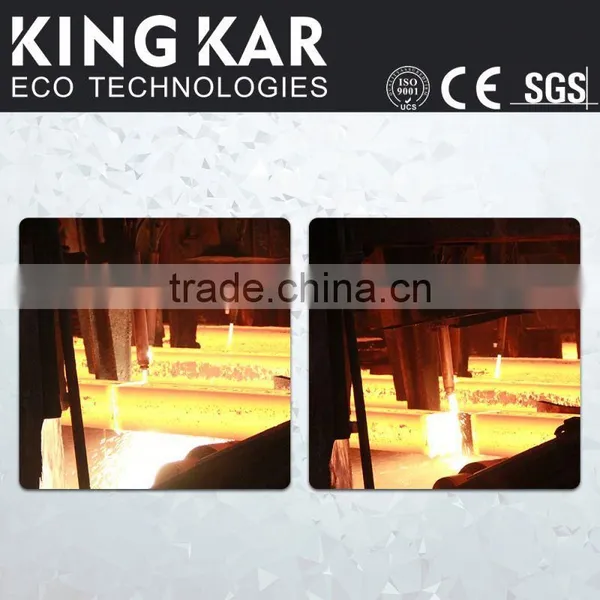

No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-3

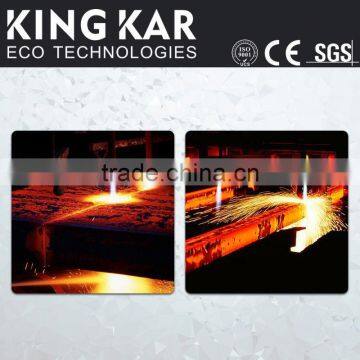

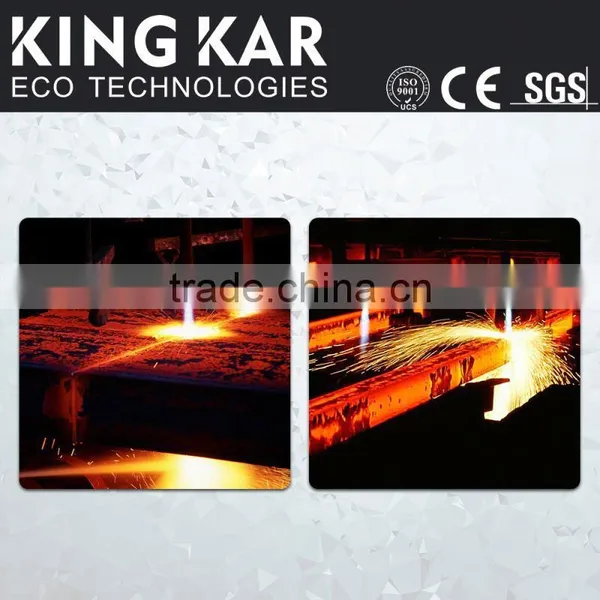

No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-4

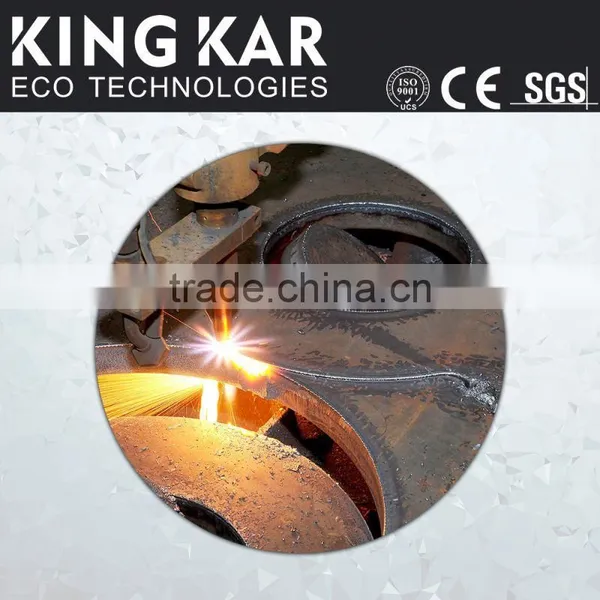

No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-5
No Acetylene, no Propane,JUST WATER for Cutting Steel Merchant Bar photo-6
US$ 8,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
KingKar
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hunan, China
Brand Name KingKar
Model Number KingKar7000
Voltage 380V
Rated Power 22KVA
Dimension(L*W*H) 1250*850*1830
Weight 560kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas







Technical parameter:



Model

Kingkar7000

Input power

3 phase 380 V (50-60) HZ±10%

Rated capacity(KVA)

22

Working current(A)

350

max.Work pressure(Mpa)

0.2

max.Relative humidity(%)

90

Rated gas production(L/H)

7000±10%

Water consumption(L/H)

3.8

Maximum cutting thickness(mm)

300

Effective perforation thickness(mm)

90

Cooling way

Air cooling

Insulation class

F

Power supply protection grade

IP21S

Flame temperature(°C)

800-3200 adjustable

Working medium

Filtered water or deionized water

Way to work

continuous

Environment temperature(°C)

0-40

Appearance size(L×W×H)mm

1250×850×1830

Weight(KG)

560



Technology Theory:

Oxy-hydrogen machine is a high-tech product in the world. It adopts water electrolysis technology to decompose hydrogen and oxygen from water under electricity,

 this machine uses hydrogen as the fuel and oxygen as the combustion-supporting gas in polishing, brazing, cutting, welding, furnaces;

Oxy-hydrogen machine is a very promising and practical equipment, friendly to environment in the meantime.



Easily procured energy sources:

Oxy-hydrogen fuel is easily procured as we can find water and electricity easily.

 It can save much energy other than using acetylene, propane, LPG, etc., for example,

each cubic oxy-hydrogen gas consumes 0.5 liter water and 3.5 KW electricity which is cheaper cost than using acetylene.



CO2 Emissions reduction:

Hydrogen is a clean energy source. Water is the only product of combustion. Hydrogen combustion produces no CO2 because the molecule contains no Carbon atom,

Hydrogen is the cleanest energy as an alternative to LPG, Acetylene gas or Natural gas.



 No acetylene, no propane,JUST WATER for cutting Steel Merchant Bar



Working features compared with traditional oxy-fuels:

As oxyhydrogen flame body is slimmer than other flame bodies, it has advantages like narrower slit, focused firepower, little heat affection area,

high heat value, faster preheating, better cutting quality.

The following is the workpiece cut by it: When welding, the welding surface is glossy, if filling a little gasoline or alcohol,

 the welding piece will be oxidation resistant.



Refund &Return policy:

We take all the responsibility during delivery. If you do not receive your item, we will refund you the full money or send you a new item according to your request.

We can accept the return item within 60 days after the buyer receives it. Once we receive the return item, then we will refund you full money.



Feedback Policy:

We will very appreciate you give us positive feedback (5 star) ASAP.  If the item you got in any problem, PLS don't hesitates to contact us.

We will do our best to help solve the problem

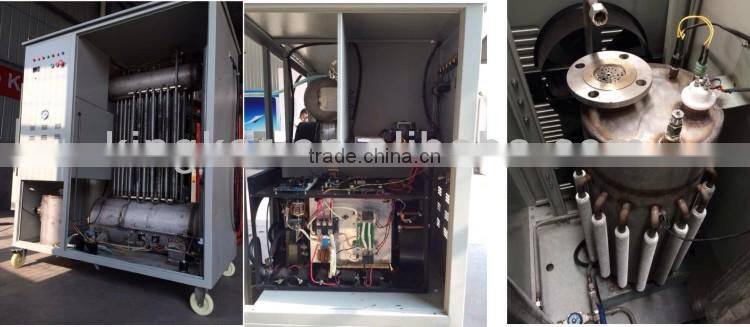

7000Lph cutting machine:





Certification we have achieved:



No acetylene, no propane,JUST WATER for cutting Steel Merchant Bar

No acetylene, no propane,JUST WATER for cutting Steel Merchant Bar



Package:

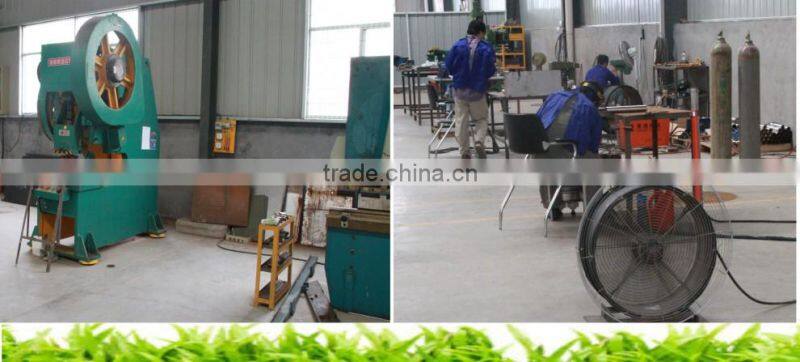

Our factory:
