fog machine

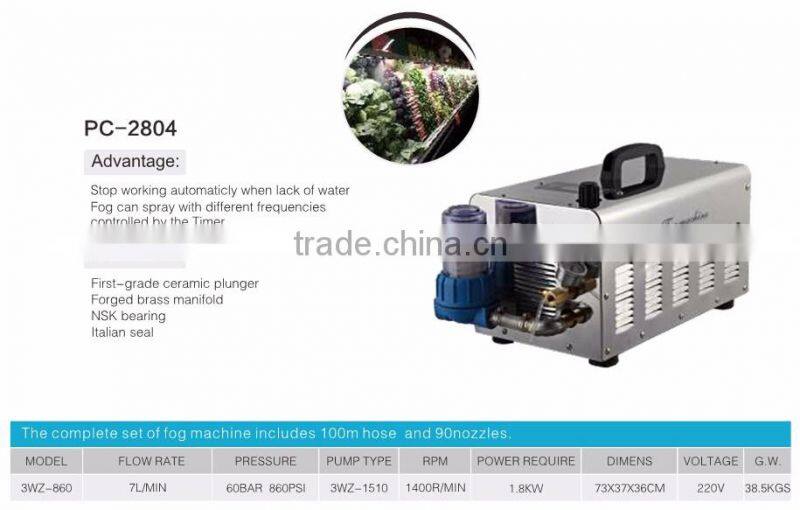

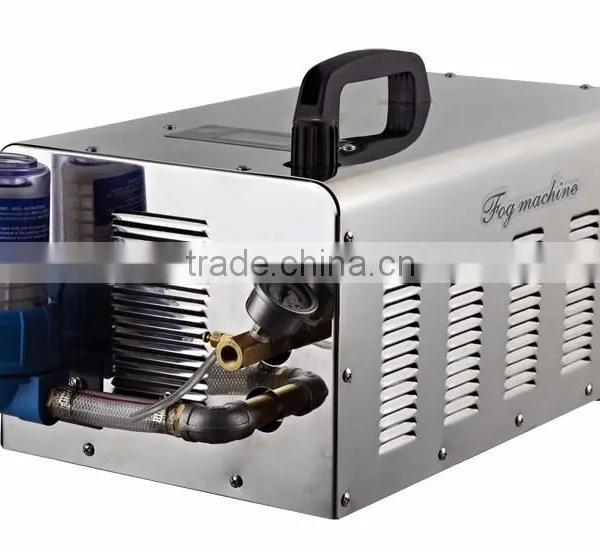

Misting cooling system 7L water fog machine for industrial use
2. Ceramic plunger Italy seal NSK bearing stainless steel cover
4. Fog can spray at different frenquency controlled by the digital timer
1. Pump Type: crank Pump / plunger pump
2. Flow Rate: 7L/min
3. Power: 1.5KW, single phase(can do different voltage and rate)
4. Motor Speed: 1400RPM
5. Tubing Size: 3/8" (9.52mm)
6. Working Pressue: 60bar
7. Droplet size: 5-40 Micron
9. Accessories List: 100m hose, 90pcs of 0.15mm nozzles, 91pcs of brass connectors
Functions:
1. Cooling
Residential cooling, outdoor cooling, commercial place cooling
2. Humidification
Industrial, agricultural and horticultural: green house, garden, livestock farming

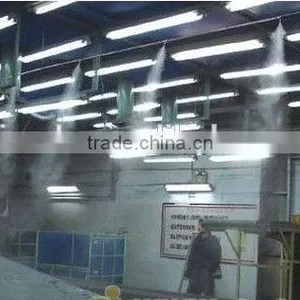

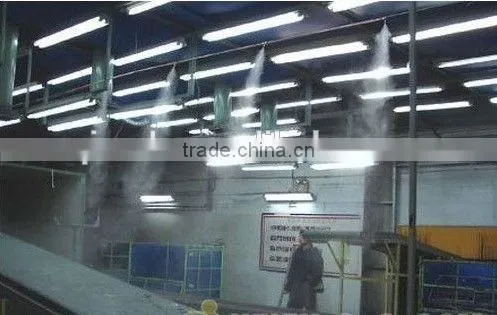

3. Dedusting and Deodorization
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
4. Insect Control
Please use water-soluble chemical to kill insect.
We can also supply all the accessories separately, such as nozzle, connectors, hose and hose cutter.
1. Fog Nozzle:
Orifice diameter: 0.1mm up to 0.5mm, usually we offer 0.15mm
Working pressure: 60bar
Body material: 304ss, brass and 316ss
Orifice material: ceramic
2. 3/8 Brass Connector:
Material: brass
Nozzle thread: 10/24
Tubing Size: 3/8" (9.52mm)
3. PE Hose:
Outer diameter: 3/8"
More fog machine
Application
