Specifications
gasoline tiller, rotary tiller, tiller cultivatorDouble belt chain
23pcs, 6sets dry land blade,350/6wheel
Honda engine, 7hp,

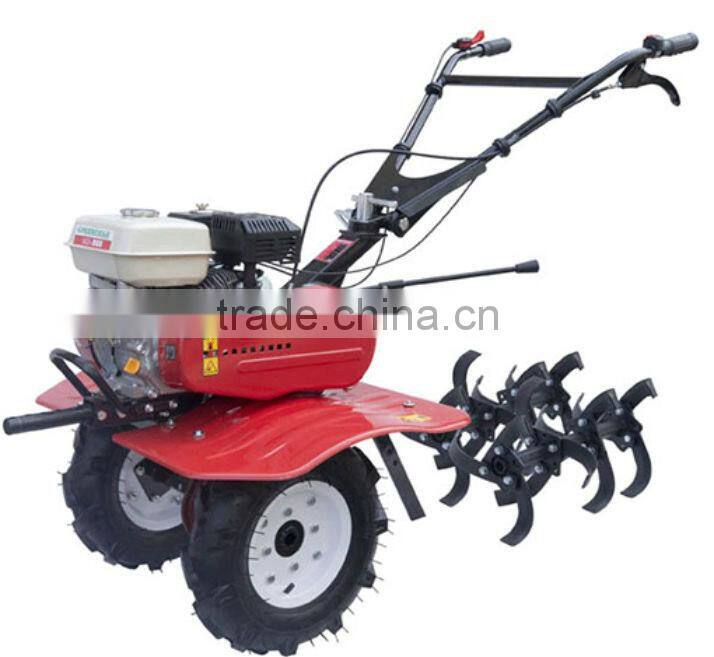

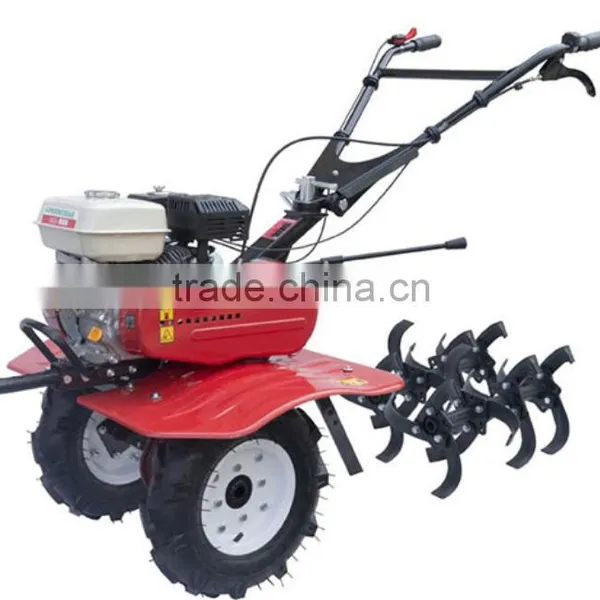

gasoline tiller , rotary tiller, tiller cultivator
Honda engine 7HP, OHV, single cylinder, air cooled
Belt chain transmission, double belts or three belts, belt drive tiller,
Resistance rod for depth tilling adjustment, tillage machinery
Engine stop on stretch
Tiller depth 10-15cm, tiller width: 70-90cm
Gearcase and walking case material: aluminum alloy ADC12
| Model | YL-1WG4.2-2J, Garden tiller | |||||
| Main Clutch Type | Ratchet type clutch | |||||
| Engine Model | YL170F/P | |||||
| Rated Power | 4.2KW | |||||
| Start Way | Recoil Start | |||||
| Fuel | Gasoline | |||||
| Consumption Rate of Fuel | ≤19kg/hm2 | |||||
| Productivity | 0.05-0.08hm2/h | |||||
| Tillage Width | 70-90cm | |||||
| Tillage Depth | 10-15cm | |||||
| Operating Speed | 0.25-0.4m/s | |||||
| G.W. | 73kg | |||||
| MEAS | 910×580×820mm | |||||

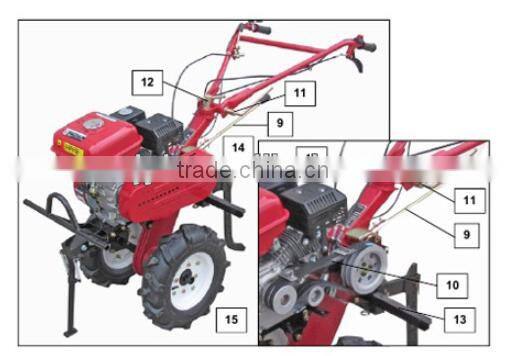

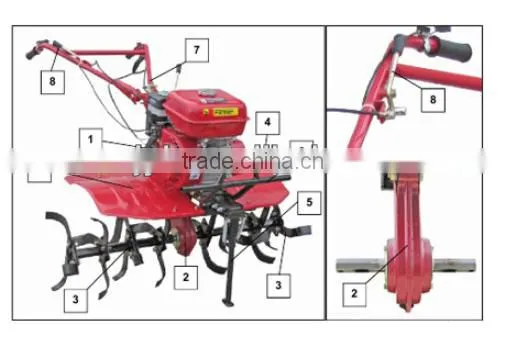

1. Honda type Engine 4 - stroke OHV OHV
2. reducer chain
3. blades (left and right) assembly
4. Protective cover (left and right)
5. front support
6. Bumper front for hanging try lande blades
7. control handle
8. Handle tension V-belt drive
gasoline tiller
9. Gear lever
10. V-belt drive
11. Adjustment knob and the vertical position of the control handle
12. Adjustment knob and the horizontal position of the control handle
13. Prop guard
14. Belt guard
15. Rubber wheel assembly

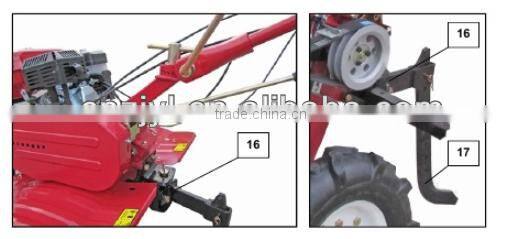

16. tow device
17. Depth stop plowing, resistance rod
Optional Blades&Wheels for, tiller, tillage machine
Tiller parts, rotary cultivator parts, garden tiller parts:
24pcs,6sets can change into 32pcs, 6+2sets
350/6 wheel can change into 400/8 or 400/10 wheel
Wheel trimmer is available for blade double sides
Why us?
1. We are factory, can provide product with competitive price and great quality
2. We save you time. U never need to find someone else in rush space when your product is in need. You can keep our offer and tell me your demands whenever you like
3. We save you money. Beside product, our ship agent provide very good ship freight and service
4. After sale service support. We guarentee our product quality, and provide problem accessory 1 year for free. Thought the problem is a seldom case.
5. Customerized design and service. We support your sale and offer your needs as tailored
6. Product range, we have five ranges of related produce, including Tiller, Water pump,Generator,Power sprayer and Engines. U never worry to gather different model for same container. We can provide satisfying product instead.
7. 10pcs above can be sent as trial order for sample test. 7 days sample delivery time
Production Line for, tilling machine, farm rotary tiller, mini tiller,:
cultivator, Wooden Package, for tiller, rotary cultivator
CE Certificate, cultivator, tilling machine
cultivator, mushroom cultivation, cultivator parts, mini cultivator, rotary cultivator, power tiller,
gasoline tiller, garden tiller, small rotary tiller, tiller for sale, tillage machine motoblock
