Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe

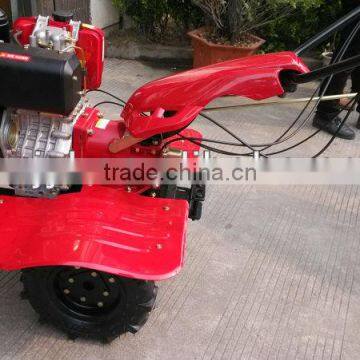

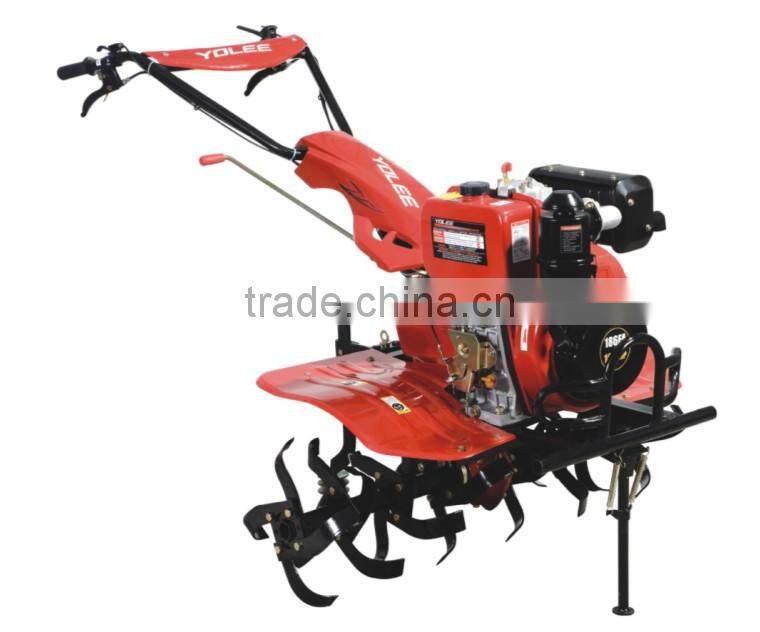

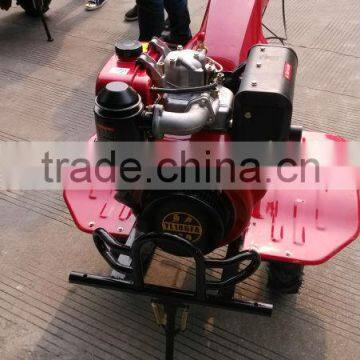

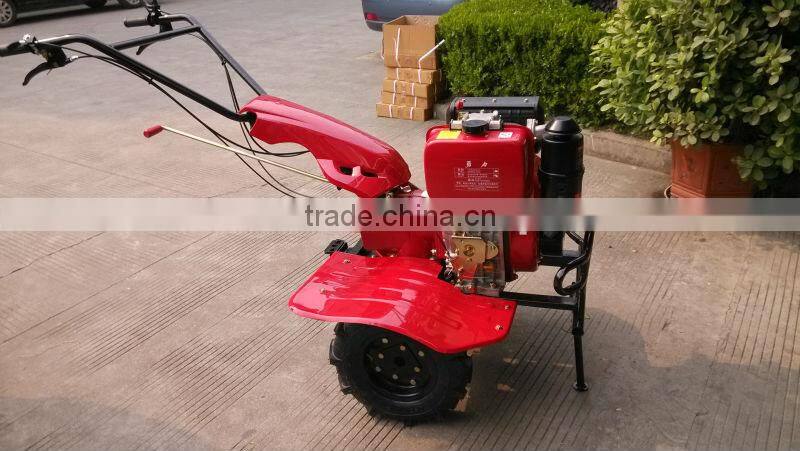

Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe photo-1

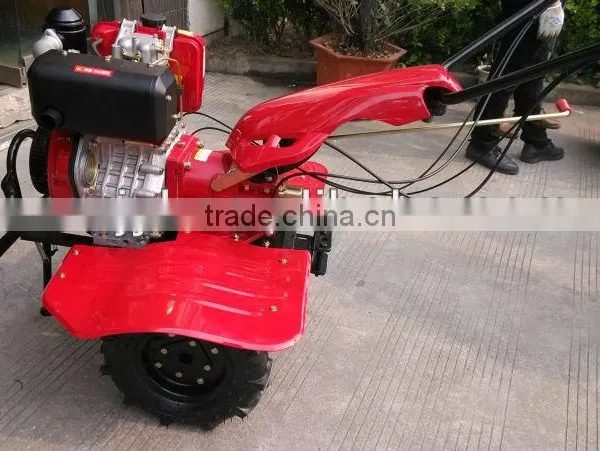

Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe photo-2

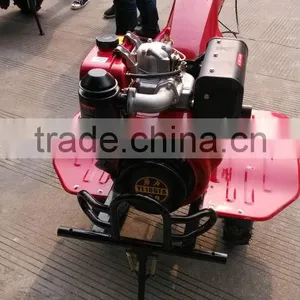

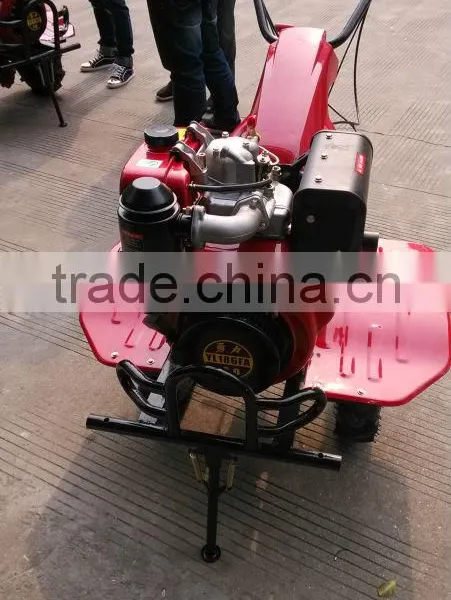

Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe photo-3

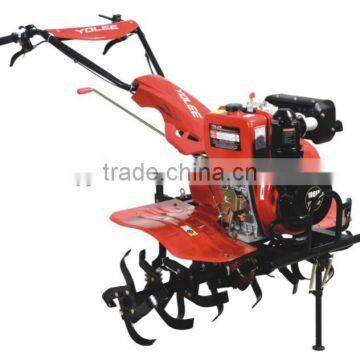

Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe photo-4

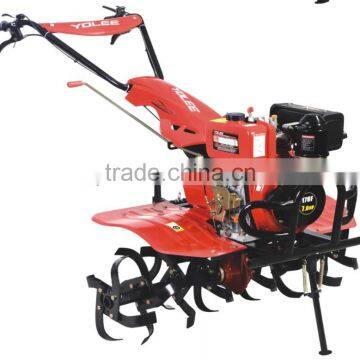

Mini Tiller Rotary Cultivator Power Tiller Rotary Tiller . Motor Hoe photo-5
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Farm Cultivator
Power Type Diesel
Power(W) 4KW
Certification 3C CE ISO9001
Warranty ONE YEAR
Use farming,gardening
Place of Origin Zhejiang, China
Brand Name YOLEE
Model Number YL-1WG4.0C
Weight 130KGS
Dimension(L*W*H) 910*580*820MM

Specifications

Diesel rotary tiller
1)7HP Diesel engine
2)High porformance ,Low fuel consumption
3)Fast delivery, low price,high quality


FAQ



1:Terms of shipment:

15-30days after received customers’ deposit .

we provide shipment services ,

we can shipment cargos to anywhere port ..



2:Terms of payment:

we made deal by T/T .

if the cargos is not fit one container :

total amount remittance before shipment .

if the cargos is fit one container :

30% in advance with ocean freight as deposit ,50% balance amount after received B/L copy .

For bank details ,pls contact with our company after confirm the orders .



3:Do you have some certificate ?

We already though the ISO9001/2000, CE ,ISO9001 ,etc...



4:For sample orders .

We also accept sample orders ,the samples charges and freight charges be paid by customers ,payment by T/T or Paypal is no problem ..

5:OEM order is no problem ..


6:Control quality

we will pass strict  inspection  before  they  go  out  one  by one

7:Energy conservation and emission reduction

Emission reduction measures :Strengthening techniques to increase sampling frequency, strictly checks

Emission reduction targets : Accord with Europe and the United States and most national standards

8:Trade & Market

Mini tiller rotary cultivator Power tiller Rotary tiller . motor hoeMini tiller rotary cultivator Power tiller Rotary tiller . motor hoe                 YOLEE BRAND   - THE BEST CHOICE FOR YOU

Rotary tiller, Diesel rotary tiller, Mini diesel rotary tiller, tiller, diesel tiller, mini tiller, diesel mini rotary tiller

Cultivator Accessories/ Tools:

walking wheel:400-8mm type  ,500-12mm type, 600-12mm type

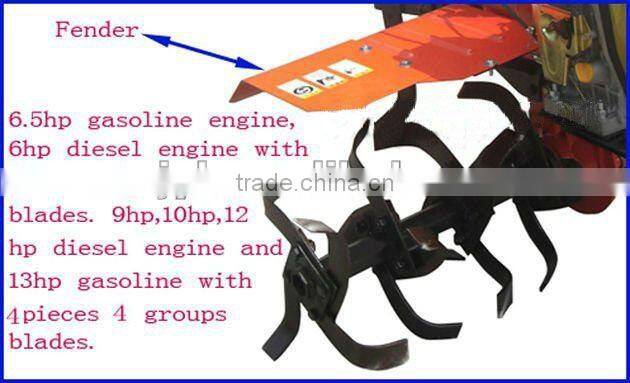

Blades and ditch

Strong wooden case



Model YL-1WG4.0C
Tiller Transmission Gear driving
Clutch Wet friction plate
Gear Shifting -1,0,1,2,
Productivity(m2/h) ≥400
Tilling Depth(mm) 120~300
Tilling Width(mm) 950~1050

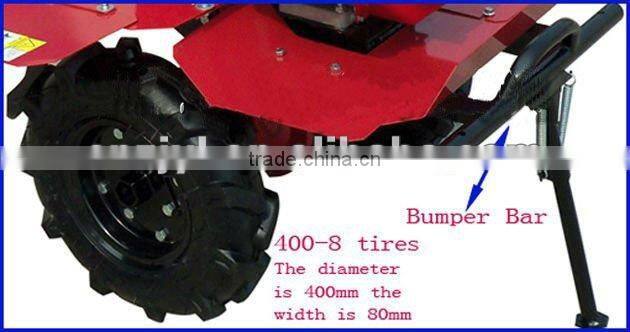

Tyre size(mm) 400-8
Net Weight(kg) 105
Dimension(mm) 920x820x580
Engine Engine Model 178F
Engine Type diesel direct injection,Single Cylinder,air cooled,4-stroke,vertical
Horse Power/Rotary Speed(rpm) 7HP/3600
Power 3.6kw
Max. power 4kw/3600
Bore x stroke(mm) 78x62
Compression Ratio 1 9:1
Spark plug gap(mm) 0.7 to 0.8
Fuel consumption(g/kw.h) 280
Fuel Tank Capacity(L) 3.5
Displacement(ML) 296
Starting Recoil start
Tool Type(mm) 40-8mm
Tilling Depth(mm) 200-300
Tilling Scope(mm) 950-1200
Others Certificate CE  ISO9001
Package size(mm) 920x820x580
40HQ loading 156 sets






As a rotary tiller, it can do rotary tillage and weed work both in paddy and dry fields with  higher efficiency and better performance.

 Application scope :dry fields,paddy and dry fields . And it can also sow and fertilize and plough when conncted with corollary equipment like sower and fertilizer ,reversible plough ,ect









Characters of the Machine:

1. The machine is compact, light with high working stability. It is easy to operate, and women can also operate it with facility.

2. It is flexible. The handles of the machine are adjustable according to the height of the operator and the needs of the terrain so that it can improve work quality and make the operator more comfortable.



As a good  China tiller supplier, we have below advantage:

1. Good quality and competitive price

2. OEM service is available

3. SAMPLE is available

4. Fast and on time delivery

5. 6 month warranty

6. With Strong technical support, professional service, we aim for long term cooperation with you.





 Mini tiller rotary cultivator Power tiller Rotary tiller . motor hoe



 Mini tiller rotary cultivator Power tiller Rotary tiller . motor hoeMini tiller rotary cultivator Power tiller Rotary tiller . motor hoeMini tiller rotary cultivator Power tiller Rotary tiller . motor hoe



Small Tips
a.When transporting the tiller, turn the fuel valve OFF and keep the tiller level to prevent fuel spillage. Fuel vapor or spilled fuel may be ignited.
b.Be sure the clutch is disengaged and the shift lever is in the neutral position to prevent sudden uncontrolled movement when the engine starts. The clutch is engaged by pulling in the clutch lever and disengaged by releasing the lever.
c.Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter.
d.Allowing any one to operate this tiller without proper instruction may result in injury.
e.To prevent damage, check the tiller for any signs of damage or other faults each time the tiller is used after it has been operated.
