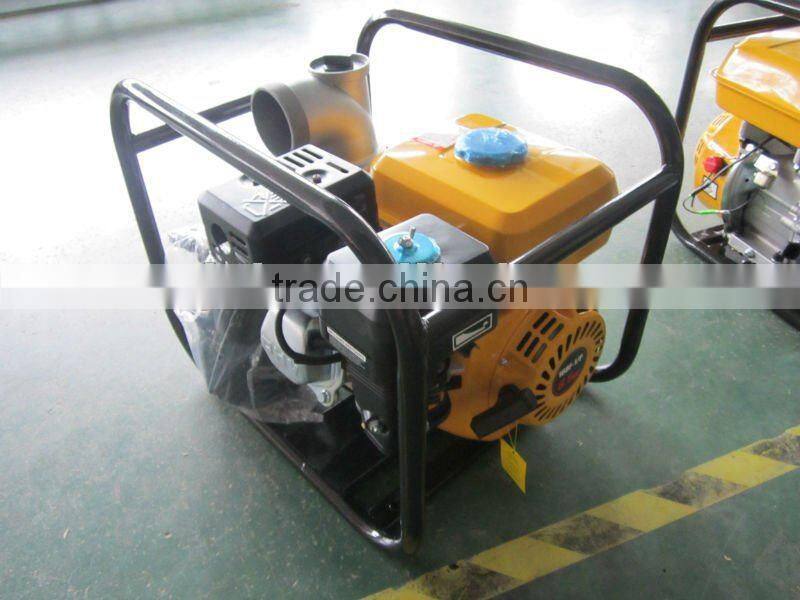

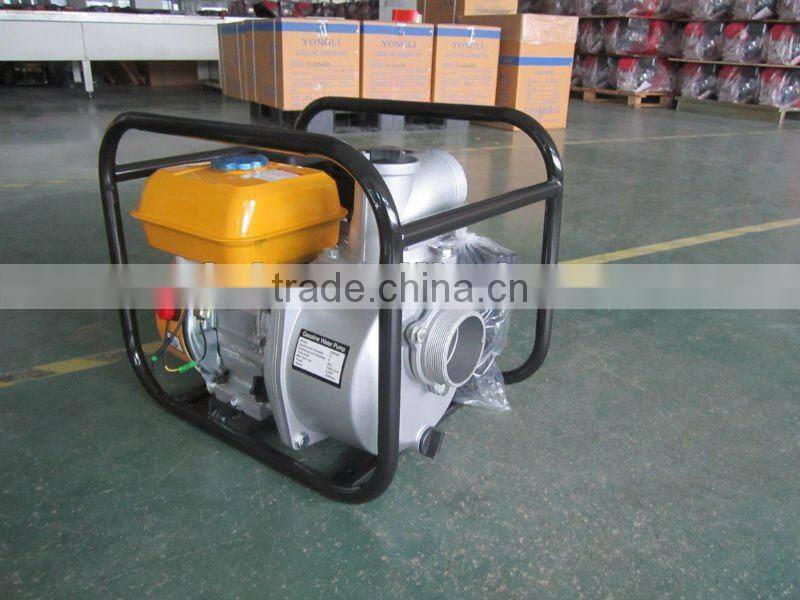

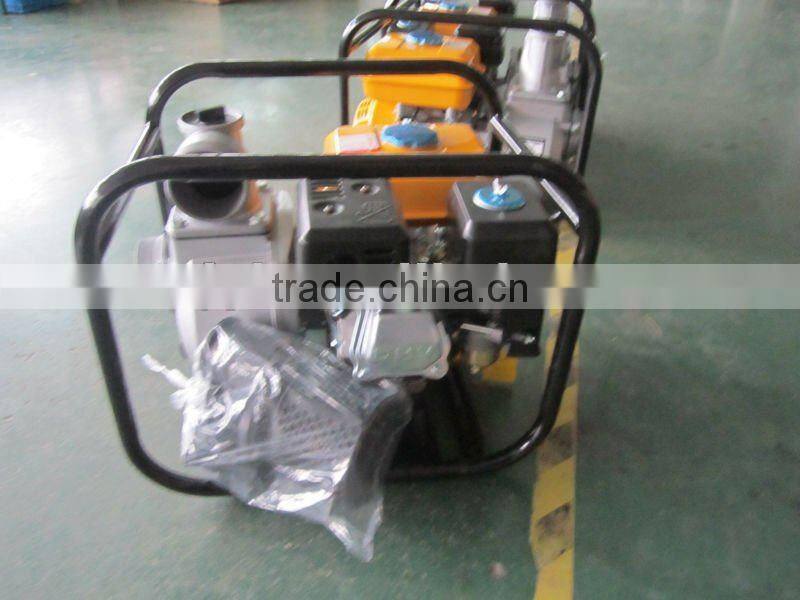

Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Petrol Water Pump /gasoline Water Pump With Honda Engine
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOLEE
Model Number:
YL-GWP30
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
YOLEE
Model Number
YL-GWP30
Theory
Centrifugal Pump
Structure
Piston Pump
Usage
Water
Power
Other, Hydraulic, honda engine
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
Low Pressure
Application
Fire
Specifications
Honda Water Pumps:1. half a year warranty
2.Easy maintenance
3.Used for irrigation and horticulture
4.Fuel Tank:3.6L
Introduction:
* Powered by air cooled 4-stroke honda engine
* Aluminum alloy high pressure easing
* High quality and mechanical sealed equipment
* Compact structure ,light weight,easy operation
* Easy maintenance.
Honda Engine
1) Type: 1-cylinder, 4-stroke, air-cooled gasoline engine
2) Work capacity: 196cm³
3) Max. Output: 6.5horsepower/3600rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil/Electric
6) Fuel tank capacity: 3.6L
7) Continuous operating time: 5hours
8) Engine oil system capacity: 0.6L
Honda engine advantage:
1.iron camshaft
2. With oil alert
3. broker cylinder crankshaft
Water Pump:
1) Diameter of outlet: 3inch
2) Max. Delivery lift:30
2) Suction height: 8m
3) Max. Water displacement: 30m³ /hr
Size and weight:
1) Over dimension(L*W*H): 510*378*410mm
2) Dry weight:24kg
| Type | WP30 |
| Suction & discharge port diameter (mm) (in) | 80(3") |
| Rated capacity (m3/h) | 30 |
| Rated total head (m) | 8 |
| Self-priming time (s/4m) | 100 |
| Max. suction head (m) | 8 |
| Rotation speed (r/min ) | 3600 |
| Fuel Tank Capacity(L) | 3.6 |
| Overall dimension (mm)(L×W×H) | 510×378×410 |
| Net weight (kg) | 30 |
| Engine model | GX200 |
| Type | Air-cooled 4-stroke gasoline |
| Max.Output (Hp) | 6.5 |
| Rated speed (r/min)Displacement (cm3) | 3600 |
| Starter system | Recoil starter |
.

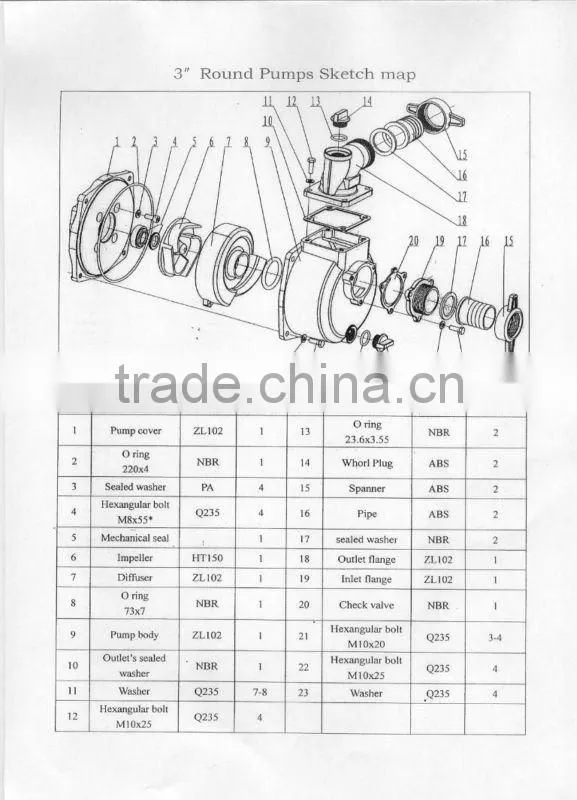

pump curve and honda engine drawing
