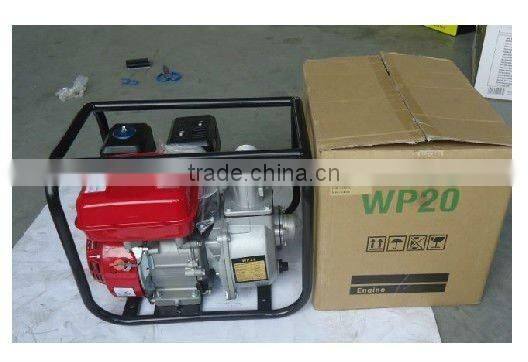

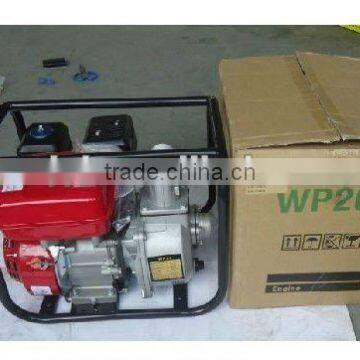

Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > GX200 6.5HP,Four Stroke,Honda /Petrol Water Pump
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOLEE
Model Number:
YL-GWP20
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
YOLEE
Model Number
YL-GWP20
Theory
Centrifugal Pump
Structure
Piston Pump
Usage
Water
Power
Other, Hydraulic, honda engine
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
Low Pressure
Application
Fire
Specifications
Honda Water Pumps:1. half a year warranty
2.Easy maintenance
3.Used for irrigation and horticulture
4.Fuel Tank:3.6L
Introduction:
* Powered by air cooled 4-stroke honda engine
* Aluminum alloy high pressure easing
* High quality and mechanical sealed equipment
* Compact structure ,light weight,easy operation
* Easy maintenance.
Honda Engine
1) Type: 1-cylinder, 4-stroke, air-cooled honda engine
2) Work capacity: 196cm³
3) Max. Output: 6.5horsepower/3600rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil/Electric
6) Fuel tank capacity: 3.6L
7) Continuous operating time: 5hours
8) Engine oil system capacity: 0.6L
Honda engine advantage:
1.iron camshaft
2. With oil alert
3. broker cylinder crankshaft
Water Pump:
1) Diameter of outlet: 3inch
2) Max. Delivery lift:30
2) Suction height: 8m
3) Max. Water displacement: 30m³ /hr
Size and weight:
1) Over dimension(L*W*H): 510*378*410mm
2) Dry weight:24kg
.
| Model | WP20 | WP30 | WP40 | WP15 | |
| WATER PUMP | Suction, discharge port diameter [mm(in)] | 50(2" ) | 80(3" ) | 100(4" ) | 40(1" ) |
| Total head lift (m) | 26 | 26 | 28 | 50 | |
| Max suction head (m) | 8 | ||||
| Dischage capacity (m3/hr) | 22 | 30 | 40 | 10 | |
| ENGINE | Enigine model | 168F | 168F-1 | 188F | 152F |
| Speed (rpm) | 3600 | ||||
| Type | Single-cylinder, vertical, 4-stroke air-cooled petrol engine Recoil | ||||
| Displacement (cc) | 163 | 196 | 389 | 98 | |
| BoreXstroke (mm) | 68x45 | 68x54 | 88x64 | 52x46 | |
| Starting system | Recoil | ||||
| STANDARD FEATURES | Oil alert | yes | yes | yes | yes |
| Connecter of infall, Connector of outfall | yes | yes | yes | yes | |
| Fiffer | yes | yes | yes | yes | |
| Seal ring | yes | yes | yes | yes | |
| Hoop | yes | yes | yes | yes | |
| OPTIONAL FEATURES | Luxury big fuel tank | optional | optional | optional | optional |
| DIMENSIONS | Dimension (LxWxH)(mm) | 510*378*410 | 510X378X410 | 635× 480× 590 | 515× 378× 410 |
| Dry weight (kg) | 22 | 24 | 44 | 20 | |
Honda engine drawing and pump curve
