Diesel Generator .Digital Display . Remote Control

Diesel Generator .Digital Display . Remote Control photo-1
Diesel Generator .Digital Display . Remote Control photo-2
Diesel Generator .Digital Display . Remote Control photo-3
Diesel Generator .Digital Display . Remote Control photo-4
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOLEE
Model Number:
YL-D6700LES
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name YOLEE
Model Number YL-D6700LES
Output Type AC Single Phase
Speed 300rpm/min
Frequency 50HZ
Rated Power 6KW
Rated Voltage 220V

Specifications

Diesel Generator
1. CE approved, powered by kama engine.
2. Noise-reducing enclosure,

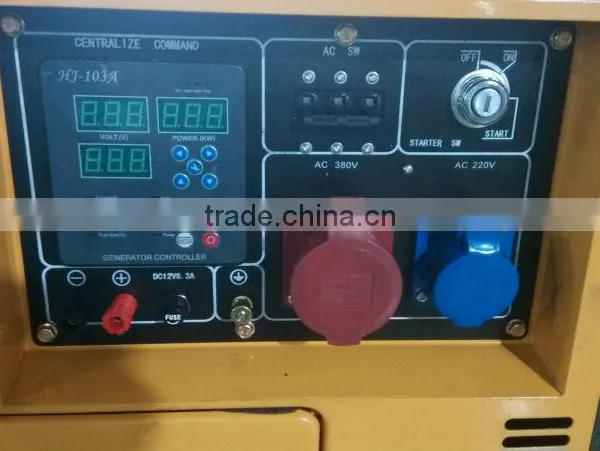

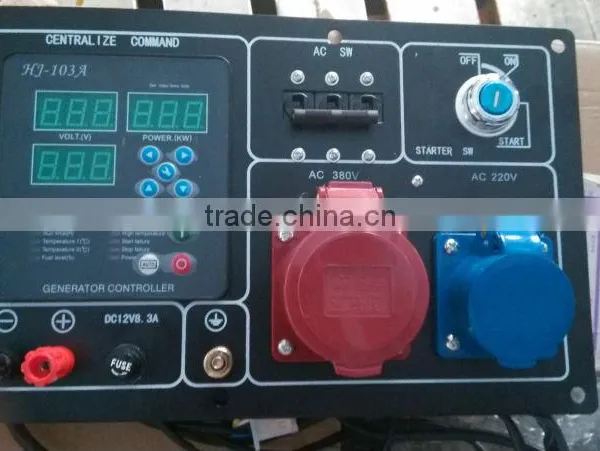

3.Digital display remote control

Model  YL-D7700LES

Rated frequency (Hz)  50  60

Rated voltage (V)  220, 230, 240, 220/110, 230/115, 240/120

Rated output power (KVA)  5.5 6

Rated rotation speed (rpm)  3000  3600

DC output  12V, 7A

Power factor cosφ

Phase number  Single phase

Excitation mode  Self-excitation Brushless

Noise level dB(A)@ 7m          (zero load - full load)  72

Overall dimension [mm(in)](L× W× H)  925× 520× 740



Net weight kg 160

Structure model  Low noise type with enclosure

Connection mode  Single bearing, rotor drive shaft, rigid coupling

Engine model  188F

Engine type  1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Displacement 456CC

Compression ratio  19: 01

Rated power [KW(Hp)/rpm]  6.8 (7.6)/3600

Starting system  Electric starting

Rotation direction (view from flywheel)  Clockwise

Fuel type  0 (sumber), 10 (winter) diesel oil

Lube  SAE10W30 (above CC grade)

Low oil pressure alarm system  With





Diesel generator .Digital display . remote control







Silent Diesel Generator
1. CE approved, powered by advanced air-cooled diesel engine.

2. Noise-reducing enclosure, made of high-efficient noise-proof material.

3. Ideal for home emergency use or as standby power supply.

4. Large fuel tank, ensuring hours of continuous output.

5. Advanced direct fuel injection system.

6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.

7. A variety of specially-designed control panels available for different markets.
