Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 5kw Soundproof Diesel Generator With Kama Engine

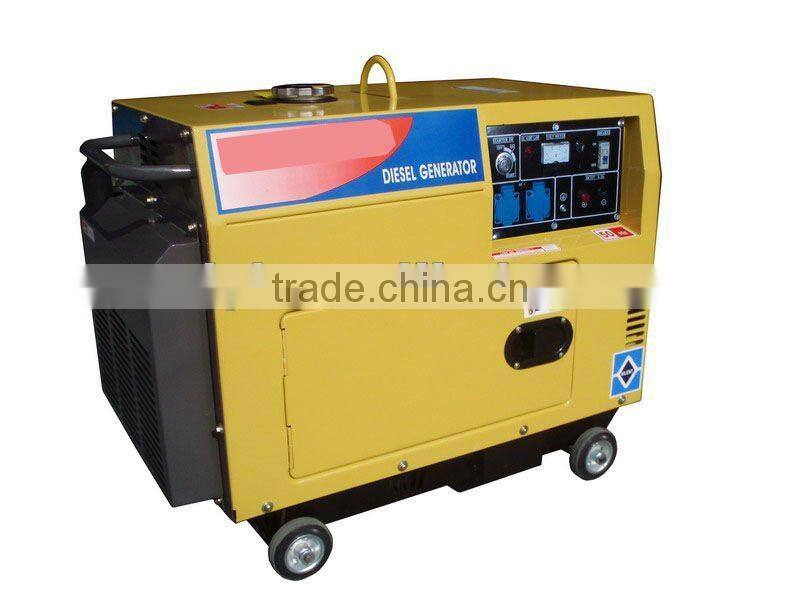

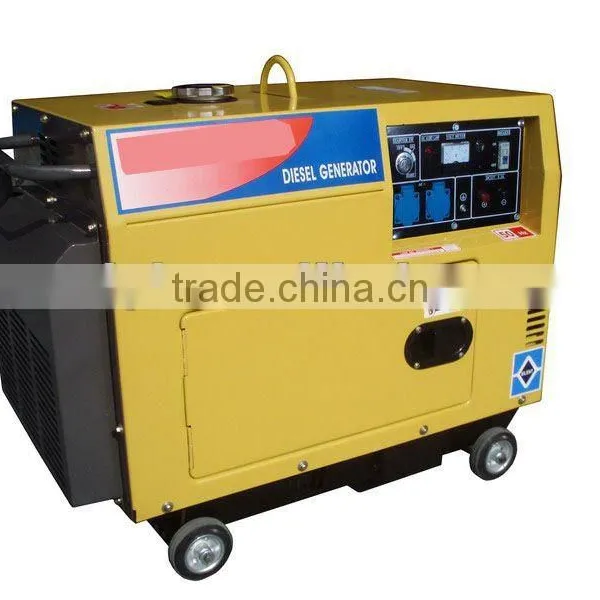

5kw Soundproof Diesel Generator With Kama Engine
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOLEE
Model Number:
YL-6500
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
YOLEE
Model Number
YL-6500
Output Type
AC Single Phase
Speed
3000rpm/min
Frequency
50hz
Rated Power
5kw
Rated Voltage
220v
Rated Current
22A
Specifications
Diesel GeneratorAir-Cooled Diesel Generator1. 5KW diesel generator set, silent type.
2. With electrical start,
Air-Cooled Diesel Generator
1. 5KW diesel generator set, silent type.
2. With electrical start,
3. With CE certification.
4. Manufacturer's price
. With CE certification and so on
2. We produce engine more the 10 years
3. Our AVRs are more steady
4. Our productions range from 2KW to 6KW
5. Our dynamotors are 100% copper
6. We can Design and increase ATS, digital panel, three phase, type output and any other equipment you need.
7. Our guarantee is 1 years.
8. Our engine passed the continual500 hours
Advantage:
Features: High thermal efficiency, Flexible, easy maintenance
Scope: Emergency supply power for small office and home
| Model | DG6600E | |
| Rated frequency (Hz) | 60 | |
| Rated voltage (V) | 220, 230, 240, 110/220, 115/230, 120/240 | |
| Rated output power (KVA) | 4.5 | |
| Max output power (KVA) | 5 | |
| Rated rotation speed (rpm) | 3600 | |
| Power factor cosφ | 1 | |
| Phase number | Single | |
| Pole number | 2 | |
| Excitation transistorized | Self-excitation, brushless | |
| ATS type | Without ATS, optional | |
| Structure type | Open-frame | |
| Fuel consumption (g/KW. h) | 340 | |
| Fuel tank capacity (L) | 12.5 | |
| Continuous running time (hr)(at rated power) | 8 | |
| Noise level (dBA@7m) (zero load ~ full load) | 75-79 | |
| Net weight (kg) | X: 95 | XE: 100 |
| Overall dimension (mm)(L× W× H) | 735× 485× 670 | |
| Starting system | X: recoil starter; XE: electric starter | |
| Fuel type | 0 (summer), -10 (winter), -35 (chill cold) diesel oil | |
| Lube | CD or better than CD | |
| Engine model | X: KD186F | |
| XE: KD186FE | ||
| Engine type | 1-cylinder, 4-stroke, air-cooled, verical, diesel engine | |
| Bore× stroke (mm) | 86× 72 | |
| Displacement (cm³ ) | 0.418 | |
| Compression ratio | 19: 1 | |
| Rated power (KW/rpm) | 6.3/3600 | |
| Rotation direction (view from the flywheel) | Clockwise | |

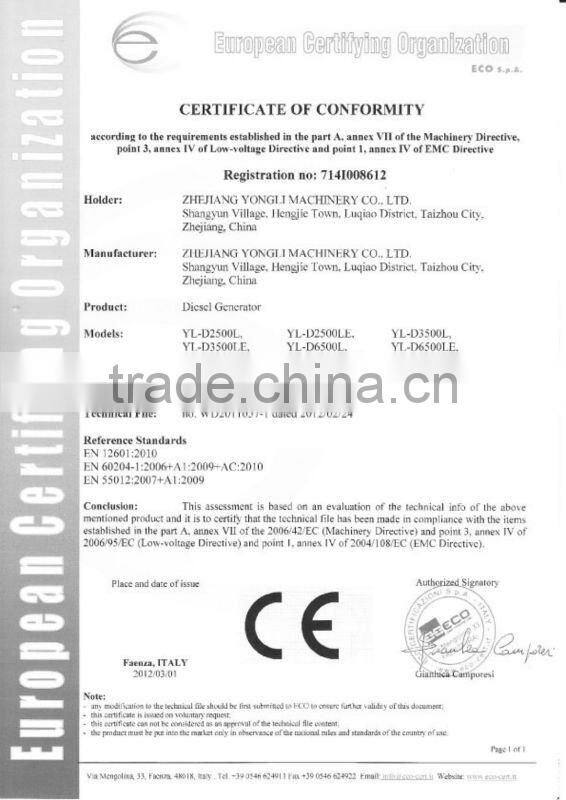

Diesel engine drawing and CE certificated
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2010
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
