Home > Products > Diesel Engine > 10HP, Air-cooled Kama Diesel Engine ,small Diesel Engine (186FA)

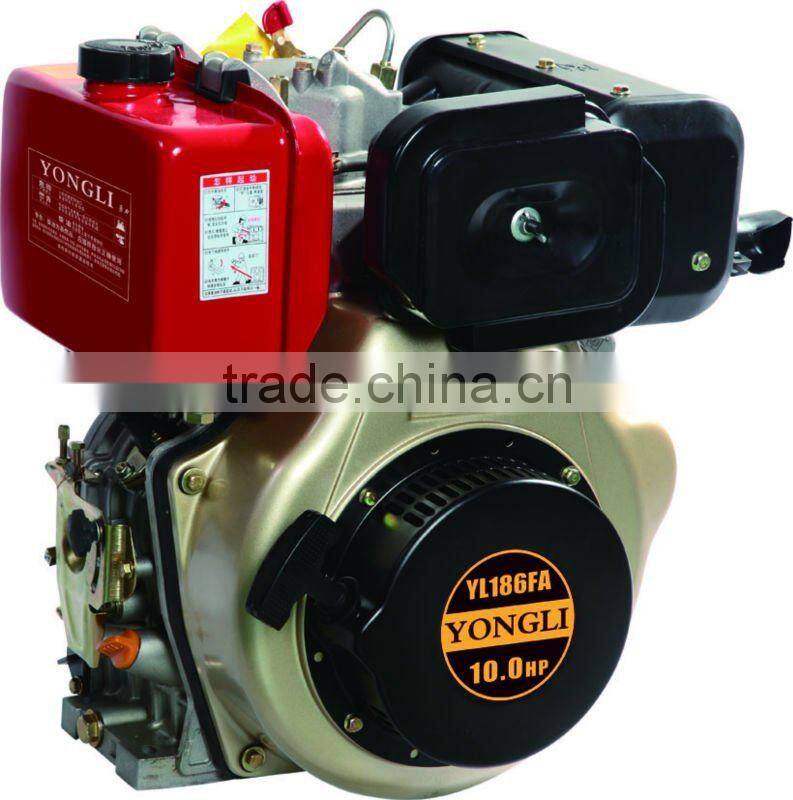

10HP, Air-cooled Kama Diesel Engine ,small Diesel Engine (186FA)
Negotiable
/ Set
20 Sets(Min. Order)
- Ningbo/shanghai
- T/T
You May Like
-
7HP ,Air-cooled,four-stroke,diesel Engine (178F)
-
Air-cooled,four-stroke Swirl Chamber Small Diesel Engine (3.5HP,4.5HP)
-
Air-cooled Kama Diesel Engine ,small Diesel Engine(YL170F)
-
Air-cooled Kama Diesel Engine,small Diesel Engine (12HP)
-
Kerosene Power Sprayer Diesel Power Sprayer
-
Air-cooled 168F(3.5HP) Small Diesel Engine (new Type)
Product Details
| Usage | Other, Water pump | Fuel | Diesel | |
| Stroke | 4 Stroke | Cylinder | Single Cylinder | |
| Cold Style | Other, Air-cooled | Start | Kick Start | |
| Place of Origin | Zhejiang, China | Brand Name | YOLEE | |
| Model Number | YL186F |
Product Description
Specifications
Diesel EngineModle: YL186FA 10HP
Strong Power, Fast Actuate
Light Weight, High Quality
Low Fuel, Low Vibration
| Model | 186FA |
| Cooling method | Air-cooled |
| Type | Single cylinder, Vertical, Fourstroke, Direct injection |
| Bore× Stroke(mm) | 86*72 |
| Displacement(ML) | 418 |
| Compression ratio | 19: 1 |
| Engine Speed | 3000/3600 |
| Rated power(kw/rpm) | 5.7/3000 6.3/3600 |
| Max Power(kw/rpm) | 7.75/3000 8.57/3600 |
| Fuel | 0#or-10# light diesel oil |
| Fuel tank capacity(L) | 5.5 |
| Fuel consumption Rate(g/kw. h) | ≤ 280 |
| Lub-oil capacity(L) | 1.65 |
| Lubricating method | Pressure and splash combined |
| Crankshaft Direction | Clockwise from flywheel end |
| Starting method | Recoil manual start or electric start |
| Overall dimensions(L× W× H) (mm) | 500× 475× 550 |
| Dry weight(kg) | 48(recoil) 53(electric) |
