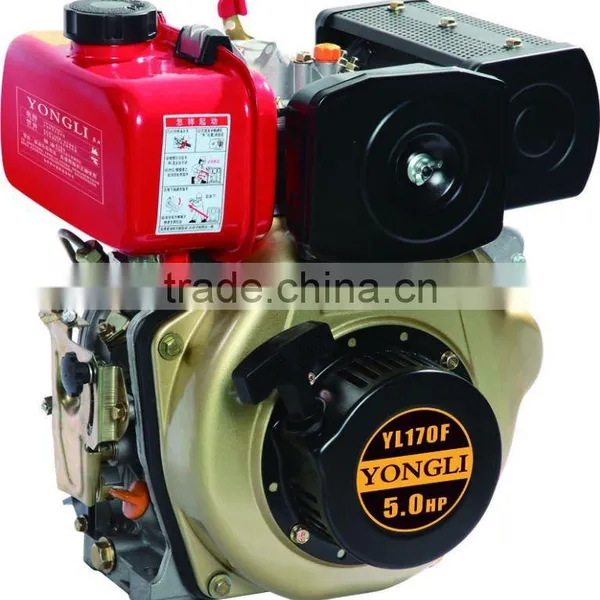

Air-cooled Kama Diesel Engine ,small Diesel Engine(YL170F)

Air-cooled Kama Diesel Engine ,small Diesel Engine(YL170F) thumbnail-1
Air-cooled Kama Diesel Engine ,small Diesel Engine(YL170F) photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Other, Pump set
Fuel:
Diesel
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Zhejiang Yongli Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Other, Pump set
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Kick Start
Place of Origin Zhejiang, China
Brand Name YOLEE
Model Number YL170F

Specifications

Diesel Engine Modle: 170F (5hp)
Strong Power, Fast Actuate
Light Weight, High Quality
Low Fuel, Low Vibration
CE, ISO9001

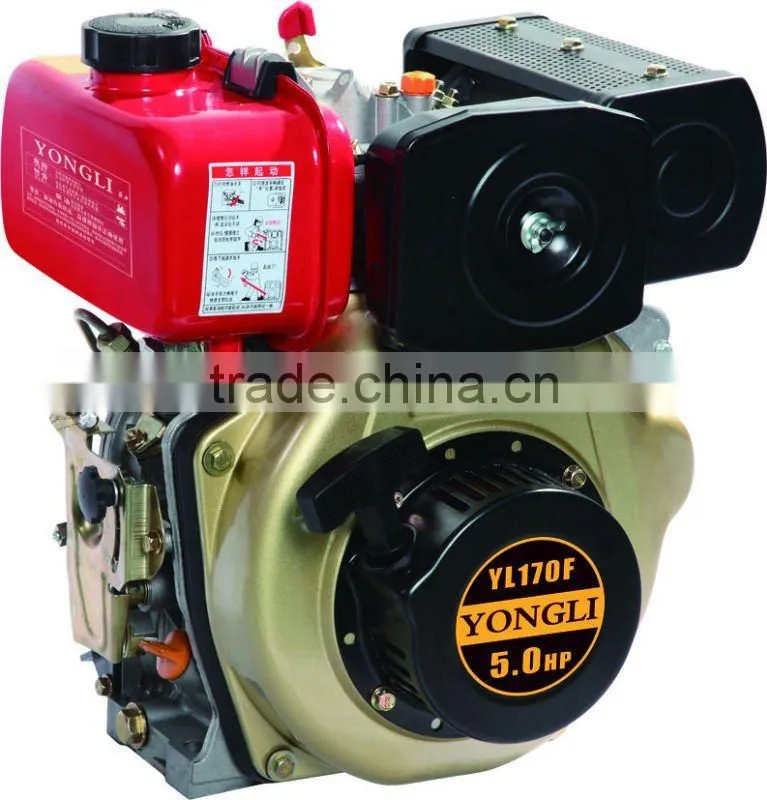

Air-cooled Kama diesel engine ,small diesel engine(YL170F)



Kama Diesel Engine Modle: YL170F
5HP Diesel engine

1) Adopt 4-Stoke, air cooled, single cylinder engine;
2) Close in structure, simple in operation and covenievent in takeing or bringing;
3) Easy start system with low fuel consumption
4) CE & ISO9001 approved
5) Warranty will be one year from the shipping date

Model YL170F
Cooling method Air-cooled
Type Single  cylinder, Vertical, Four stroke, Direct  injection
Bore× Stroke(mm) 70*55
Displacement(ML) 211
Compression ratio 20± 1
Engine Speed 3600rpm
Rated  power(kw/rpm) 2.8/3600
Max  Power(kw/rpm) 3.8/3600
Fuel 0#or-10# light diesel oil
Fuel tank capacity(L) 2.5
Fuel consumption Rate(g/kw. h) 280
Lub-oil  capacity(L) 0.75
Lubricating method Pressure  and  splash  combined
Crankshaft Direction Clockwise from flywheel end
Starting method Recoil  manual  start  or  electric  start
Overall dimensions(L× W× H)    (mm) 330× 376× 415
Dry weight(kg) 27
Air-cooled Kama diesel engine ,small diesel engine(YL170F)Air-cooled Kama diesel engine ,small diesel engine(YL170F)
Diesel engine drawing
Air-cooled Kama diesel engine ,small diesel engine(YL170F)
