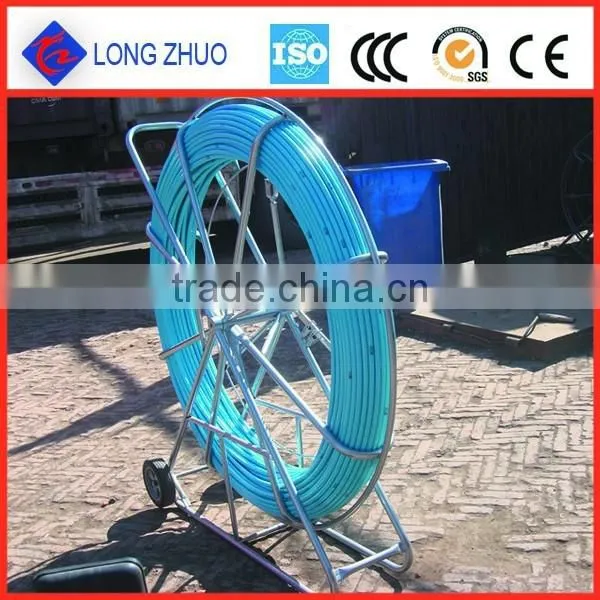

Flexible electric fiberglass continuous rod/Steel frame stand with brake
Fiberglass snake rod
Fiberglass duct rodder flat iron or round tube car fixed,.Not only make the law of fiberglass duct rodder plate in the shelf,also improves the efficiency in construction.
1,Structure:
(1) Outer protect layer are made of high density polyethylene and import material.
(2) Inner Core is E-Glass Fiber.
(3) Rod material is FRPI import solid core material.
(4) There are kinds of colors for the rod to choose.
2,Technical data:
Technical Date of Fiberglass Duct Rodder | |||
Specification | Rod Diameter (mm) | Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 | |
Rod Length (m) | 50m~350m | ||
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | ||
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature | |
Fiber glass rod outer | High Density polyethylene coating | ||
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | ||
Physical Property | Fiber glass content | 75-80% | |
Density | >1.9gr/cm3 | ||
Working environment | -40°C to +80°C | ||
Minimum Pulling strength | 4000N +/-5% | ||
Consistency of rod | 137gr/m | ||
Flexural Modulus | >46.500Mpa | ||
Elongation at break | 2.5-3% | ||
Min Bending Radius | 388mm | ||
3,The advantages:
(1) High tensile strength and bending properties, which make it to go through narrow pipes easily.
(2) Light weight,esistance to acid, aging resistant, corrosion resistant.
(3) Good temperature adaptability, the product will neither soften in hot weather/nor become brittle in cold weather.
(4) It surface has the advantage of smooth, wear-resistant and long service life.
4,If you have some questions
1,Our usual packing material is carton or plastic.While if your order quantity quit considerable,we will adjust according your need.
2,Usually we will delivery the produc 15 days later after your payment.But considering your practical situation,we will make our best to satisfy your request.
3, Whether you have the modle number and the product size we w
Answer: Don't worry.We can make the modle number and the product size you want.
4, Whether the quantity of the order effect our discount ?
Answer: It's sure that your order quantity will effect your discount.Because the more you ordered, we will save more cost,so we could give you the more privilege.
5, If you have any other questions,please contact us coveniently,we will answer your questions as well as quickly. Anyway we will do our best to satisfy consumer's need.

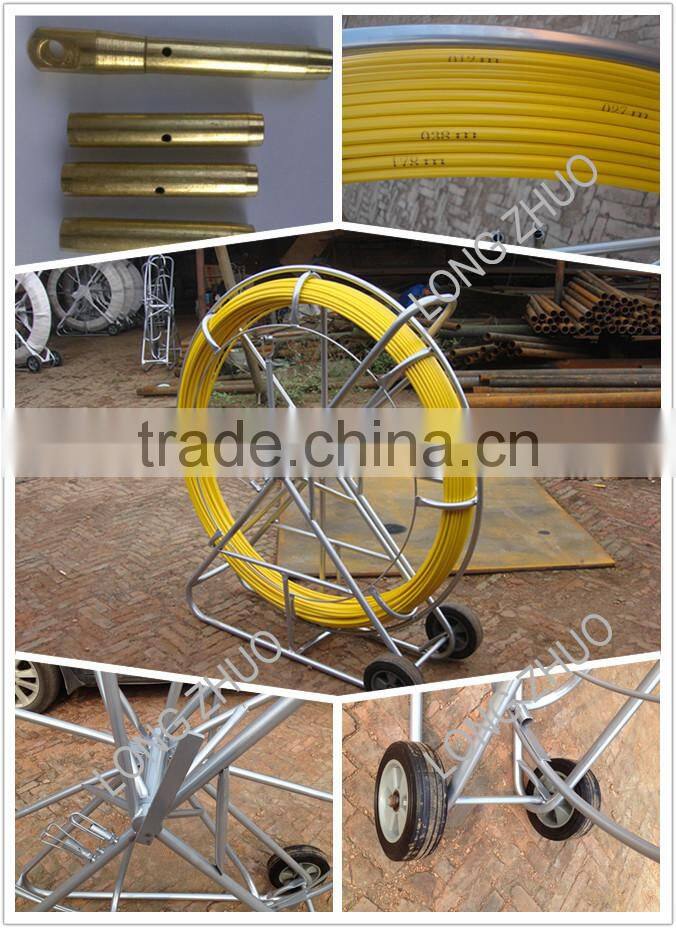

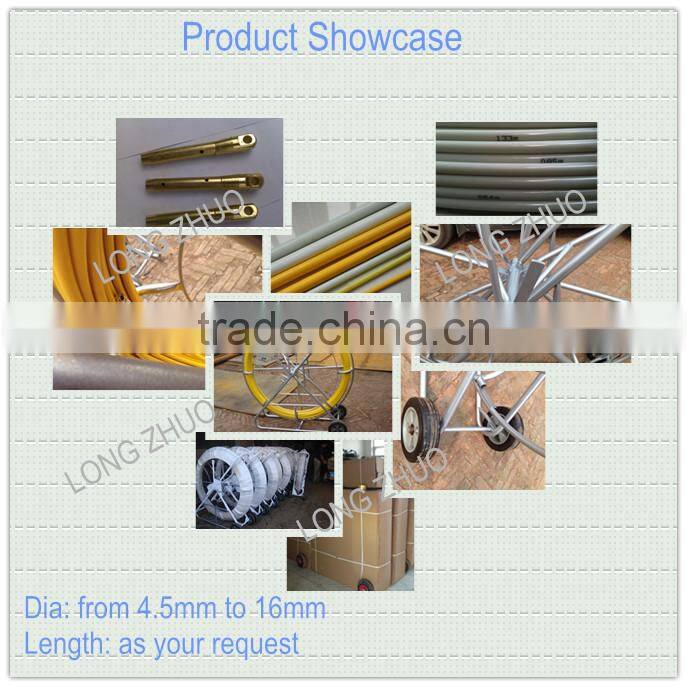

5,Product display:
We are pleasure to provide much more information when you are interested in our products!
Do not hesitate to let me know your question any time!
