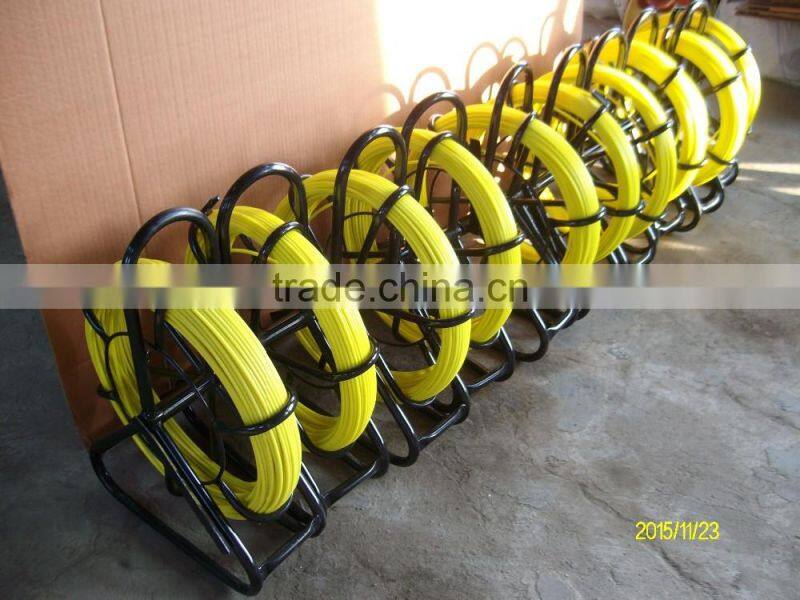

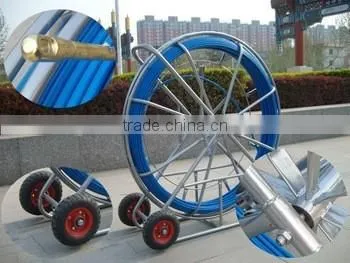

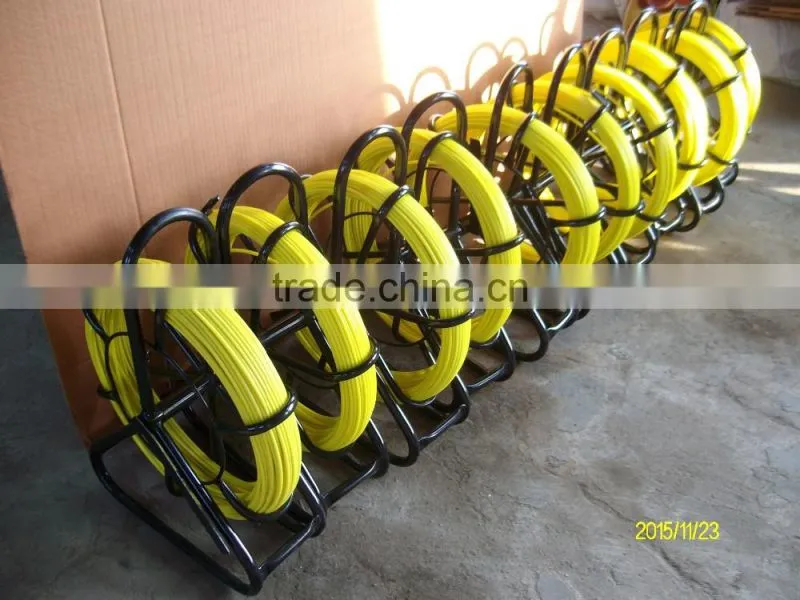

Fiberglass duct rodder/tapered fiberglass rod/cable duct rods
Introduction:
Duct rodders are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature.
It was covered by a high density polyethylene engineering plastic as its protect layer, which make duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, which make them safe for use in cable occupied duct.
Features:
1. Strong non-conductive fiberglass rod construction
2. Stainless steel drawing head
3. For longer conduit runs and underground duct

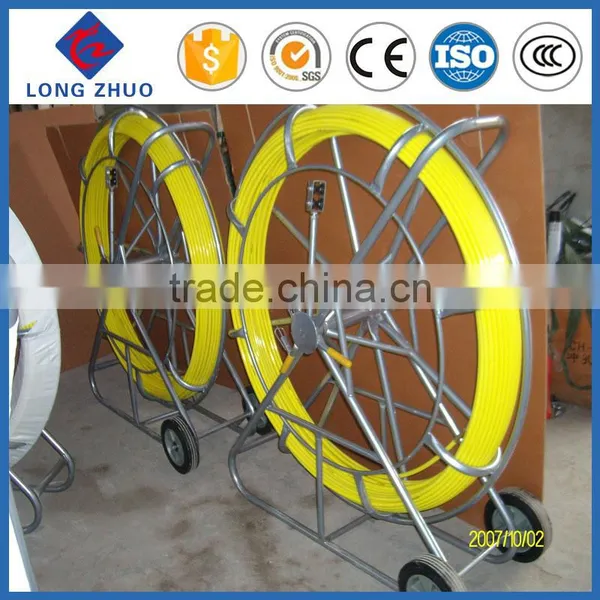

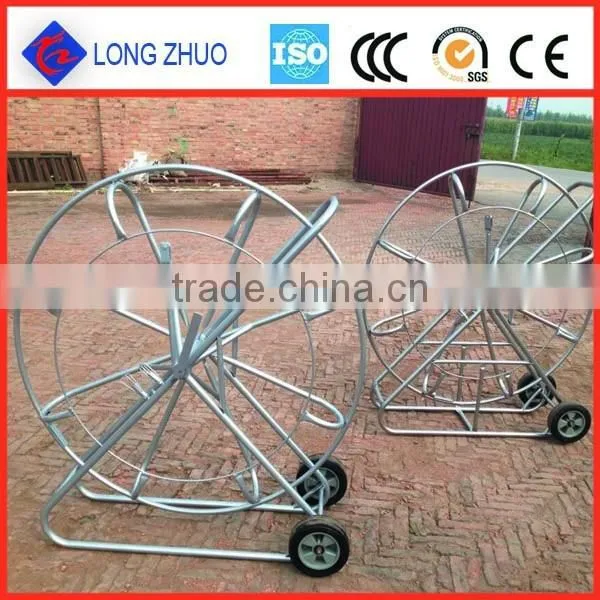

4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
6. Duct rods/duct rodders have many applications which is not only pulling the cable but also pulling electric tools and its repair is very easy and available.
Technical Data:

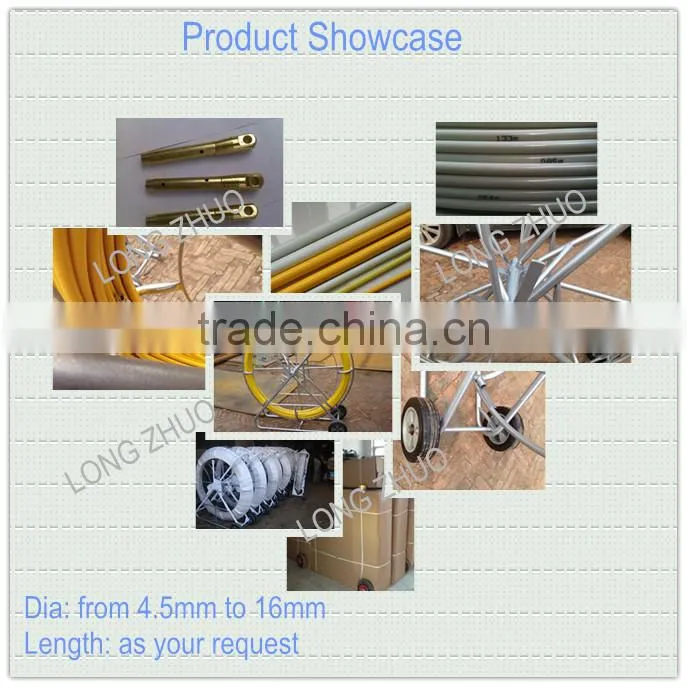

Glass fiber rod diameter | Φ4.5-16mm |
Length | 10-500m |
Working temperature | -40+80degree |
Min Bend Radius | 295mm |
Breaking tension | 4.5T |
Glassfiber density | 150g/m |
(1). Glass Reinforced Composite Core
General properties
Property | Value |
Keinforcement | E-glass fiber |
Glass Content of Inner Part | 75-80% |
Material of Pulling Rod | Epoxy fiber glass(inner) high density polyethylene(outer) |
Density | >1.9gr/cm3 |
Diameter Tolerance | +/-0.1mm |
Work Situation Temperature | -40°C to +80°C |
Mechanical properties
Property | Value |
Minimum Pulling Strength | 4000 N+/-5% |
Tensile Modulus | >30000Mpa |
Consistency of Rod | 150gr/m +/-5% |
Flexural Modulus | >30000M pa |
Elongation at Break | 2.5-3% |
(2). Polyethylene Cover Material:
High density polyethylene resin for the insulating and jacketing of telecommunications cables.
Property | Value |
Tensile strength | >15N/mm2 |
Environmental Stress & Crack Resistance | >1000 hr. |
Heat Stability | OK. |
Carbon Black | OK. |
Applications:
This kind of products can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.
When using draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline.
When cleaning, guide head will drive cleaning tools to clean the pipe; When arranges the cable,
you may first leads the steel wire or the iron wire, then enters the pipe with the steel wire or the iron wire hauling cable.
Packaging&Shipping

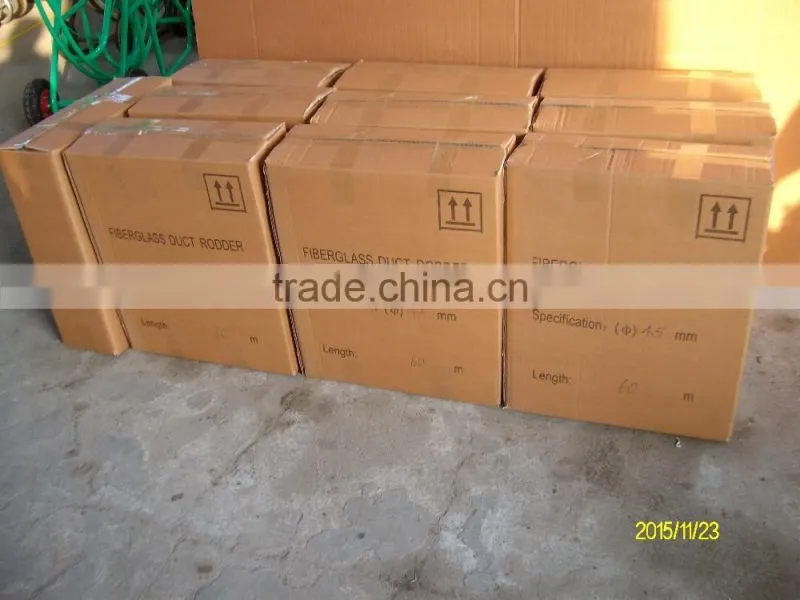

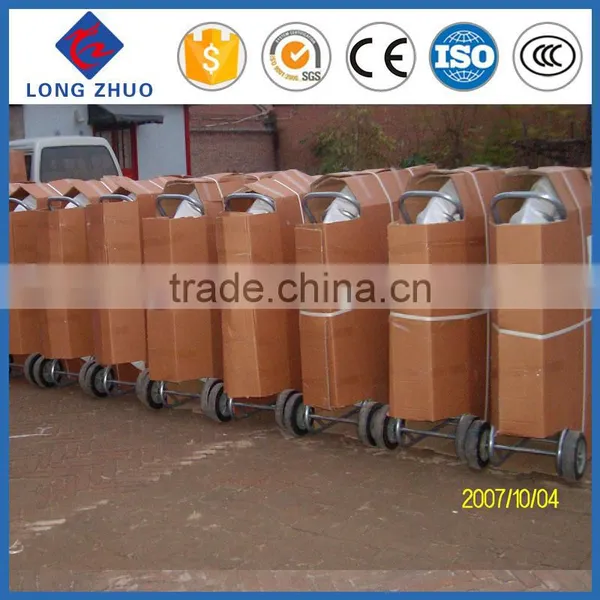

Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your request
Delivery Detail: duct rodder can be ship within 15days after recieve your deposit
