Cable push rod/Fiberglass reinforced plastic duct rod
Our comprehensive line of rodders will handle any job from running long distance copper, coax or fiber optic cable to pushing a sonde through conduit or pipe.
Features :
1.Core of the rod is made of E-glass fiber, so it has a good flexibility and not easy to break . The high quality material make the
duct rodder has exceptional bending strength for maneuvering tight turns.
2. Fiberglass core is coated with high quality ABS resin to protect against rod abrasion and reduce friction. Non-conductive and will not kink. And there are various colors for the coating, such as red, yellow, blue, orange, white etc.

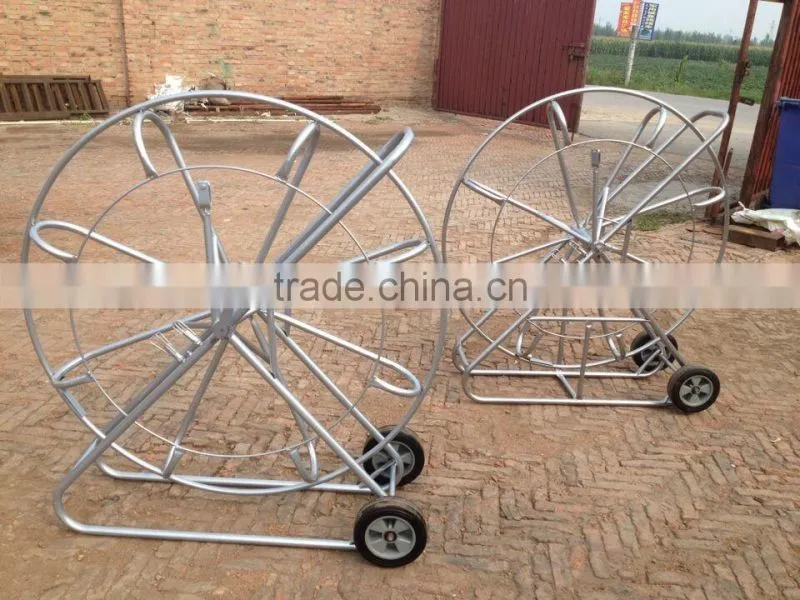

3. We use the reinforced reel and the wall thickness is about 2.5mm. What’s more, the big reel have brake and wheels. The wheels are made of the good quality rubber, so they are wear-resisting.
Specification
Diameter of the Rod :4.5mm,6mm,8mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm
Length: 50-350m
Detail Chart
Technical Date of Fiberglass Duct Rodder | |||
Specification | Rod Diameter (mm) | Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 | |
Rod Length (m) | 50m~350m | ||
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | ||
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature | |
Fiber glass rod outer | High Density polyethylene coating | ||
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | ||
Physical Property | Fiber glass content | 75-80% | |
Density | >1.9gr/cm3 | ||
Working environment | -40°C to +80°C | ||
Minimum Pulling strength | 4000N +/-5% | ||
Consistency of rod | 137gr/m | ||
Flexural Modulus | >46.500Mpa | ||
Elongation at break | 2.5-3% | ||
Min Bending Radius | 388mm | ||

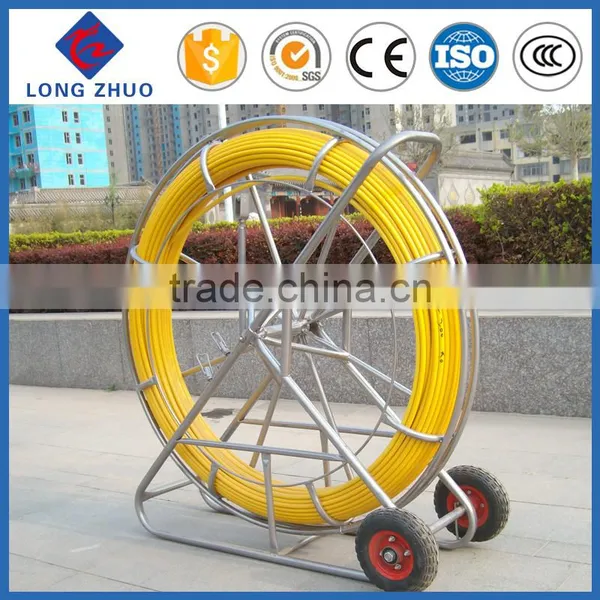

Product Show:
Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your reques.
Delivery Detail: duct rodder can be ship within 15days after recieve your deposit.
What can we do?
Inquiry response: Your inquiries will be replied 24 hours.
Sample support: Two free sample are available in 5-7days.
product recommendation: give you most appropriate recommendations about our product.
according your need.
Why choose us?
1. Professional
2. Highest quality
3. Most competitive price
We promise that we would provide the most qualified products with most favorable price.
Please feel free to contact me if you are interested.
Look forward to contacting us and wish we could reach a deal ASAP.
Attention:
All the listed price is reference ,for latest price please contact directly
