FRP Duct Rodder/Portable Cable Laying Machine

Name: FRP Duct Rodder/Portable Cable Laying Machine
Brand: Long Zhuo
SKU: 140878332
Availability: InStock

Hebei Long Zhuo Trade Co., Ltd.

US$ 60 - 350 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Long Zhuo

Model Number:

FDR

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Long Zhuo

Model Number FDR

Application Cable laying tools, Commincation and drain cleaner and electric power pull

Surface Treatment Exterior coating

Technique Extrusion, Pultrusion

Dimensions 4.5mm-16mm

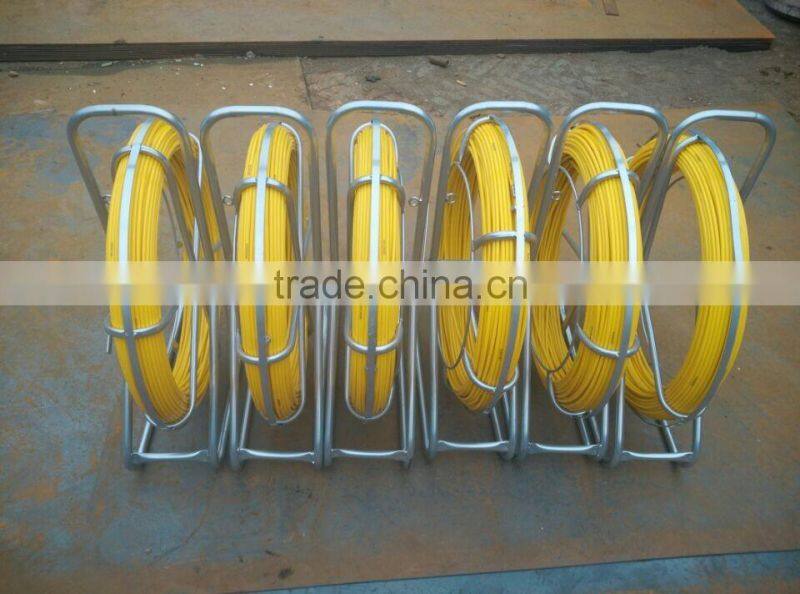

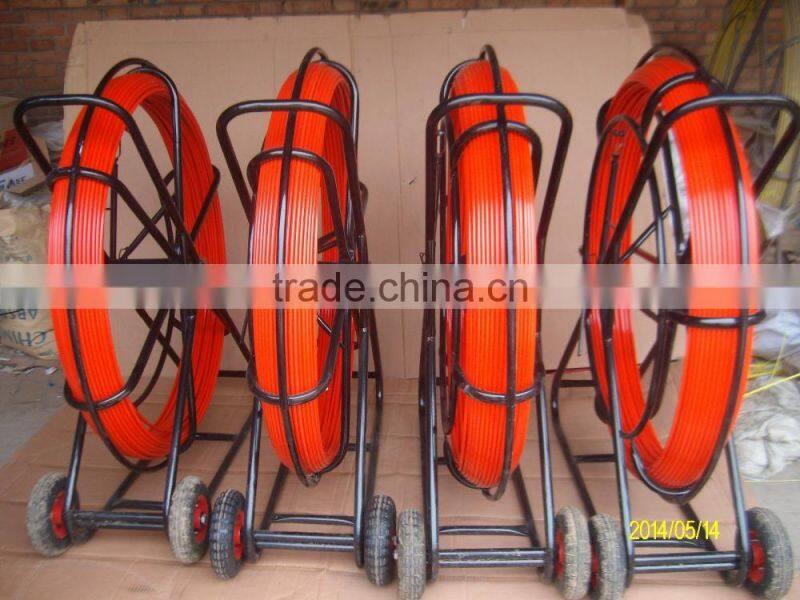

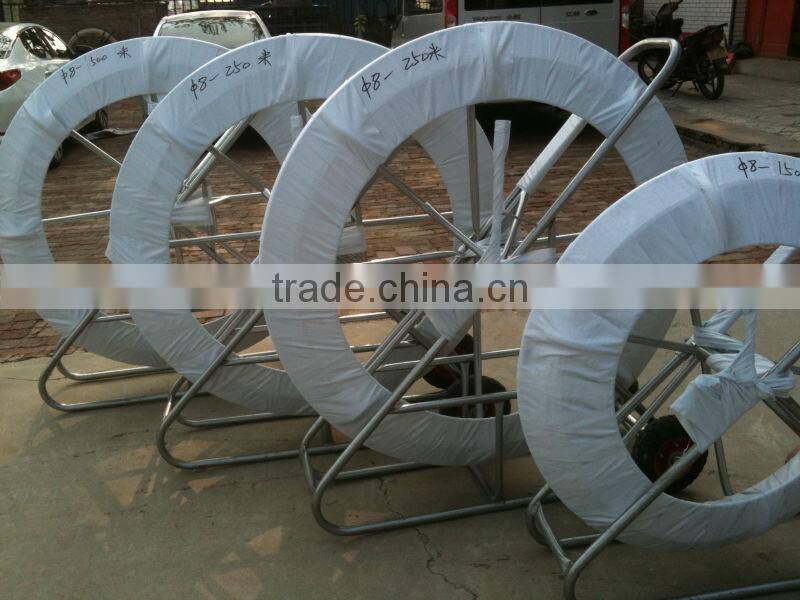

FRP duct rodder/Portable cable laying machine

Duct Rodder applies in tow lead rope through a pipe and it is auxiliary means. Because of its surface smooth and high

resilience, so the FRP perforator with ease passes the narrow channel. The duct rodder consists of two parts: the Epoxy

glass fiber strengthen inner and the high density polyethylene protective layer (smooth and firm which can resist the

adverse circumstance). It has the advantages of time saving, reducing effort, improving efficiency etc.

And this kind of products can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put. When

using draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline. When cleaning,

guide head will drive cleaning tools to clean the pipe; When arranges the cable, you may first leads the steel wire or the iron

wire, then enters the pipe with the steel wire or the iron wire hauling cable.

Fiberglass duct rodder specification(We can customized according to your requirement)

Technical Date of Fiberglass Duct Rodder
Specification	Rod Diameter (mm)	Φ 4.5,Φ 5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16
	Rod Length (m)	30m~350m
	Frame Spec. (mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400
Material:	Fiber glass rod inner,	Extruded by fiber glass and high strength resin at high temperature
	Fiber glass rod outer	High Density polyethylene coating
	Metal Frame	Steel with high-temperature sprayed plastic or hot dip galvanized
Physical Property	Fiber glass content	75-80%
	Density	> 1.9gr/cm3
	Working environment	-40° C to +80° C
	Minimum Pulling strength	4000N +/-5%
	Consistency of rod	137gr/m
	Flexural Modulus	> 46.500Mpa
	Elongation at break	2.5-3%
	Min Bending Radius	388mm
