Large volume GRP water tank/SMC water tank used in farm land

SMC module water tank is a new type water tank after the development of reinforced concrete water tank , steel plate water tank, stainless steel water tank.SMC water tank combined with the SMC molding panel, sealing materials, metal structure and piping system to onsite assemble together.

1. SMC Water Tank Features and structure

1)  Strong resistance to corrosion.

6)  Clean, bright, beautiful appearance.

3. SMC water tank panels size picture

4.Accessories and specifications

1) Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod

2) Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience

and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3) Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in

contact with water internally are hot dipped galvanized steel or stainless steel 304

4) Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304

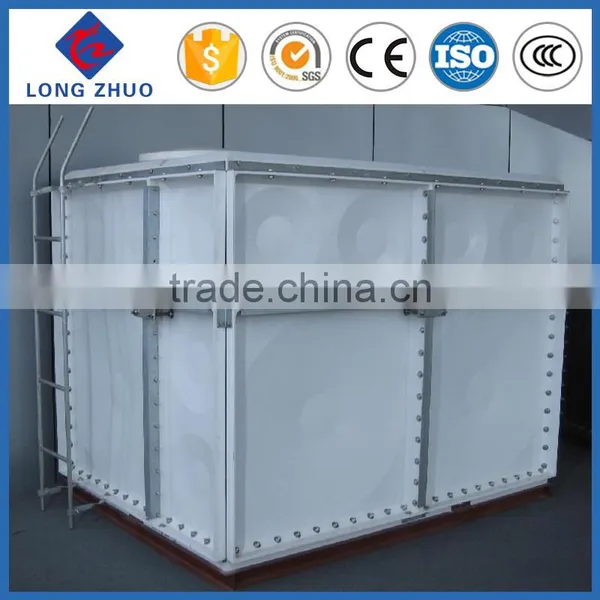

5) Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same

with the supports. The external ladders shall be galvanized mild steel or equivalent

6) Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The

concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7) Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter

8) Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of:

600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement

9) ABS roof vent with PE insect screen

10) Float level indicator, optional SS304 for internal and external support structure are available on request.

5.SMC water tank setup

All panels can be lifted by hand, with no special equipment required even where access is difficult, and installation can

progress quickly and efficiently.

Step 1. Install steel footings on leveled concrete foundations.

Step 2. Align galvanized steel panels to be pre-assembled.

Step 3. Place rubber sealant from ready-to-use roll between panels.

Step 4. Connect panels with bolts and nuts.

Step 5. Position bottom panel sections, and finish up base of tank.

Step 6. Position three sides of the tank.

Step 7. Position and fix roof panels and if required, roof support pipes and plates.

Step 8. Install reinforcement if required.

Step 9. Close up the tank with the fourth side.

Step 10. Finish the internal or external reinforcement.

Step 11. Fill and test.

1.Life and fire fighting water supply system.

• We can promise you a short lead time ( 10-15days )
• We have factory and can offer you direct price
• We have 10 yeas experiences
• We have good after-sale service offered, please get back if you got question.
• We have well trained&experienced staff to answer all your enquiries in English of course.
• Your business relationship with us will be confidential to any third party.
• Every year we export containers all over the world. With our good quality products at competitive price and our professional.
