High efficiency film coating machine
USES:
The series high efficient nonporous coating machine is Chinese and western medicine, tablet, pill, micro pill, pellet, water pills, dropping pill, particle pellet package such as sugar, organic film dress, water soluble film gentle, controlled release coating of a kind of high efficiency, energy saving, safe, clean and conform to GMP requirements of the electromechanical integration equipment.Is the new technology of domestic drug production through the drug coating, ensuring the quality of medicines and valid for use.

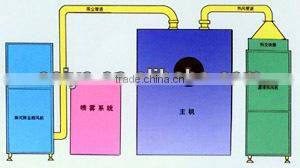

Working principle:
Element core (micro pill, pellet or tablet, etc.) in clean, closed rotating drum inner streamlined guide plate under the action of a complex track exercise, according to the technical parameters of automatic spraying dressings, at the same time under the negative pressure condition, the hot air from the center of the cylinder gas distribution pipe on one side of the import, clean hot air core layer by the embedded element by element with holes in the core duck bill, the wind blade to the other side of the gas distribution pipe discharge, make the spray coating on the surface of the element in the core of medium to get fast, uniform drying, to form a layer on the surface of core solid, dense, smooth, smooth the surface of the film.
The main technical parameters:
model |
SYB400 |
SYB800 |
SYB1000 |
SYB1250 |
Coating pot diameter |
400mm |
800mm |
1000mm |
1250mm |
Production capacity |
3-5kg/time |
30-50kg/time |
50-70.kg/time |
80-80.kg/time |
The wind temperature adjusting range |
The normal temperature -110 |
The normal temperature -110 |
The normal temperature -110 |
The normal temperature -110 |
Pot body rotation speed |
0-46r/min |
0-40r/min |
0-32r/min |
0-28r/min |
Main motor power |
0.55kw |
1.1kw |
1.5kw |
2.2kw |
For the fan power |
0.04kw |
0.75kw |
0.75kw |
0.75kw |
Heating power |
0.6kw |
3kw |
3.5kw |
3.5kw |
Exhaust fan power |
0.1kw |
1.5kw |
1.5kw |
2.2kw |
lighting |
18W |
18W |
20W |
20W |
The host dimension |
800 * 800 * 1200mm |
1000 * 1000 * 1300mm |
1200 * 1200 * 1450mm |
1350 * 1350 * 1600mm |
